MagnaFlow Exhaust Products 19383 - xMOD Series Carbon Fiber Tips Cat-Back System
Couldn't load pickup availability

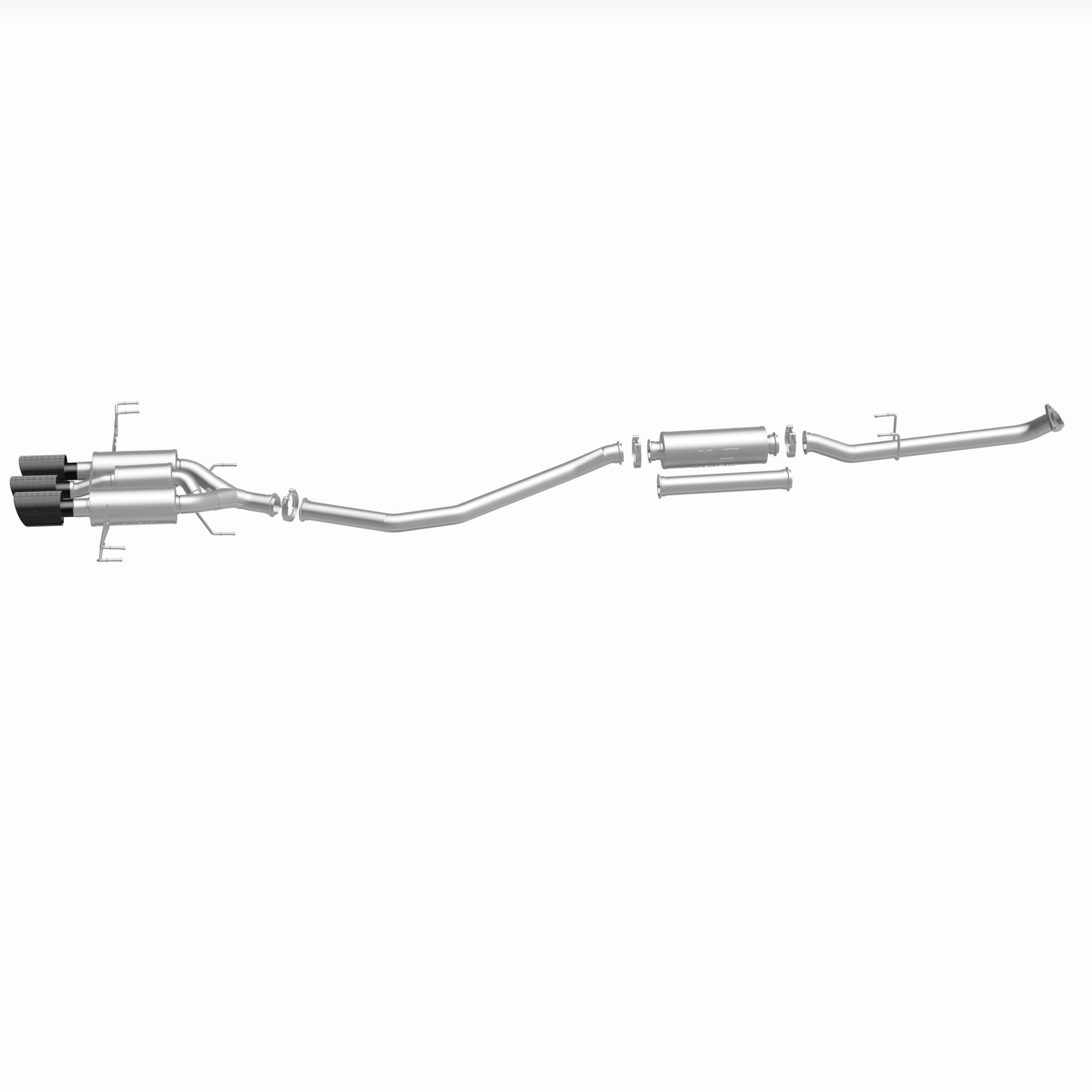

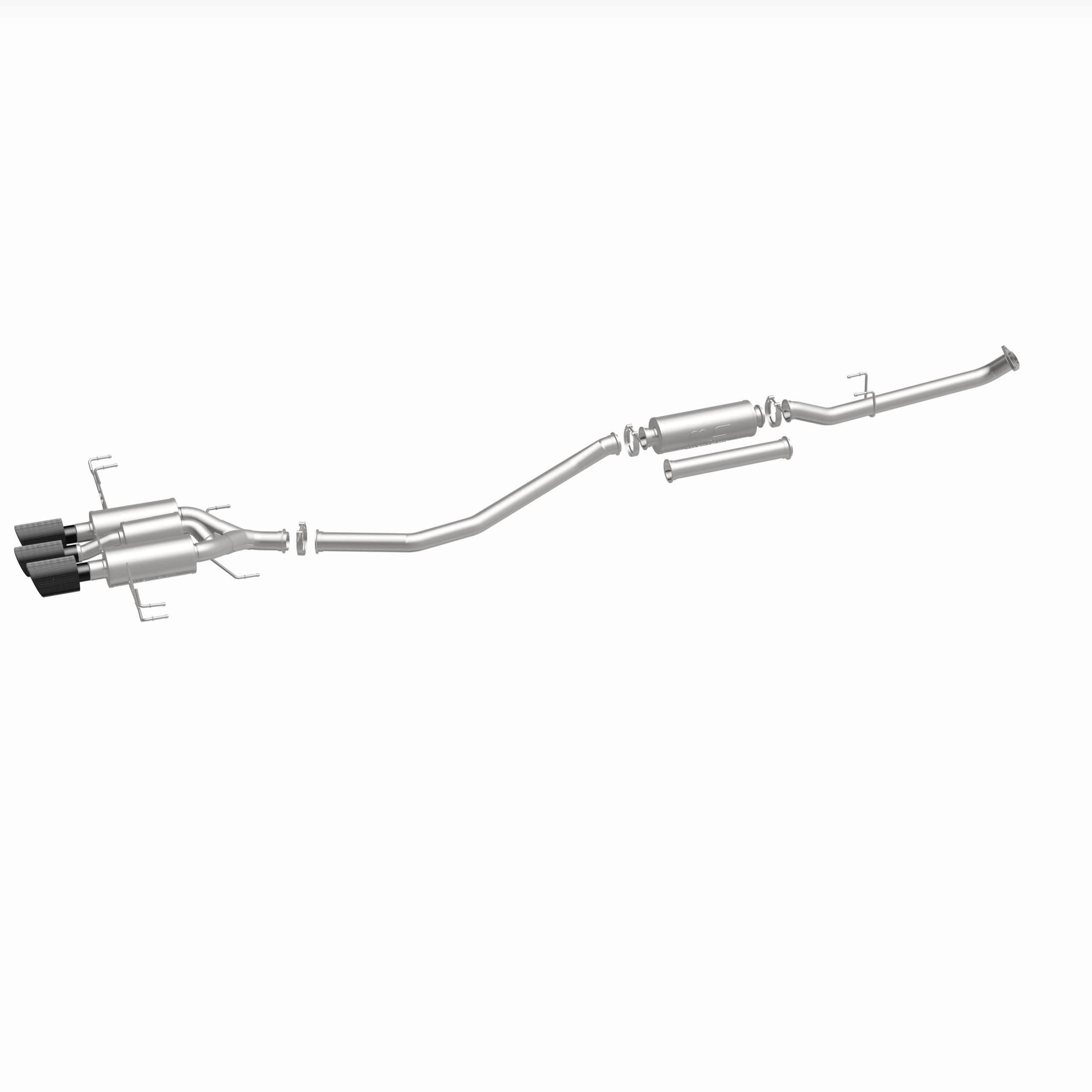

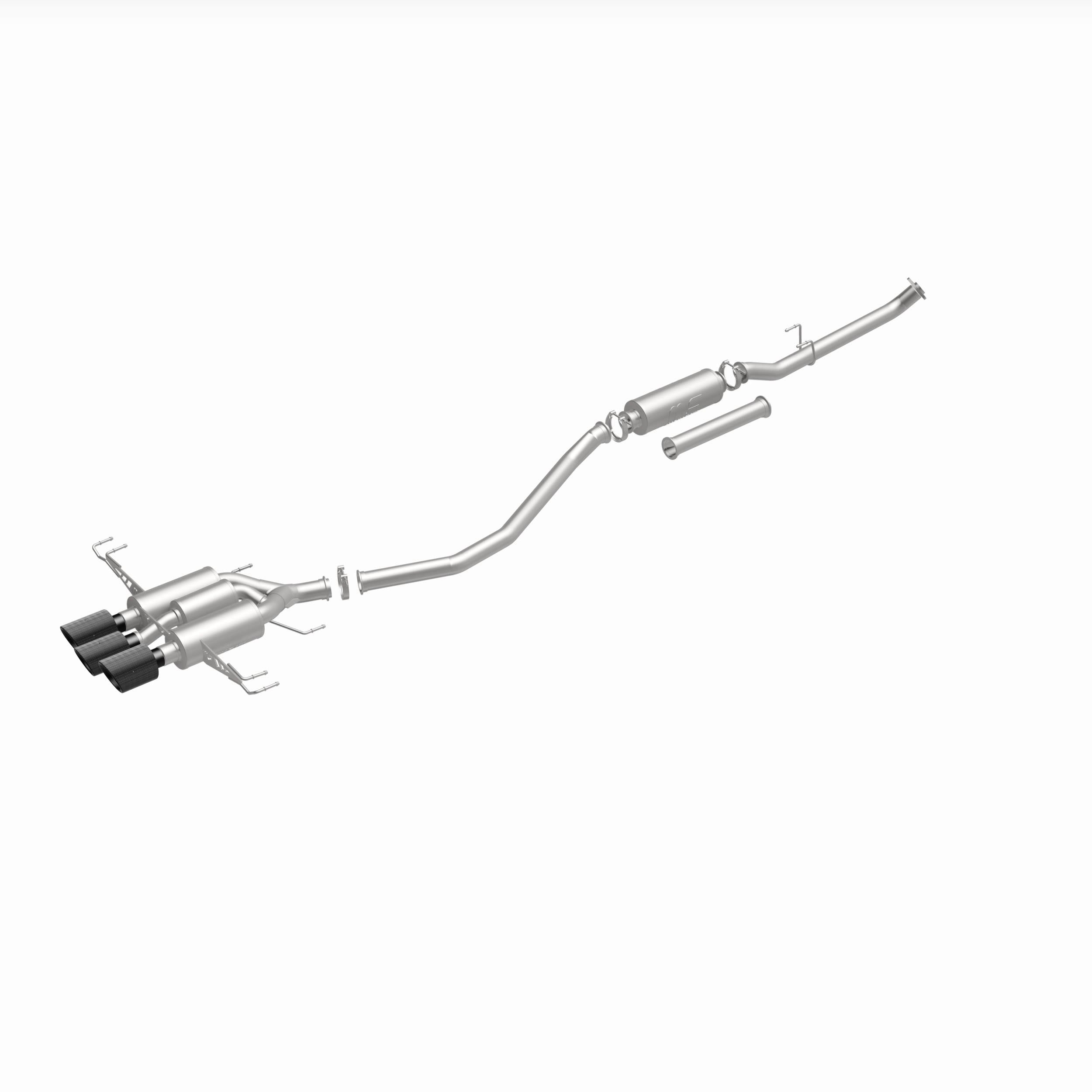

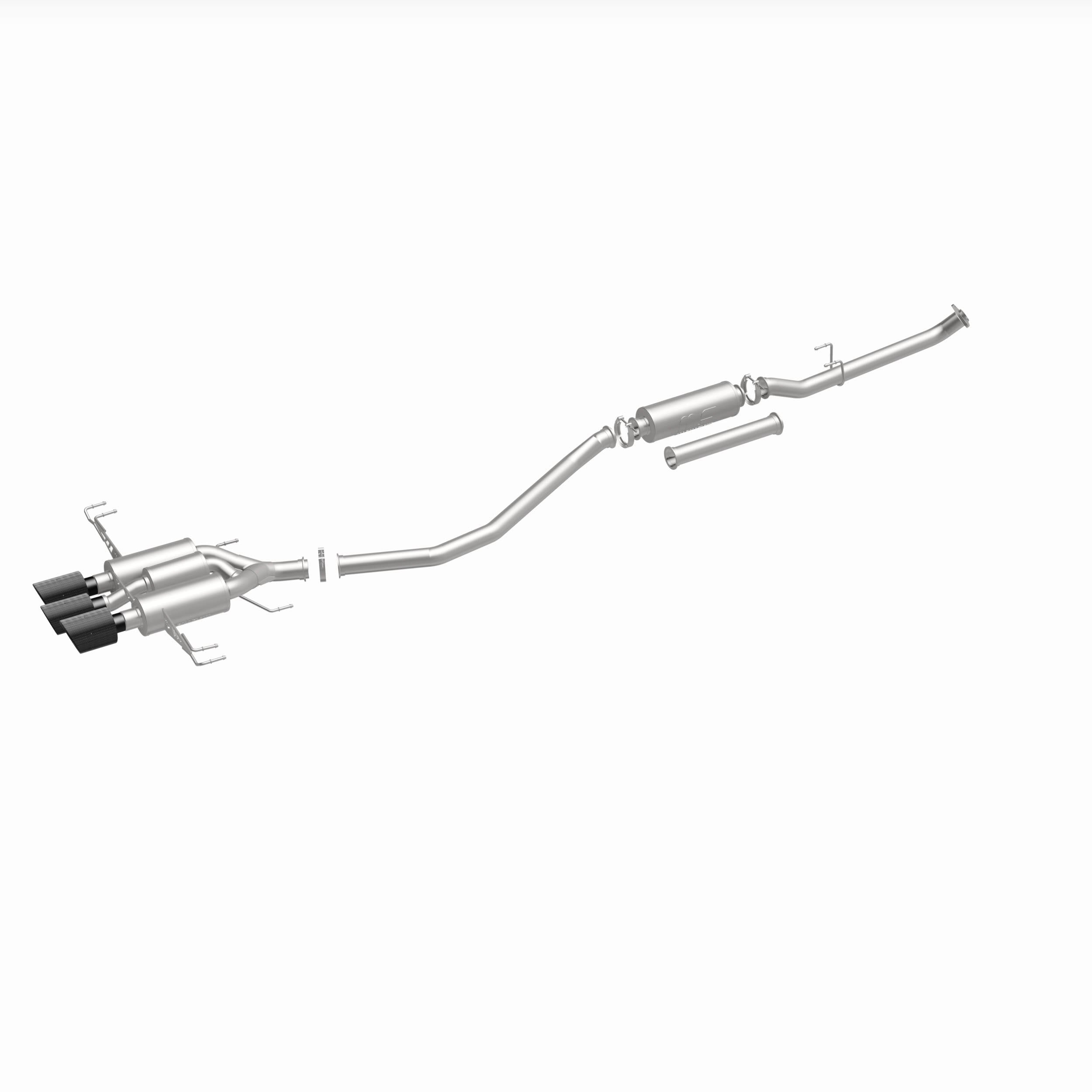

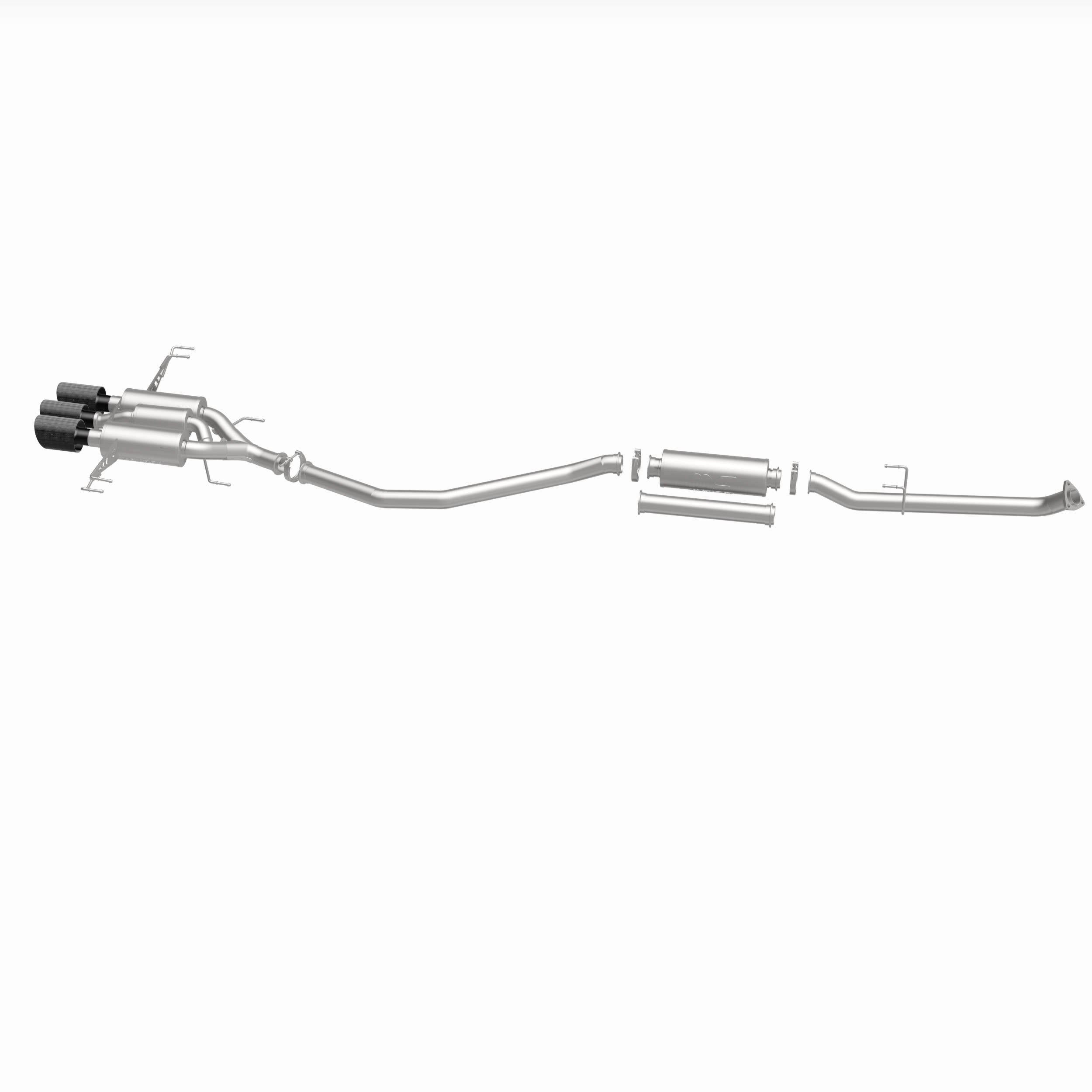

Magnaflow xMOD Series Carbon Fiber Tips Cat-Back System
The MagnaFlow Honda Civic Type R xMOD Series Performance Exhaust System #19383 brings the cutting-edge modularity of our xMOD Series to one of America’s most popular vehicles. This cat-back exhaust kit is designed to enhance your 2.0L 2017-2021 Honda Civic with dyno-proven performance made possible thanks to fast-flowing mandrel bent 2.5” diameter piping that passes through three straight-through mufflers and one multi-chamber muffler, ending in a triple center rear exit with 4.5” flanking carbon tips and a 4” center carbon tip. The direct-fit design replaces all OEM exhaust components from near the catalytic converter on back. Exhaust system #19383 is engineered to allow your Honda Civic Type R exhaust note to be tailored to your liking by choosing between the easily swappable muffler or straight pipe modules, each secured using racing bred V-band clamps. #19383’s direct-fit design makes installation a breeze thanks to the use of advanced 3D scanning during development. This performance exhaust system is made of 100% durable and corrosion-resistant stainless steel and produced using CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime construction warranty. Please check to ensure compliance with local noise regulations.
Features & Benefits
- No-Drone-Technology allows for a quiet cabin
- Configurable sound from mild to wild
- xTreme Delete Modules for a straight-pipe setup
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Carbon Fiber |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Material | Carbon Fiber |
| Exhaust Tip Quantity | 3 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Triple Center Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 5 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 5 IN |
| Muffler (Rear Inner) Body Height | 5 IN |
| Muffler (Rear Inner) Body Length | 11 IN |
| Muffler (Rear Inner) Body Width | 5 IN |
| Muffler (Rear Outer) Body Height | 4 IN |
| Muffler (Rear Outer) Body Length | 6 IN |
| Muffler (Rear Outer) Body Width | 4 IN |
| Muffler Body Height Position Front | 5 IN |
| Muffler Body Height Position Rear Inside | 5 IN |
| Muffler Body Height Position Rear Outside | 4 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear Inside | 11 IN |
| Muffler Body Length Position Rear Outside | 6 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 5 IN |
| Muffler Body Width Position Rear Inside | 5 IN |
| Muffler Body Width Position Rear Outside | 4 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 4 |
| Muffler Type | Straight-Through;Multi-Chamber |
| Pipe Material | Stainless Steel |
| Series | xMOD |
| Type | Cat-Back |
| Valve Included | No |
| Exhaust Tip Length | 7.75 IN |
| Exhaust Tip Length | 7.5 IN |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2017-2021 Honda Civic 2.0L xMOD Series Cat-Back Performance Exhaust System 19383 |
| Clamping Type | V Band |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Diameter | 4.5 IN |
Installation Guide: Download PDF
