Grimm Offroad 10013 - Jeep JL/JLU/JT ARB Twin Compressor Mounting Bracket Kit Grimm Offroad

Grimm OffRoad's compact mounting bracket kit solidly mounts ARB's Twin Air Compressor under the hood of your Wrangler JL/JLU, or Gladiator JT.

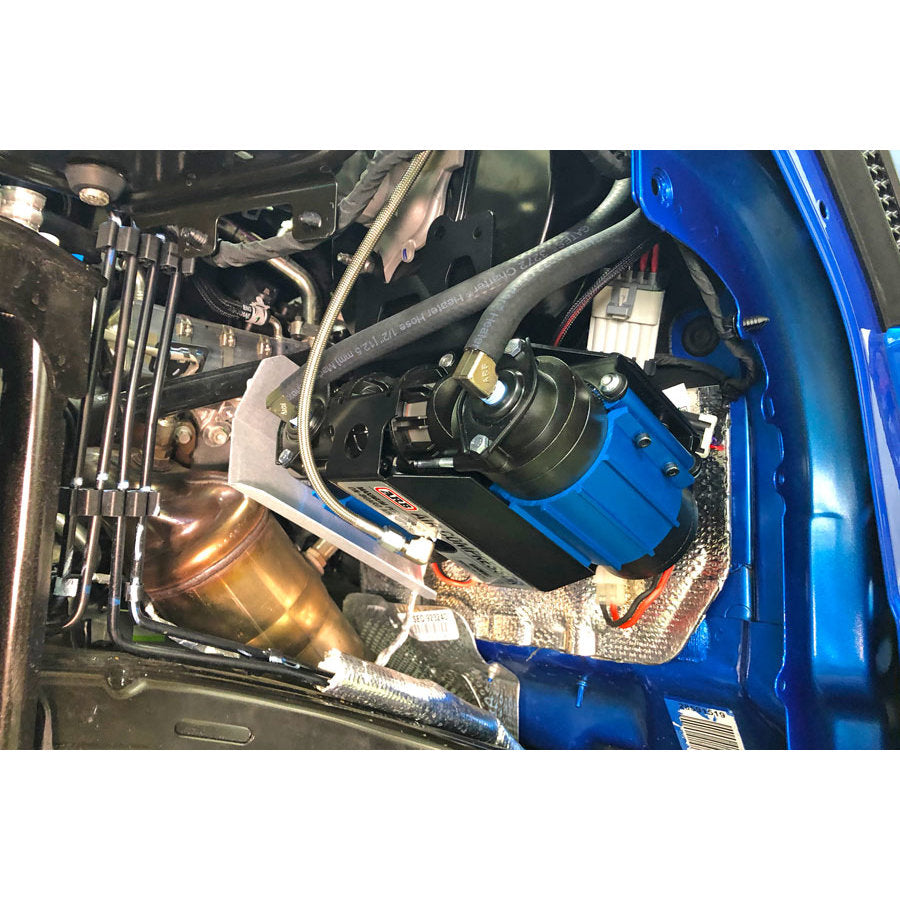

This is the most functional and integrated kit on the market. The included wiring harness allows convenient access to the on/off switch and air chuck on the left front fender and by tucking the air compressor under the brake booster and inside the inner fender, it is kept away from the elements.

The included heat shield protects it from high engine temps while keeping the noise where it belongs: outside.

Highlights:

• Complete bracket kit for exterior mounting of ARB's Twin Compressor
• Mounts one ARB Twin Compressor
• Places compressor in engine bay and relocates filters under hood
• Includes brackets, wiring, hoses, and hardware
• Backed by a limited lifetime warranty
• Made in the USA

Included Parts:

• Controls Plate
• Heat Shield
• Compressor Mounting Plate
• Spacer Plate
• Air Filter Relocation Hose (Long)
• Air Filter Relocation Hose (Short)
• High Pressure Stainless Steel Air Line
• Control Harness
• Air Filter Relocation Fitting
• 2 JIC4 FITTINGS
• 3 M6x1.0 20mm Long Hex Head Bolts
• 5/16 Flat Washer
• M6x1.0 Nylock Flange Nut
• 10 Zip Ties
• ARB Twin Air Compressor Part CKMTA12 (Required)
• 3 Ring Terminal, 6ga, M8 Stud Size (Required)
• 12 Mopar Body Clips 68526185AA (Optional)

Additional Features:

• Easy access for airing up tires or setting up air lockers
• Much quieter than cabin-mounted air compressors
• Precision-cut, high-strength steel mounting brackets
• Aluminum heat shield to protect from high engine temps
• Comprehensive installation components
• Mounts compressor behind LH inner fender liner, away from mud and water
• Relocates compressor intake filters to the top of the engine compartment
• Simplifies ARB wiring harness installation

Fitment:

• Jeep Wrangler JL & JLU
• Jeep Gladiator JT

Fitment Notes:

• Only compatible with ARB's Twin Air Compressor (ARB Part# CKMTA12)
• Mopar Body Clips 68526185AA may be needed when removing fender assembly
• Compatible with Falcon Shocks and Evo Mfg/Rebel Off Road coilover kits (installation may be tricky)
• Not compatible with diesel or 392 models
• Not compatible with 4XE models
• For non-US spec Jeeps, please review the installation instructions linked above and compare to your engine bay to ensure there will be no interference issues. Additional Euro emission controls may interfere with the mounting location of the compressor.

Inner Fender Compatibility List:

• Grimm OffRoad GOR10147 Front Inner Fenders
• Stock Inner Fenders
• Road Armor Stealth Inner Fenders (Current diesel compatible version only)
• Evo Inner Fenders
• DV8 Inner Fenders
