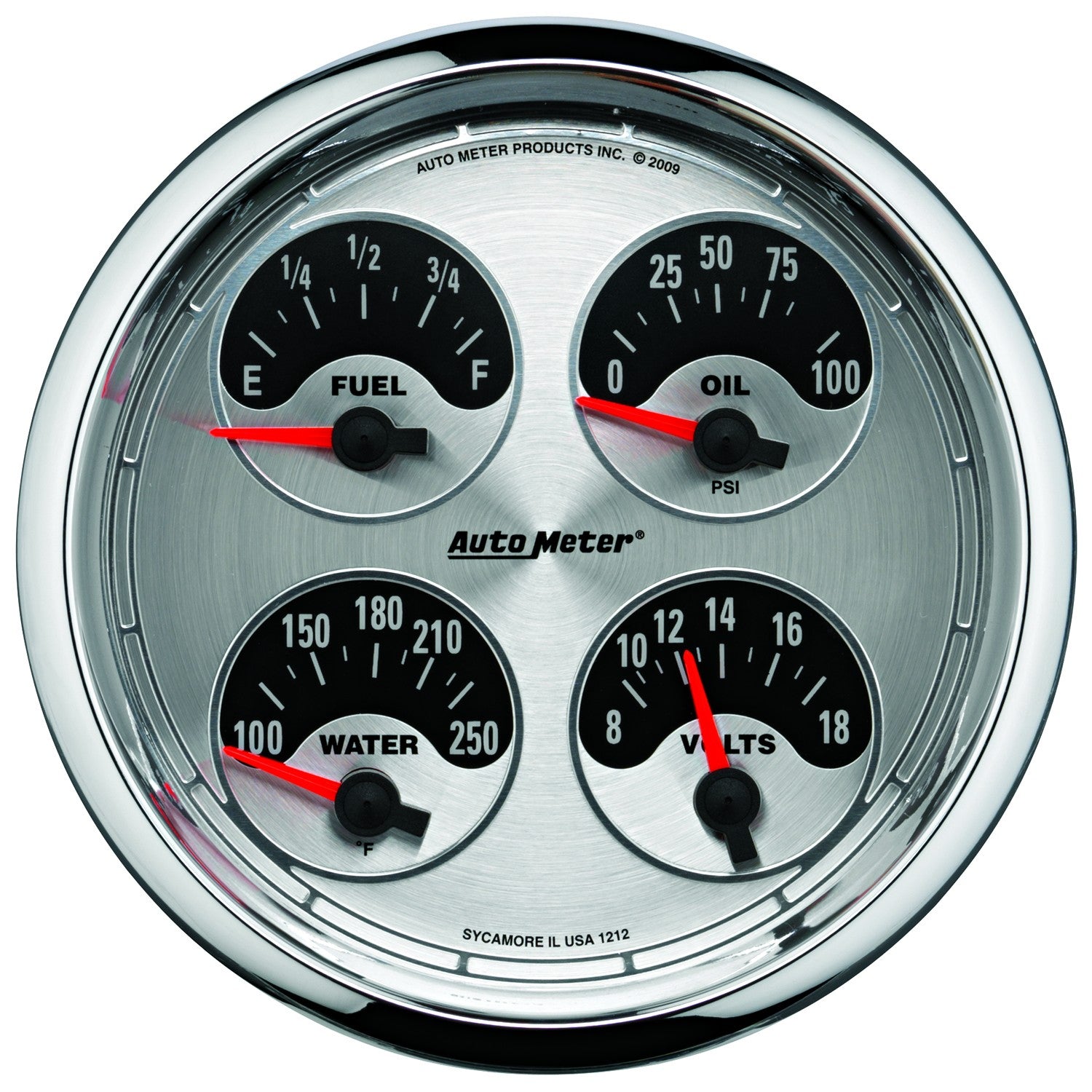

5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/0-90 Ohm, AMERICAN MUSCLE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8β NPT temperature sender and a 1/8β NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60βs through mid 90βs GM fuel level senders).
Features
- Highly polished chrome bezel
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeterβs race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8β NPT pressure sender, 1/4β NPT adapter, 1/8β NPT temperature sender, 3/8β and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Specifications
| Range | 100 PSI/100-250 Β°F/8-18V/0OE-90OF |
| Size - Standard - IN | 5" IN |
| Cross Sell | 9114, 3299, 5284, 9114, 3263, 2343 |
| Upsell | 9114, 3299, 5284, 9114, 3263, 2343 |
| Series | AMERICAN MUSCLE |
| Includes Mounting Hardware | Bracket Included |
| Bezel Color | Chrome |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |

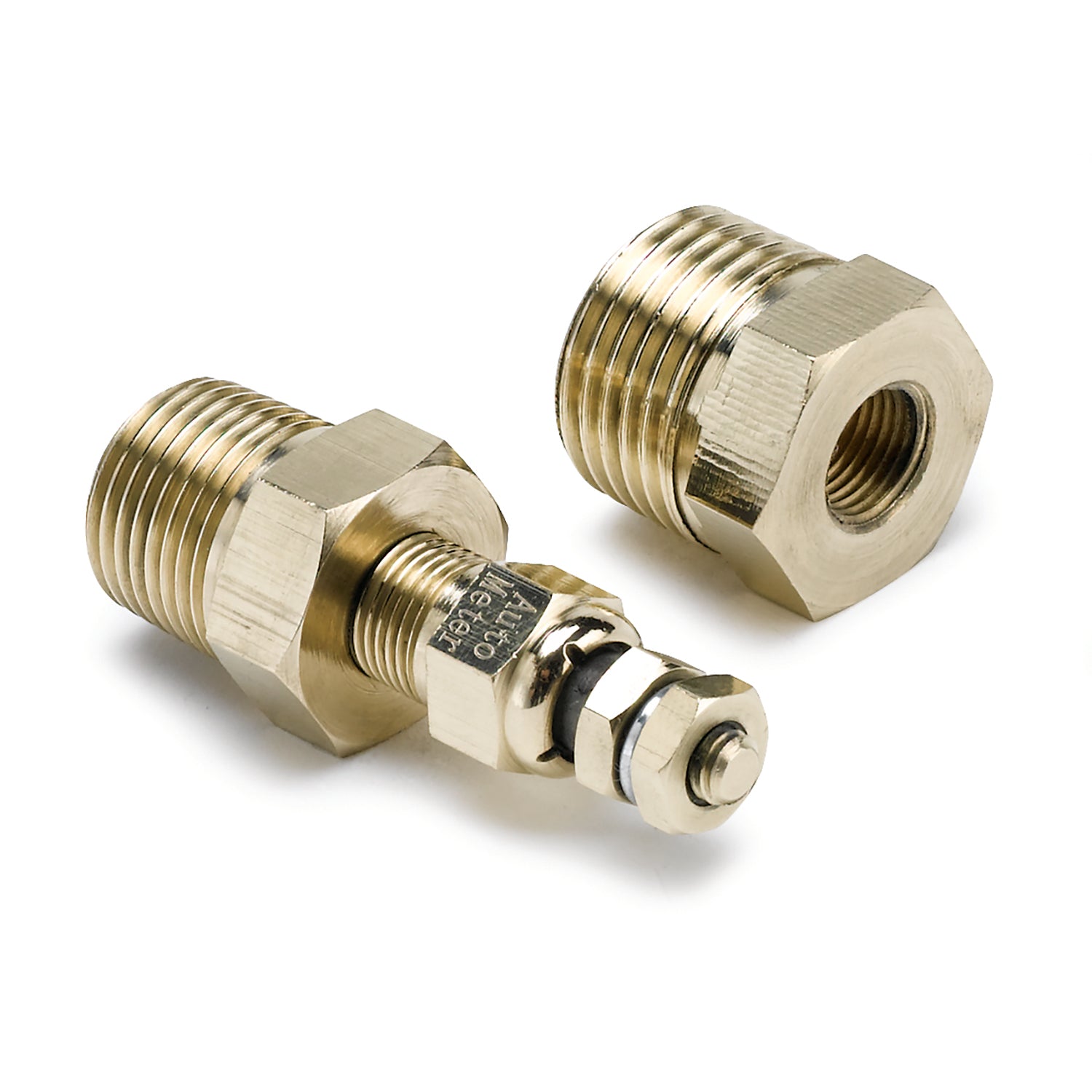

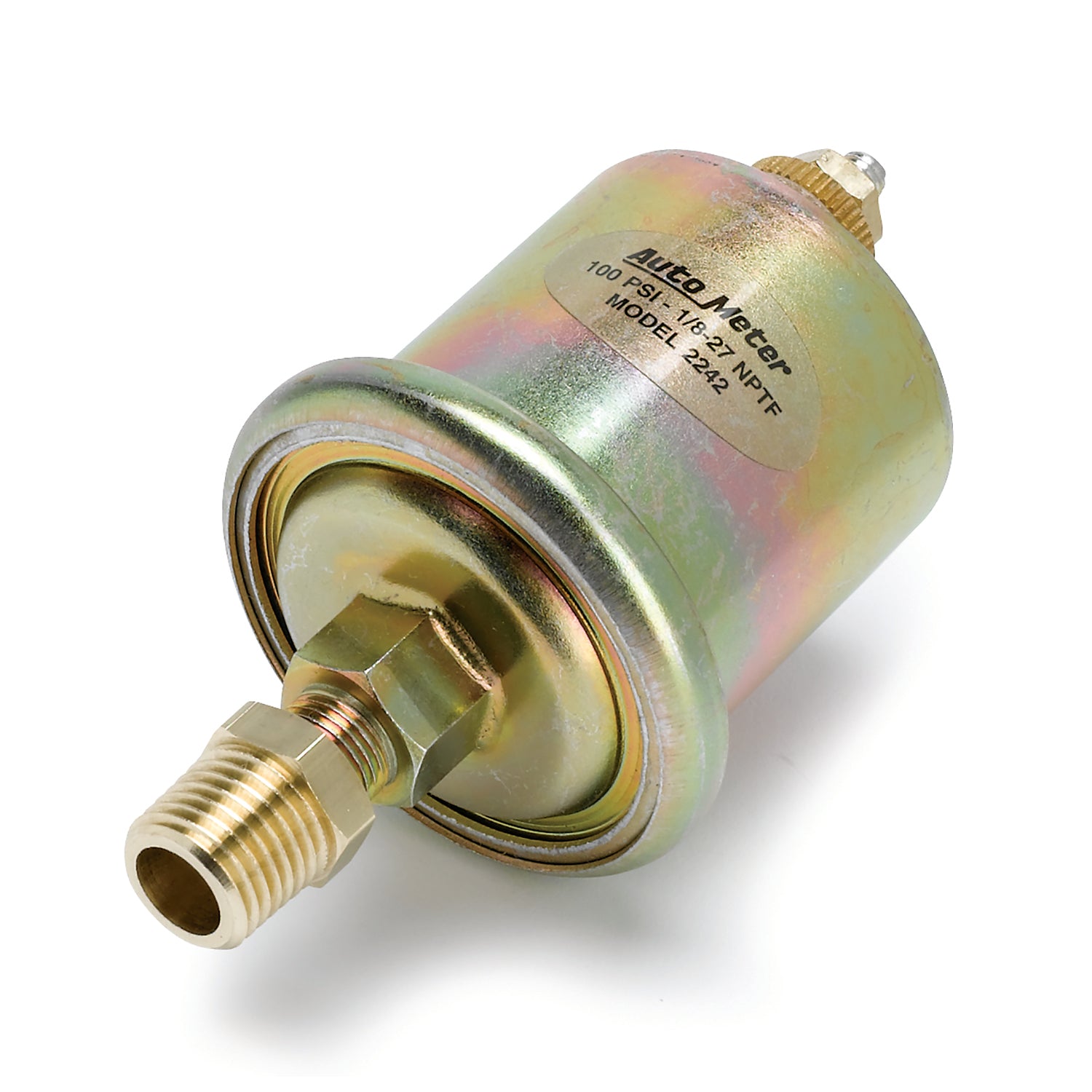

| Includes Sensor Unit | Oil Sender 2242 - Water Sender 2258 |
| Gauge Type | Quad Gauge |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Lighting Color | White |
| Cup/Hole Size - Metric - MM | 117.5mm MM |
| Size - Metric - MM | 127mm MM |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Outer Bezel Diameter | 4-15/16" IN |
| Cup/Hole Size - Standard - IN | 4-5/8" IN |
| Outer Bezel Diameter - Standard | 4-5/8" IN |
Short Description: GA 5" QUAD 0-90 AM
Invoice Description: 5" QUAD GA, FUEL LEVEL, 0-90, AMERICAN M
Definition: Electronic Multi-Purpose Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
