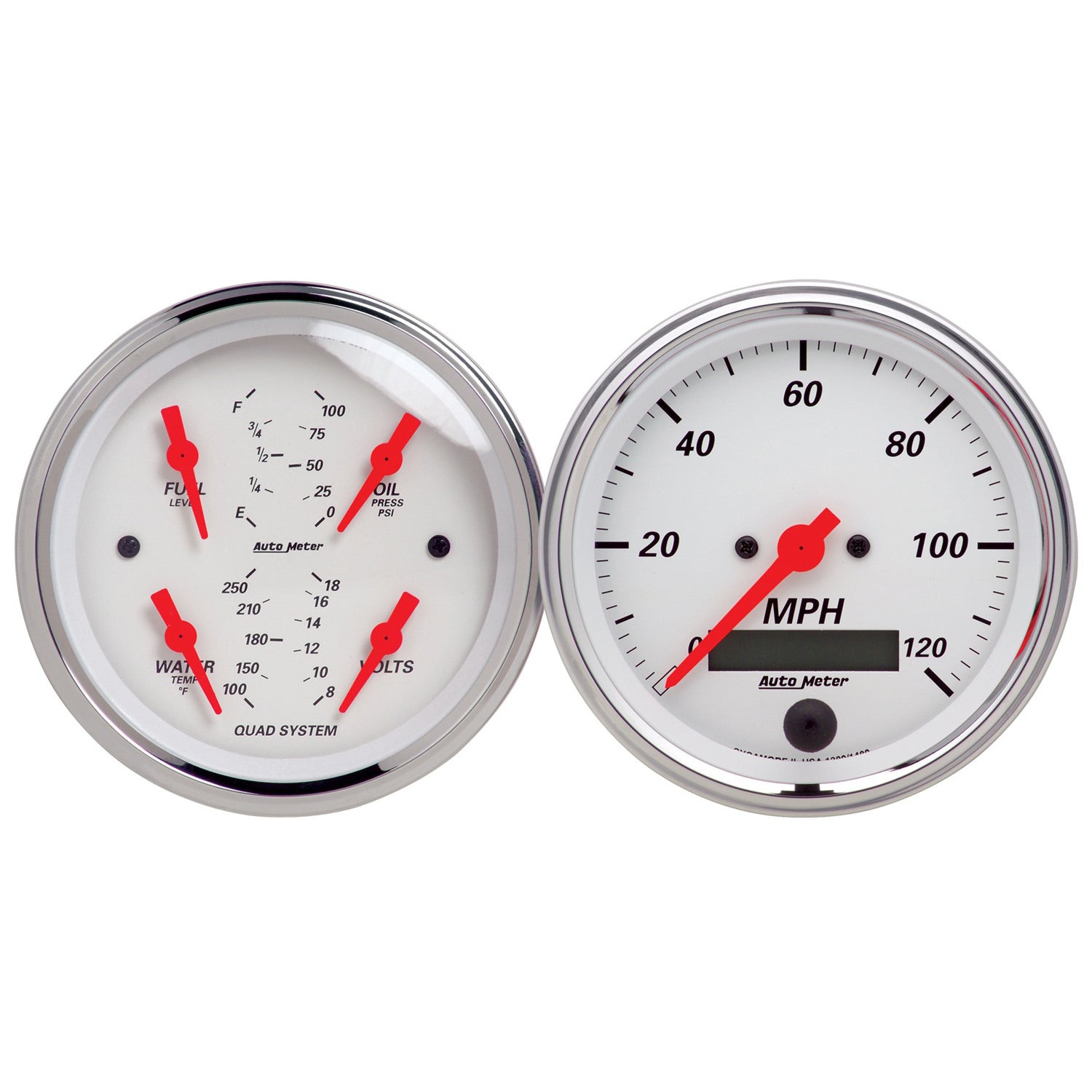

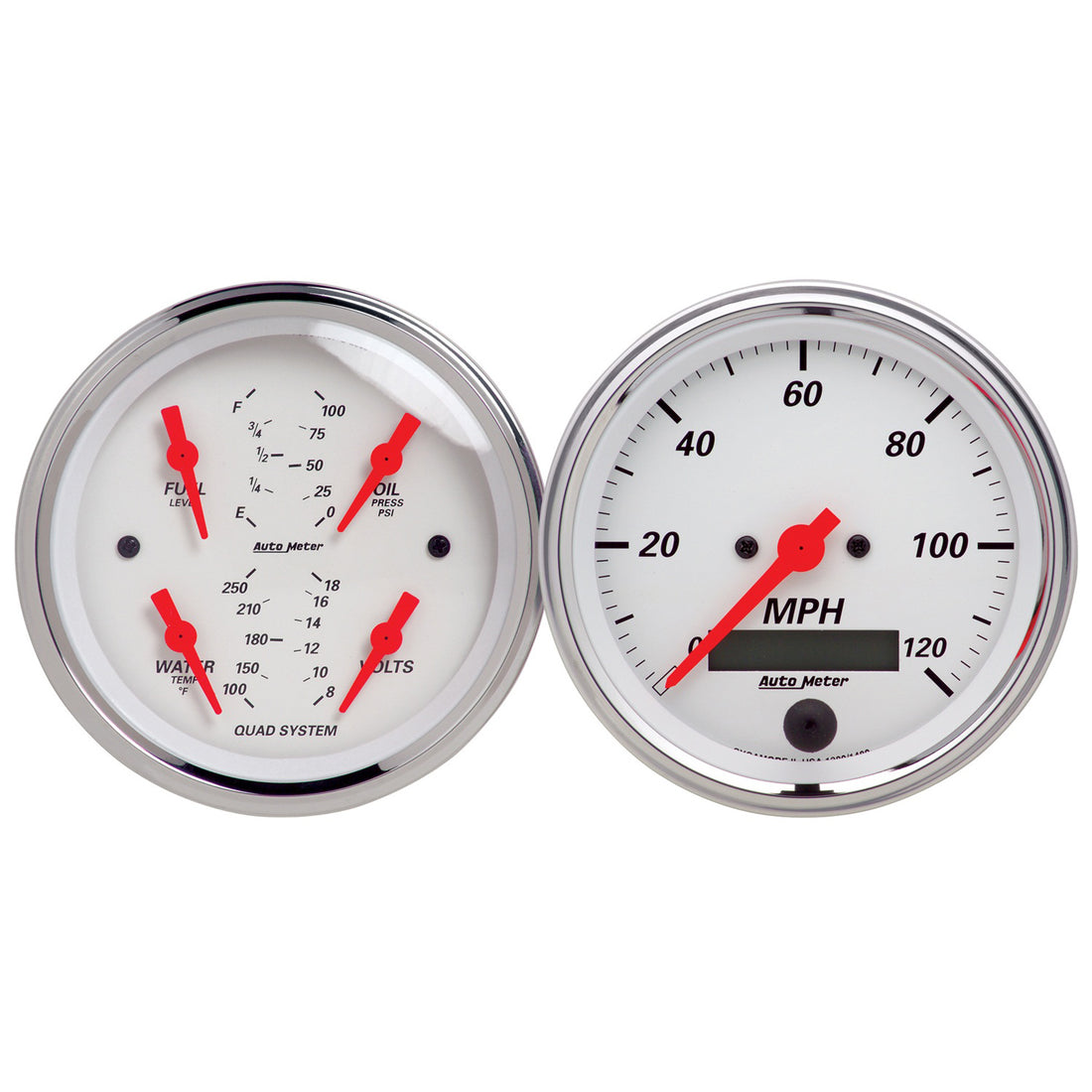

AutoMeter 1308 - GAUGE KIT, 2 PC., QUAD & SPEEDOMETER, 3 3/8", ARCTIC WHITE
Product Availability Request
Fill the form and our team will contact you.
2 PC. GAUGE KIT, 3-3/8" QUAD & SPEEDOMETER, 240-33 Ohm, ARCTIC WHITE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Features
- Highly polished chrome bezel
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)

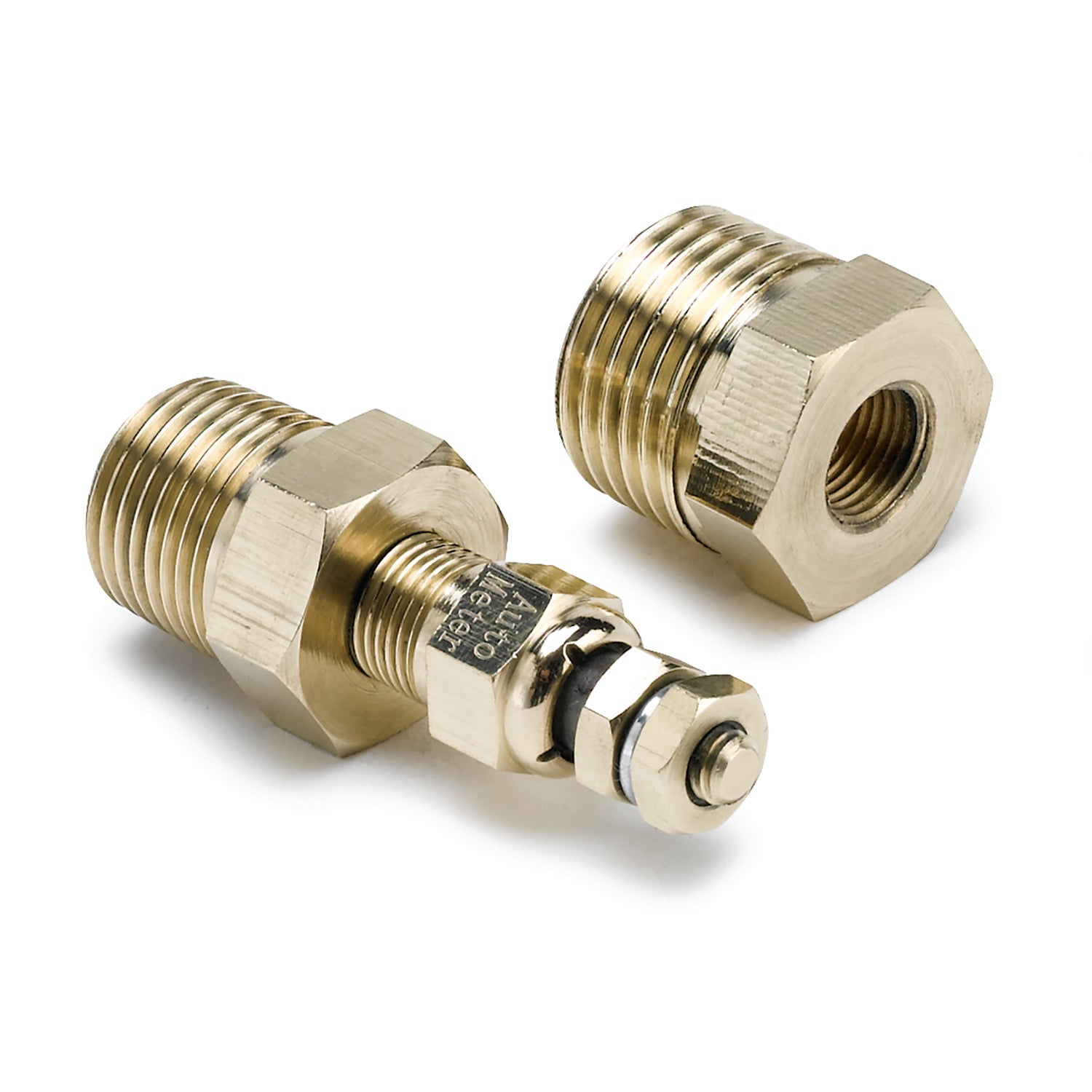

- Sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

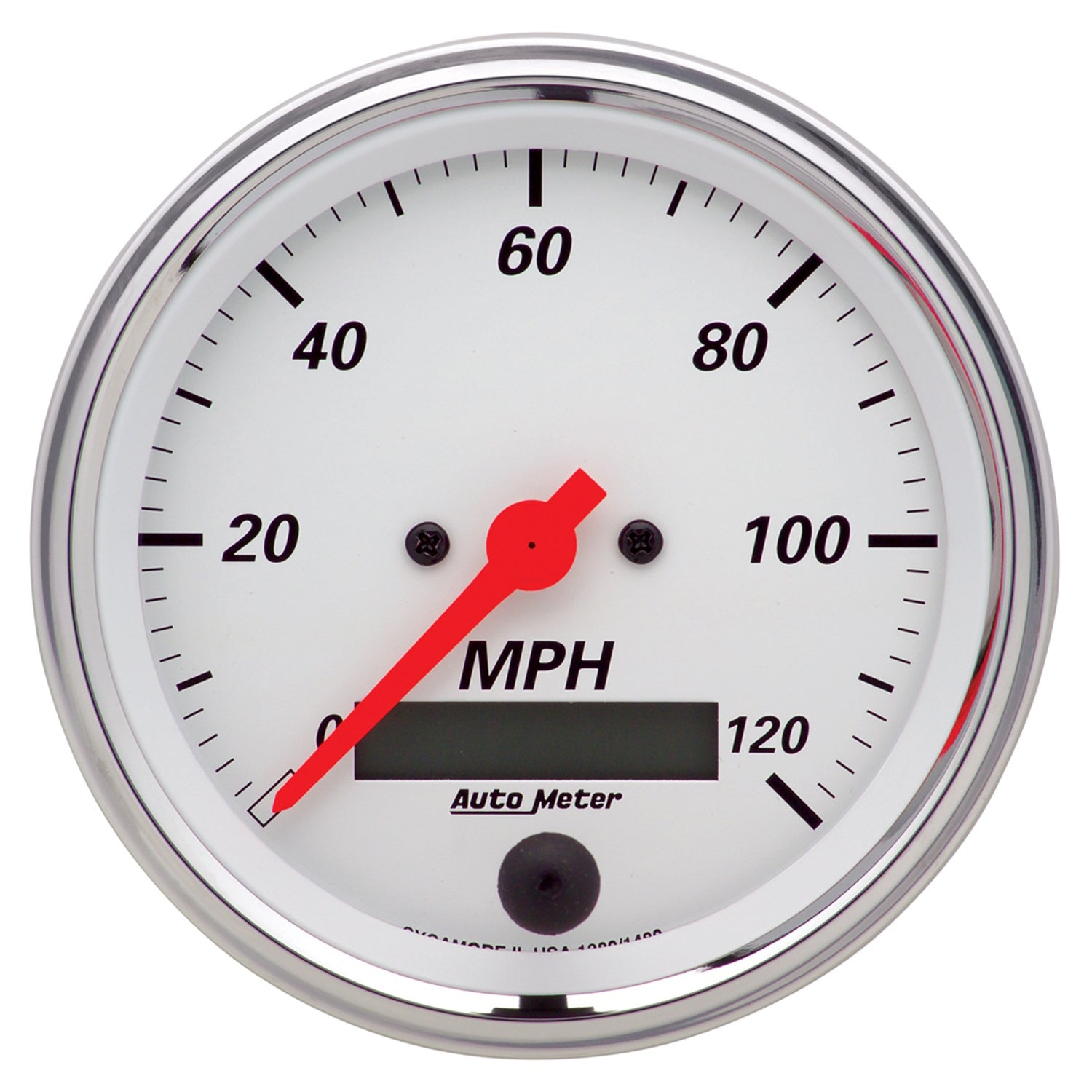

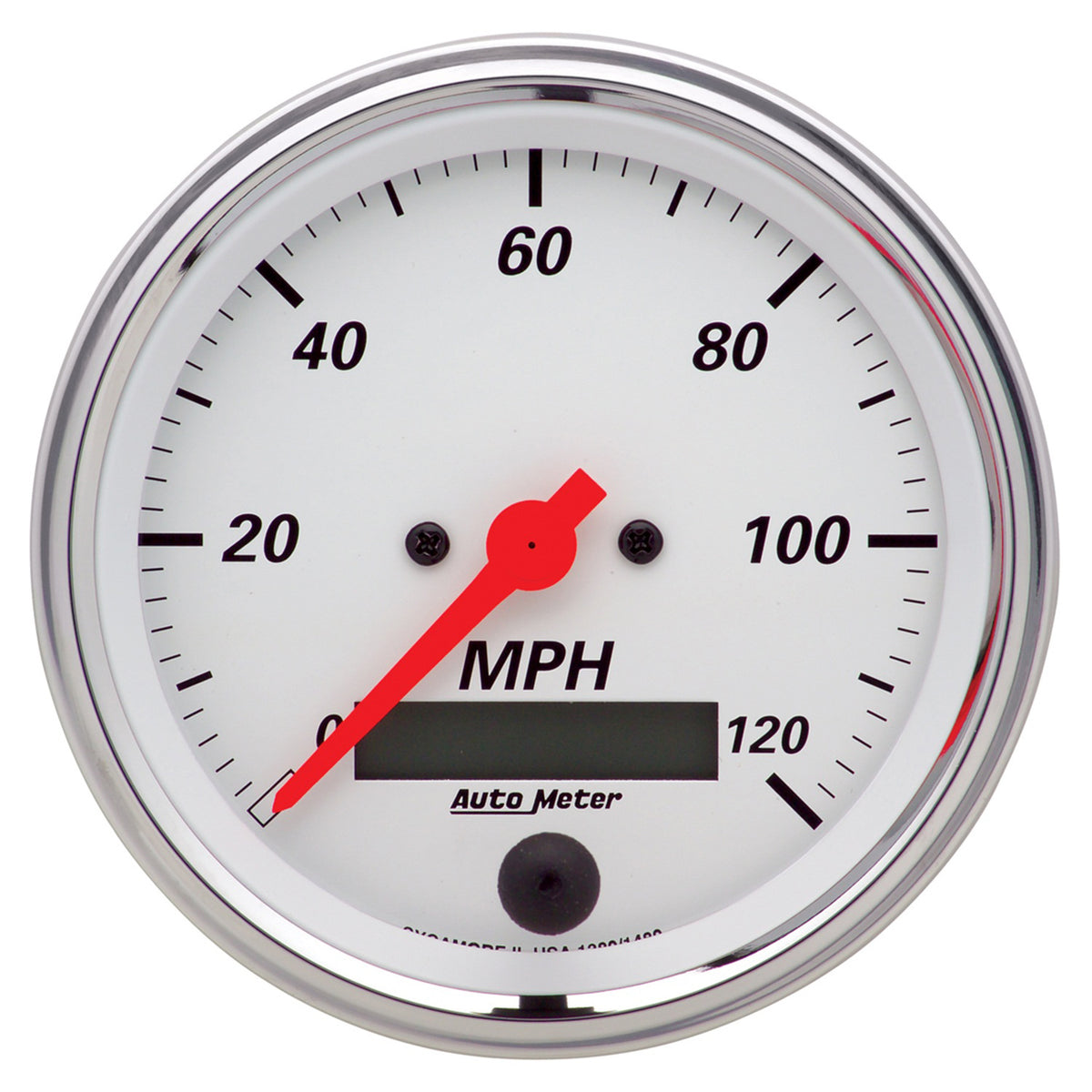

- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
Specifications
| Cup/Hole Size - Standard - IN | 3-3/8" IN |
| Outer Bezel Diameter - Standard | 3-3/8" IN |
| Size - Standard - IN | 3-3/8" IN |
| Includes Bulb & Socket | 3211 &3212 |
| Cross Sell | 3299, 5289, 5284, 5290, 2282, 2280 |
| Upsell | 3299, 5289, 5284, 5290, 2282, 2280 |
| Cup/Hole Size - Metric - MM | 85.7mm MM |
| Size - Metric - MM | 85.7mm MM |
| Series | ARCTIC WHITE |
| Includes Mounting Hardware | Brackets Included |
| Bezel Color | Chrome |
| Lens Style | Domed, Clear |
| Movement | Electric, Air-Core |
| Pointer Color | Fluorescent Red |
| Includes Sensor Unit | Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor |
| Lighting Type | Incandescent |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Street Rod |
| Dial Color | White |
| Lighting Color | White Incandescent |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings. |
| Range | 100 PSI/100-250 °F/8-18V/240OE-33OF |
| Gauge Type | 2 Piece Kit |
| Related Item | 2160, BEX-1500, EP-800, 0423XL |
| Outer Bezel Diameter | 3-3/4" IN |
Note: Sender and Harnesses
Short Description: GA KT 3.4" QD/SPD AW
Invoice Description: 3-3/8" QUAD GAUGE & SPEEDO, ARCTIC WHITE
Definition: Gauge Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
