AutoMeter 1310 - GAUGE, QUAD, 5", 240OE-33OF, ELEC, ARCTIC WHITE
Product Availability Request
Fill the form and our team will contact you.

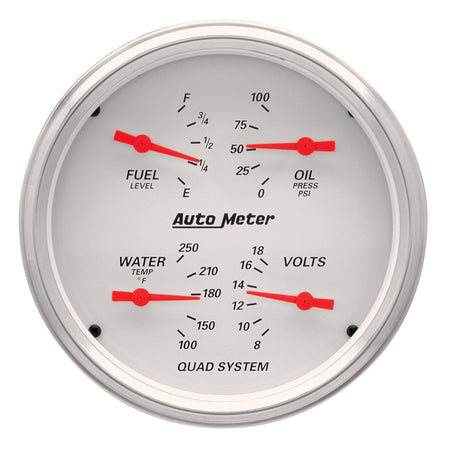

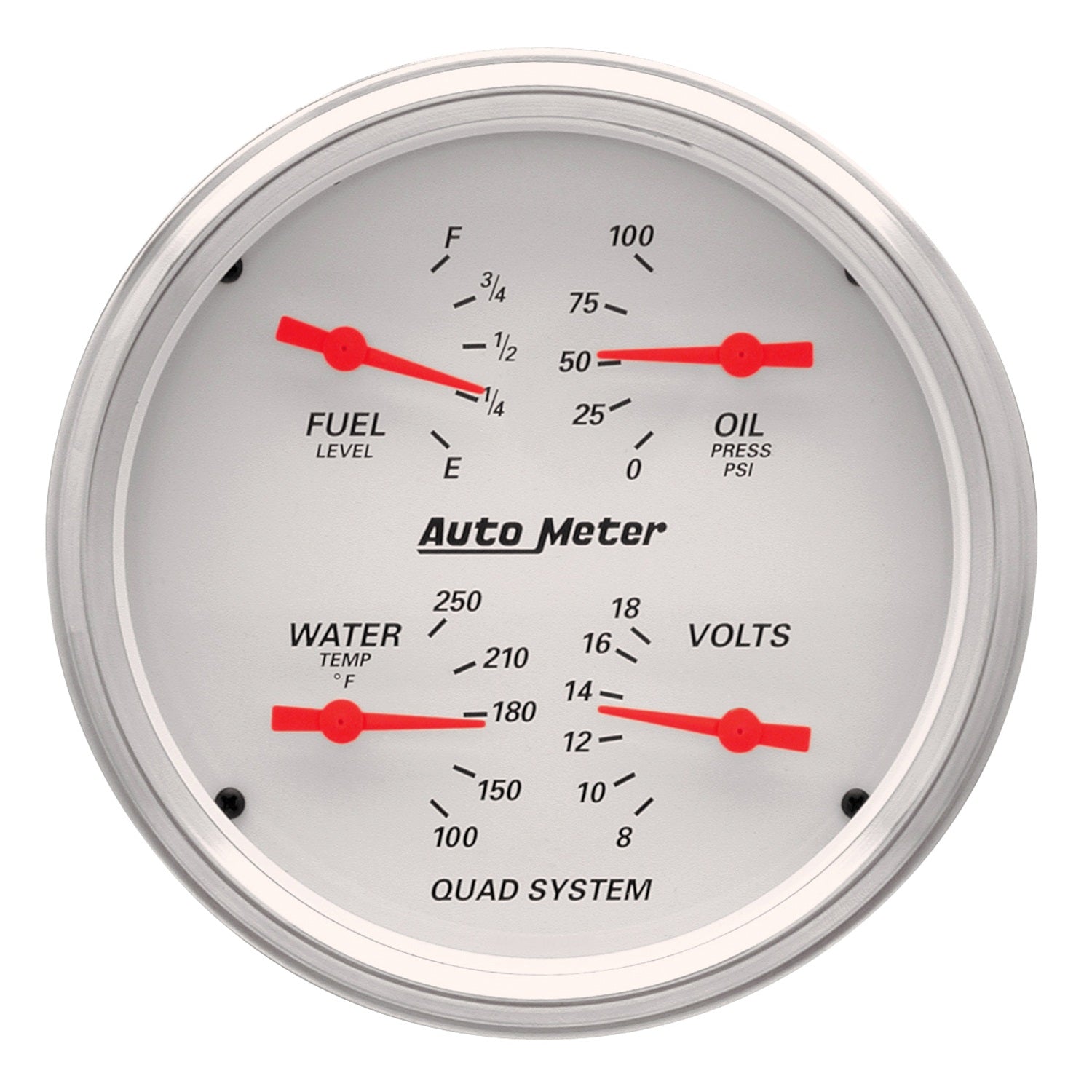

5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, ARCTIC WHITE
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Features
- Highly polished chrome bezel, Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications
| Range | 100 PSI/100-250 °F/8-18V/240OE-33OF |
| Outer Bezel Diameter | 4-15/16" IN |
| Cup/Hole Size - Standard - IN | 4-5/8" IN |
| Outer Bezel Diameter - Standard | 4-5/8" IN |
| Size - Standard - IN | 5" IN |
| Series | ARCTIC WHITE |
| Includes Mounting Hardware | Bracket Included |
| Bezel Color | Chrome |
| Lens Style | Domed, Clear |
| Movement | Electric, Air-Core |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |

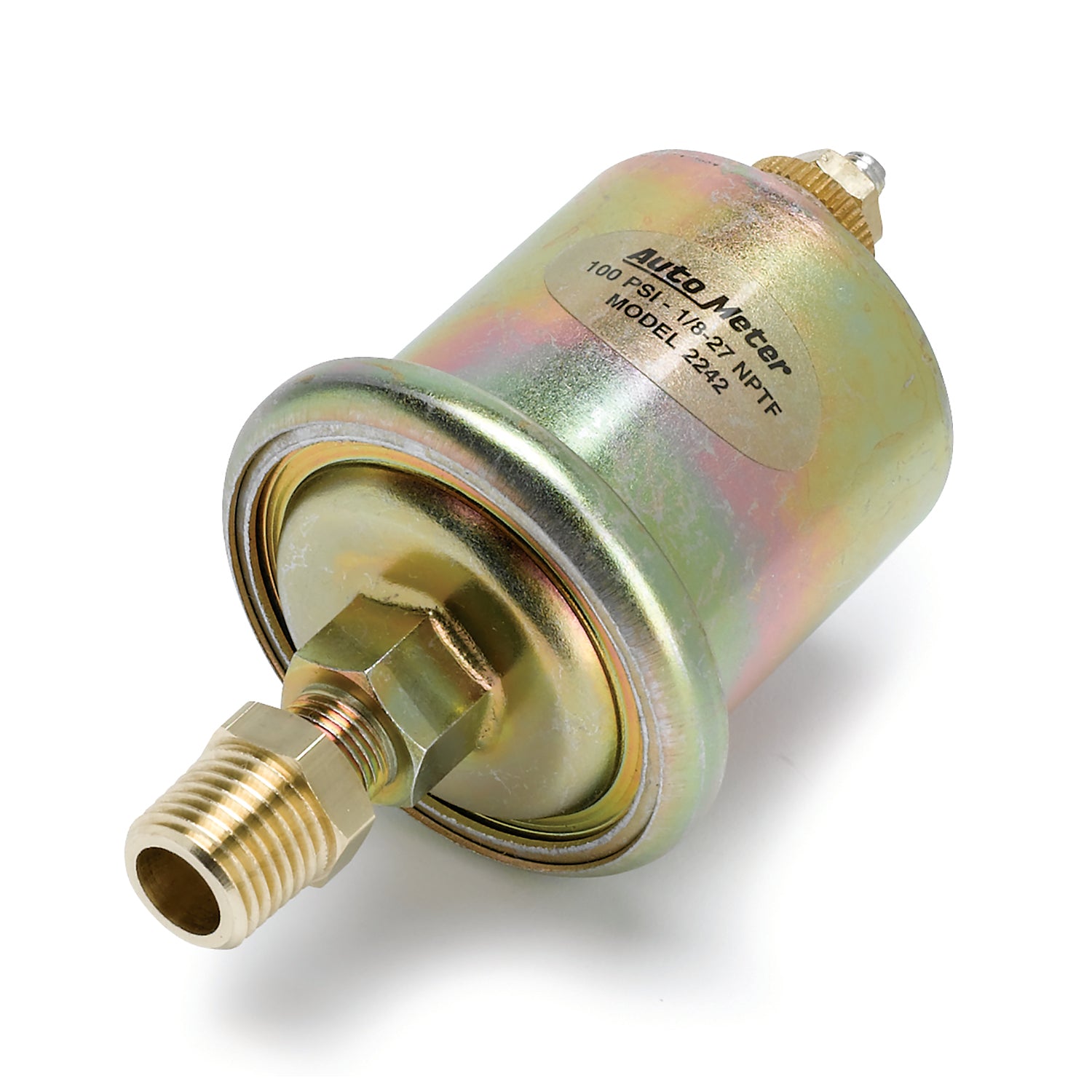

| Includes Sensor Unit | Oil Sender 2242 - Water Sender 2258 |
| Gauge Type | Quad Gauge |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Street Rod |
| Dial Color | White |
| Lighting Color | White Incandescent |
| Cup/Hole Size - Metric - MM | 117.5mm MM |
| Size - Metric - MM | 127mm MM |
| Related Item | 2160, BEX-1500, EP-800, 0423XL |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3212 & 3220 |
| Cross Sell | 3262, 3299, 5284, 3263, 2277, 2280 |
| Upsell | 3262, 3299, 5284, 3263, 2277, 2280 |
Note: Sender and Harnesses
Short Description: GA 5" QUAD 240-33 AW
Invoice Description: 5" QUAD GAUGE, ARCTIC WHITE
Definition: Electronic Multi-Purpose Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
