AutoMeter 200760 - GAUGE, FUEL LEVEL, 2 1/16", 240OE TO 33OF, ELEC, MARINE WHITE
Product Availability Request
Fill the form and our team will contact you.

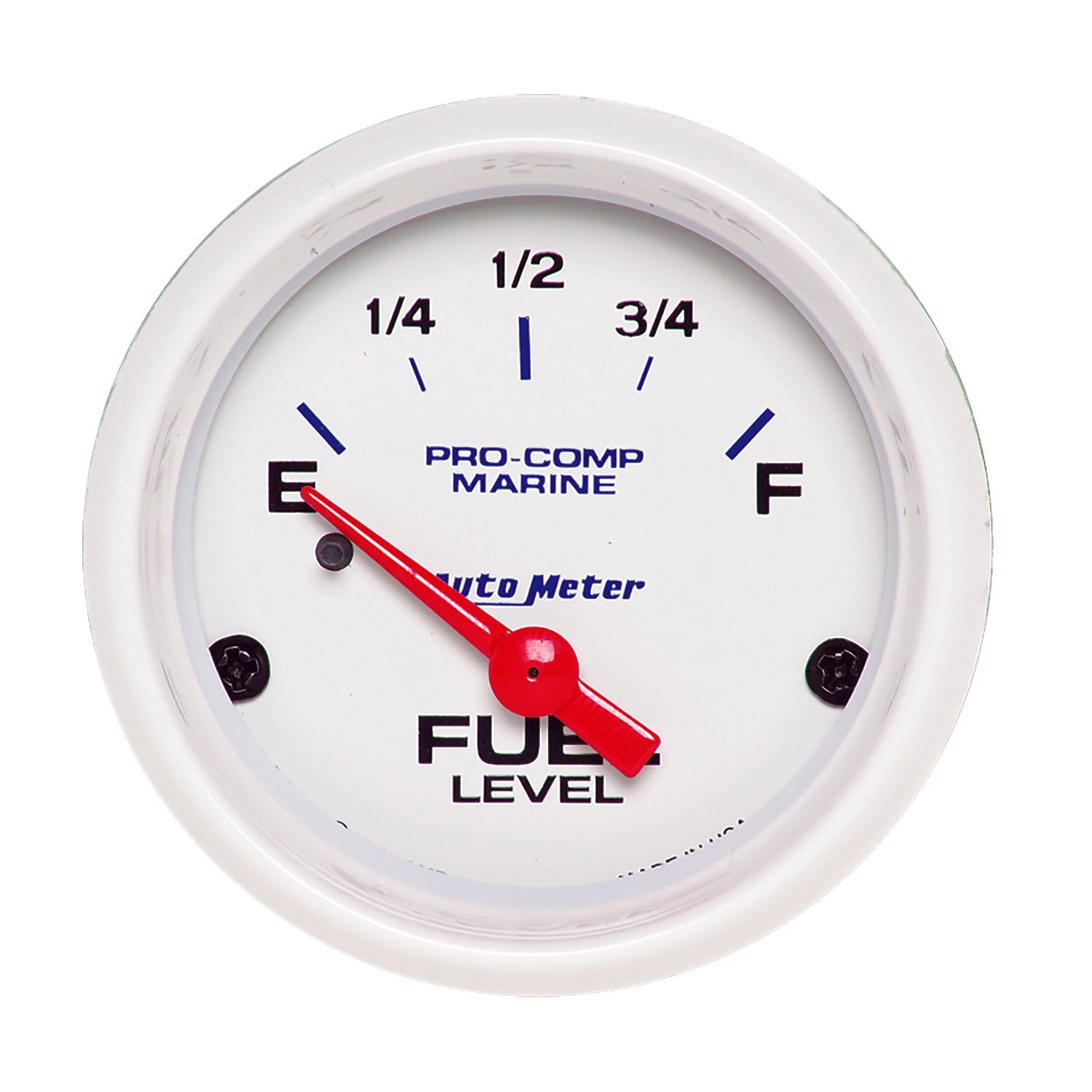

2-1/16" FUEL LEVEL, 240-33 Ohm, MARINE WHITE
One of the most necessary gauges on any dashboard! AutoMeter makes it easy with our patented air core meter movement with built-in extra dampening to help combat the effects fuel slosh in non-baffled tanks. Works with AutoMeter fuel sender 990345 or other aftermarket 240 Ohm empty to 33 Ohm full fuel level sending units.
Features
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter sending unit 990345 or equivalent 240E/33F fuel level sender
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
- Traditional incandescent lighting illuminates around the perimeter of the dial
Specifications
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Includes Mounting Hardware | 2225 |
| Range | 240 O Empty / 33 O Full |
| Includes Bulb & Socket | 3220 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Cross Sell | 990345, 3298, 3288, 3284, 3285 |
| Upsell | 990345, 3298, 3288, 3284, 3285 |
| Related Item | BEX-5000, 0447LXL, EP-800, 0423XL |
| Movement | Electric, Air Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Gauge Type | Fuel Level |
| Lighting Type | Incandescent |
| Series | MARINE WHITE |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Bezel Color | White |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: GA 2" FU 240-33 MW
Invoice Description: PC MARINE, 2" FUEL LEVEL 240 E/33 F OHM
Definition: Fuel Level Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
