AutoMeter 200790 - GAUGE, OIL PRESSURE, 2 1/16", 100PSI, MECHANICAL, MARINE WHITE
Product Availability Request
Fill the form and our team will contact you.

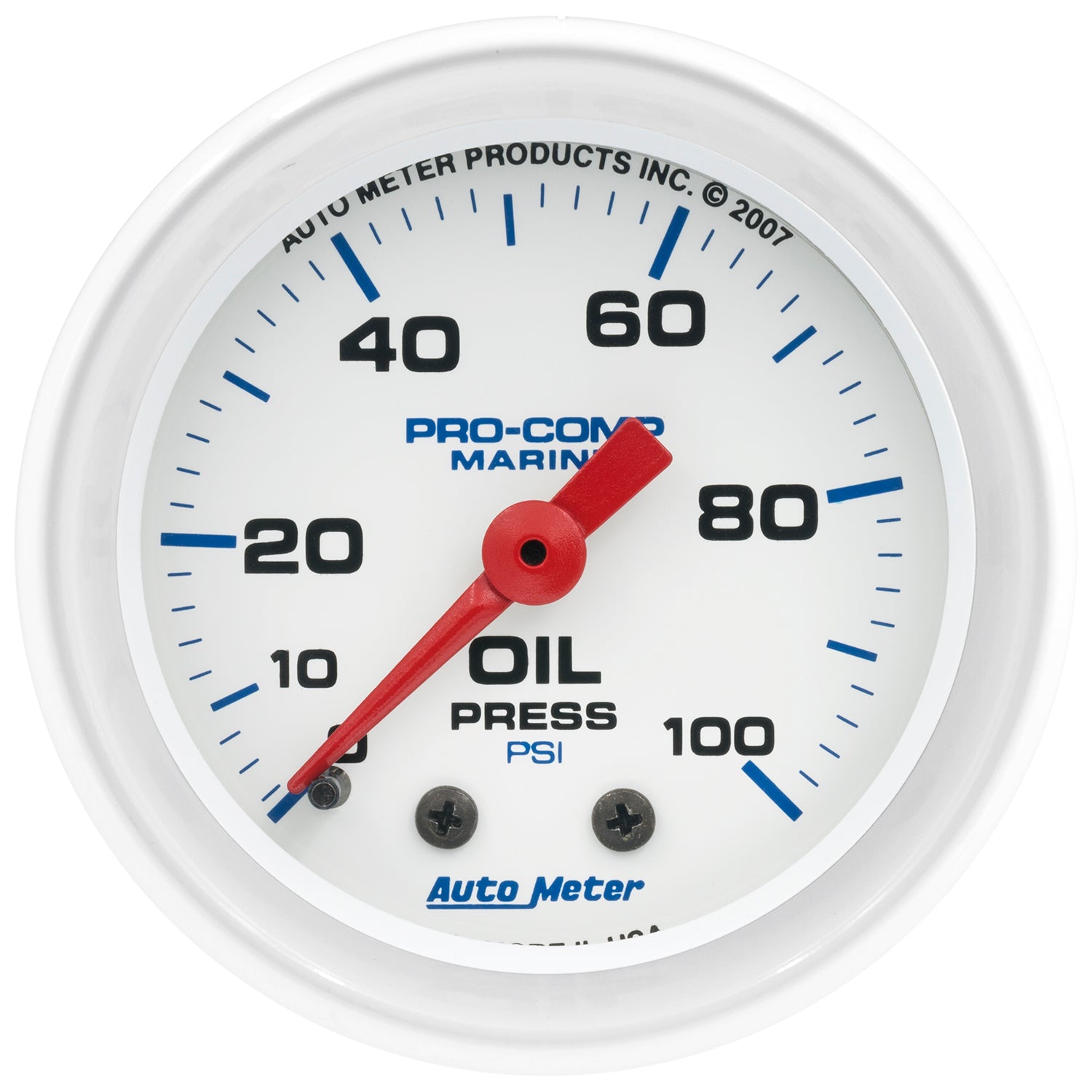

2-1/16" OIL PRESSURE, 0-100 PSI, MARINE WHITE
The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. A simple 1/8” NPT connection makes installation easy. Fittings and nylon tube are included and optional braided stainless line kits are available.
Features
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
Specifications
| Range | 0-100 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Includes Mounting Hardware | 2225 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3224, 3223, 3226, 3288, 3284 |
| Upsell | 3224, 3223, 3226, 3288, 3284 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Related Item | BEX-5000, 0447LXL, EP-800, 0423XL |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Series | MARINE WHITE |
| Movement | Mechanical |
| Gauge Type | Oil Pressure |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Bezel Color | White |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: GA 2" OP 100PSI M MW
Invoice Description: PC MARINE, 2" OIL PRESS, 0-100 PSI, MECH
Definition: Engine Oil Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
