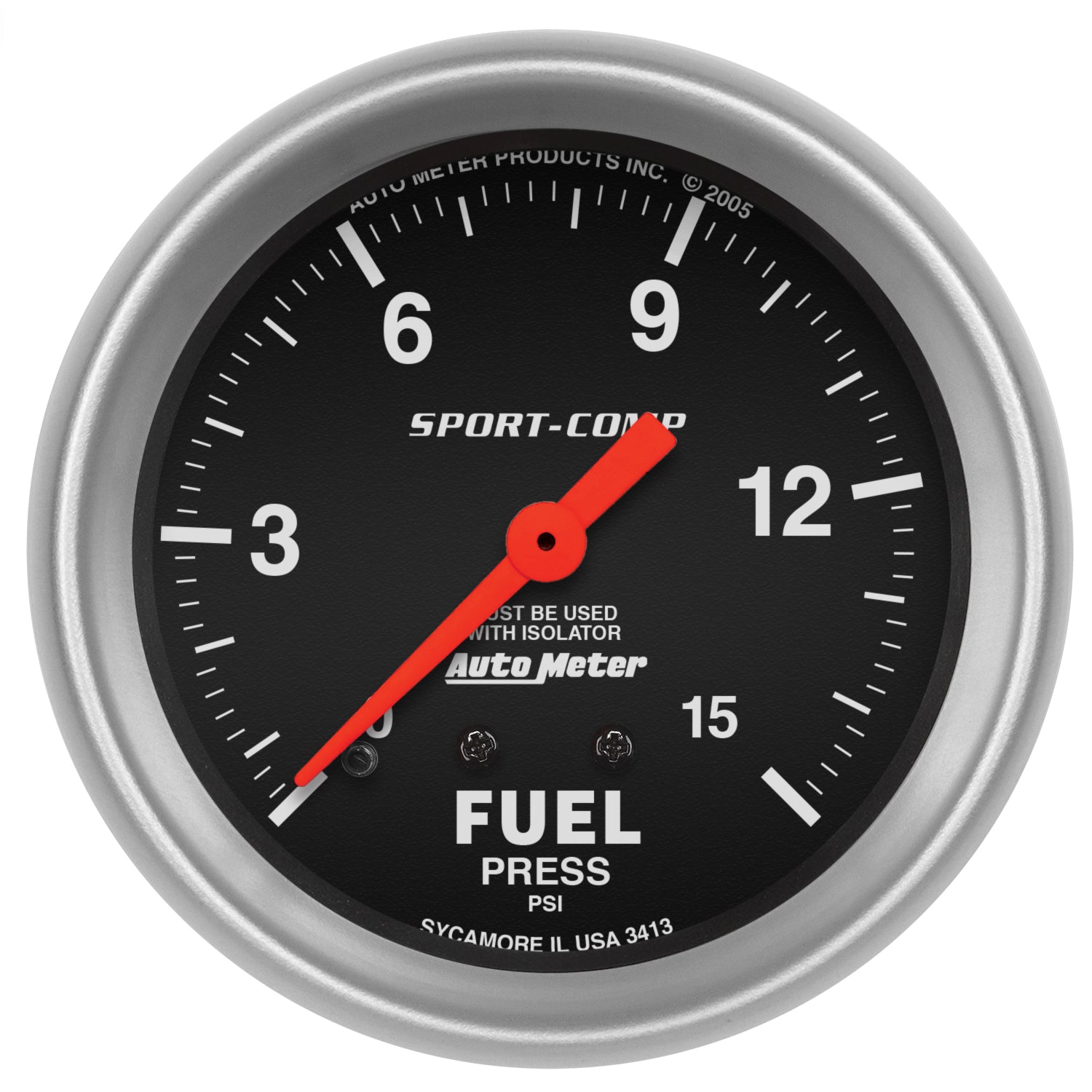

AutoMeter 3413 - GAUGE, FUEL PRESSURE, 2 5/8", 15PSI, MECHANICAL W/ISOLATOR, SPORT-COMP
Product Availability Request
Fill the form and our team will contact you.
2-5/8" FUEL PRESSURE W/ ISOLATOR, 0-15 PSI, SPORT-COMP
Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter’s Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for carbureted applications, a simple -4an connection makes installation easy. Don’t take chances with your investment a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, a fuel pressure isolator is included.
Features
- Includes bulb and socket assembly with red and green bulb covers
- Includes 4ft. Braided stainless steel hose, also requires #4 braided hose to connect isolator to fuel source
- Use of isolator allows gauge to be mounted inside vehicle
- Includes gauge mounting hardware and installation instructions
Specifications
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2160, BEX-1500, EP-800, 0423XL, 0424XL |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3227, 3228, 3229 |
| Upsell | 3227, 3228, 3229 |
| Includes Mounting Hardware | 3245 |
| Includes Tubing | 4 ft. braided stainless hose |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Dial Color | Black |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Includes Sensor Unit | Fuel Isolator |
| Gauge Type | Fuel Pressure w/ Isolator |
| Lighting Type | Incandescent |
| Movement | Mechanical |
| Includes Light Covers | Red 3214 & Green 3215 |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Range | 0-15 PSI |
| Series | SPORT-COMP |
| Bezel Style | Super Bezel |
| Lighting Color | White Incandescent |
Short Description: 2-5/8" FUEL PRESS
Invoice Description: 2-5/8" FUEL PRESS, 0-15 PSI, W/ISO, MECH
Definition: Fuel Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
