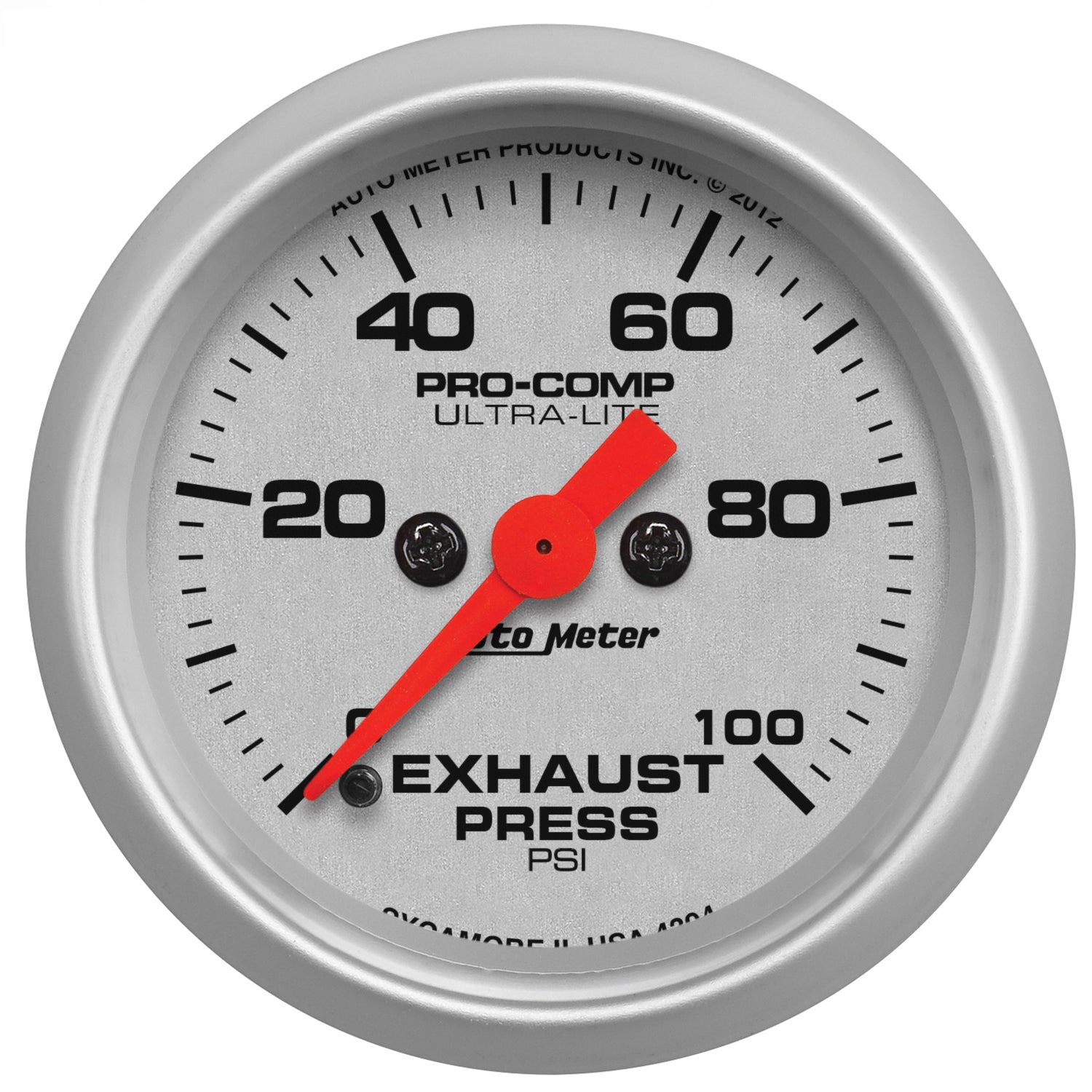

AutoMeter 4394 - GAUGE, EXHAUST PRESS, 2 1/16", 100PSI, DIGITAL STEPPER MOTOR, ULTRA-LITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" EXHAUST PRESSURE, 0-100 PSI, ULTRA-LITE
One of the most requested line additions in AutoMeter history, this Digital Stepper Motor Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, includes a highly advanced 1/8” NPT Pressure Transducer, install kit and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output. An optional particulate filter is also available for enhanced sensor lifespan.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous gases outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, copper tubing kit, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Recommended Particle Trap Kit (#5375) available separately for increased lifespan of the pressure transducer and ease of gauge hardware maintenance
Specifications
| Range | 0-100 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2164, BEX-1500, EP-800, 0424XL, 0449XL, 0447LXL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2246 |
| Includes Bulb & Socket | 3220 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5227 |
| Cross Sell | 5375, 3284, 3285, 3286, 3287, 3288 |
| Upsell | 5375, 3284, 3285, 3286, 3287, 3288 |
| Includes Tubing | 6 ft. Copper Tube |
| Bezel Color | Brushed Aluminum |
| Movement | Electric, Digital Stepper Motor |
| Gauge Type | Exhaust Pressure |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Includes Light Covers | Red 3214 & Green 3215 |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE |
| Lighting Color | White Incandescent |
Short Description: 2-1/16 EXHAUST PRESS
Invoice Description: 2-1/16" EXHAUST PRESS, 0-100 PSI, FSE
Definition: Multi-Purpose Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
