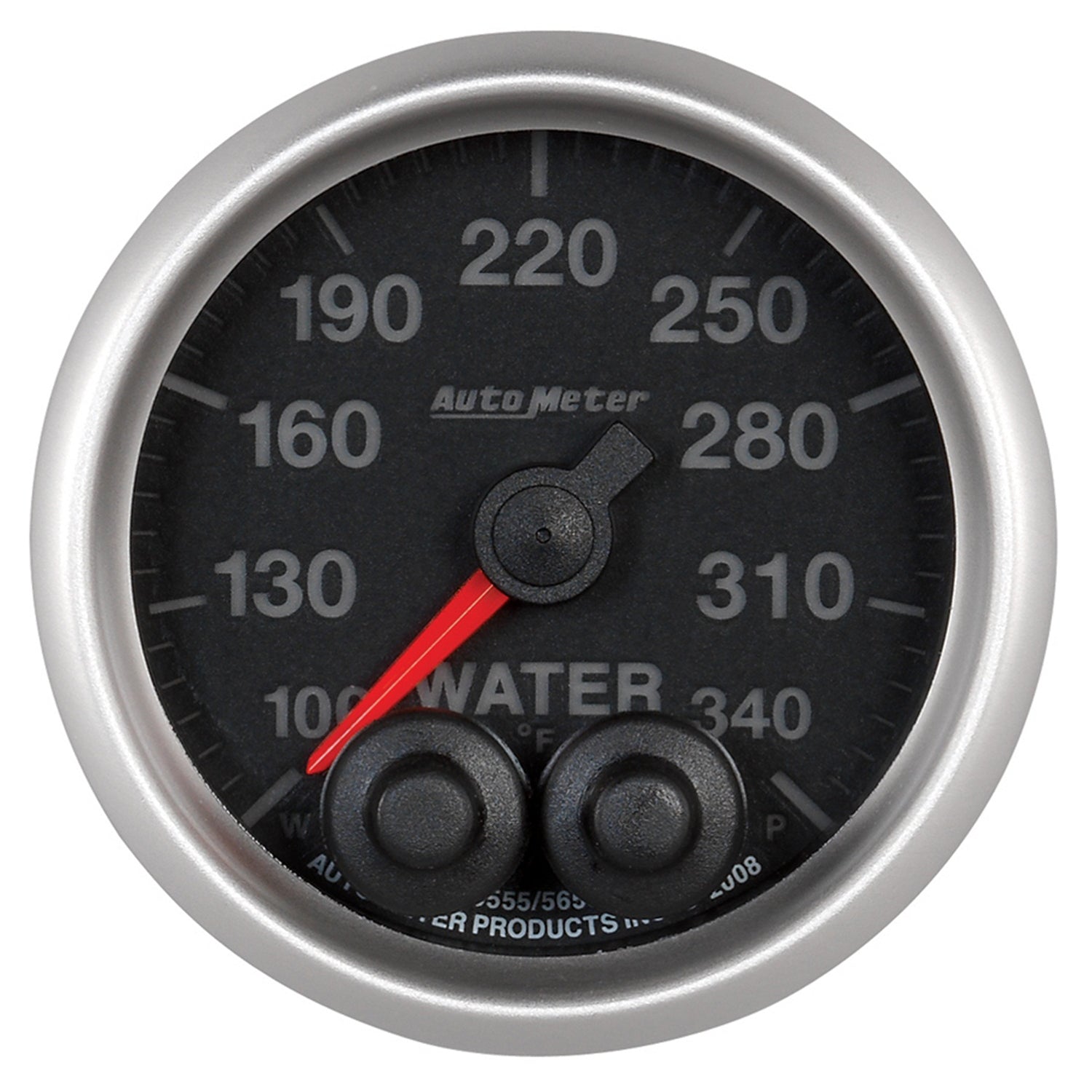

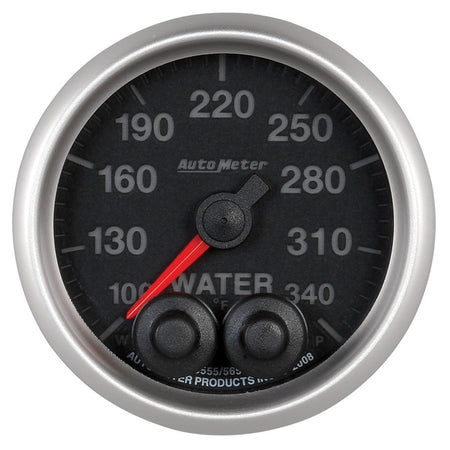

AutoMeter 5655 - GAUGE, WATER TEMP, 2 1/16", 340?F, STEPPER MOTOR W/PEAK & WARN, ELITE
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WATER TEMPERATURE, 100-340 F, ELITE
Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Features

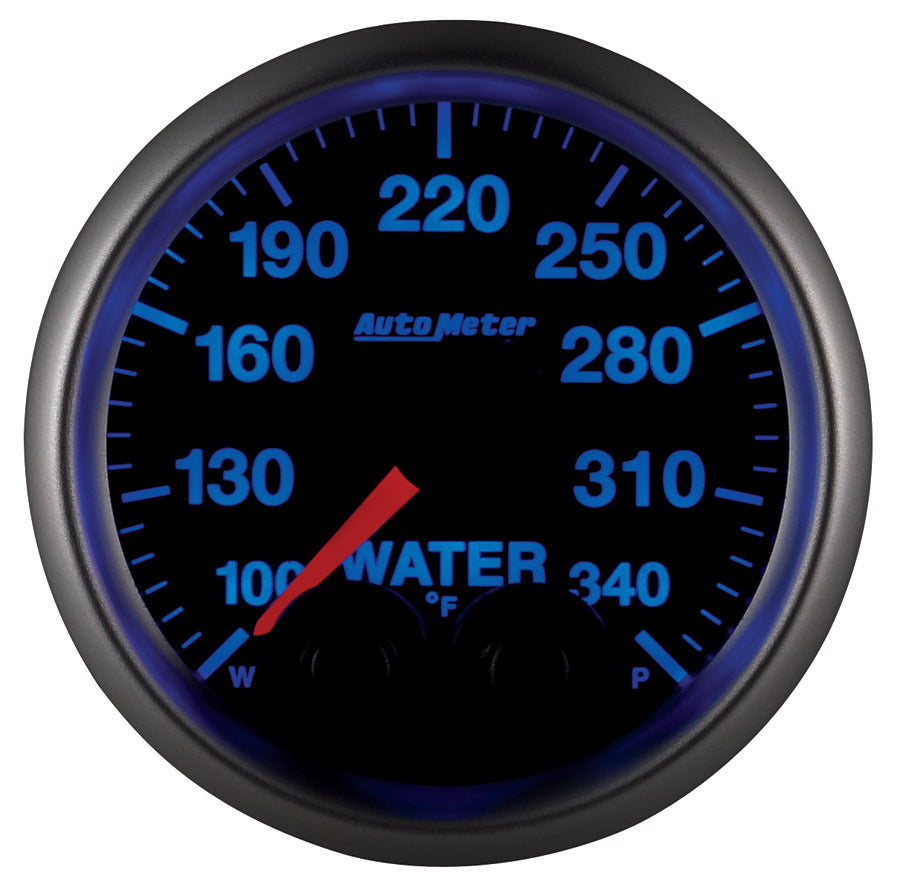

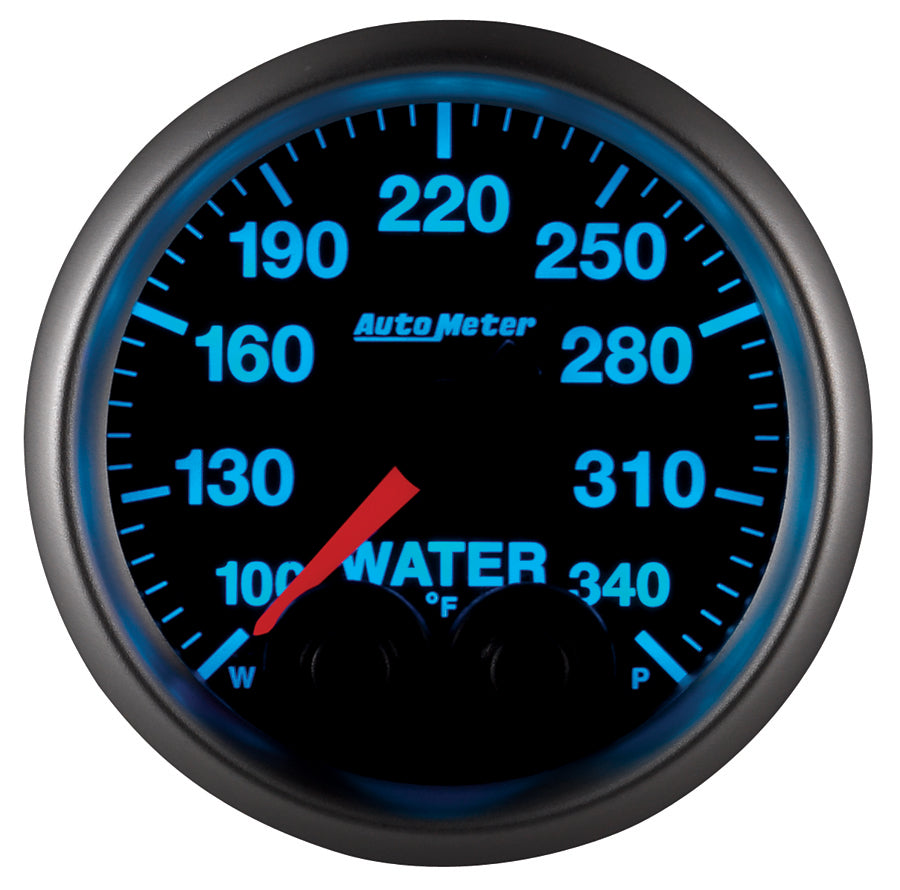

- 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
- Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
- Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
- Acquire data for later review with one-touch Peak Recall functionality
- Data logger 0-5V output provides ECU and data systems with vital information
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Specifications
| Range | 100-340 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2163, BEX-5000, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2252 |
| Cross Sell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Upsell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5276 |
| Lighting Color | 7 User Selectable Colors |
| Dial Color | Black |
| Bezel Color | Brushed Aluminum |
| Movement | Electric, Digital Stepper Motor |
| Series | ELITE |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Bezel Style | Super Bezel |
| Gauge Type | Water Temperature |
Short Description: GA 2" WTEMP 340F ELI
Invoice Description: 2-1/16" WATER TEMP, 100- 340`F, ELITE
Definition: Engine Coolant Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
