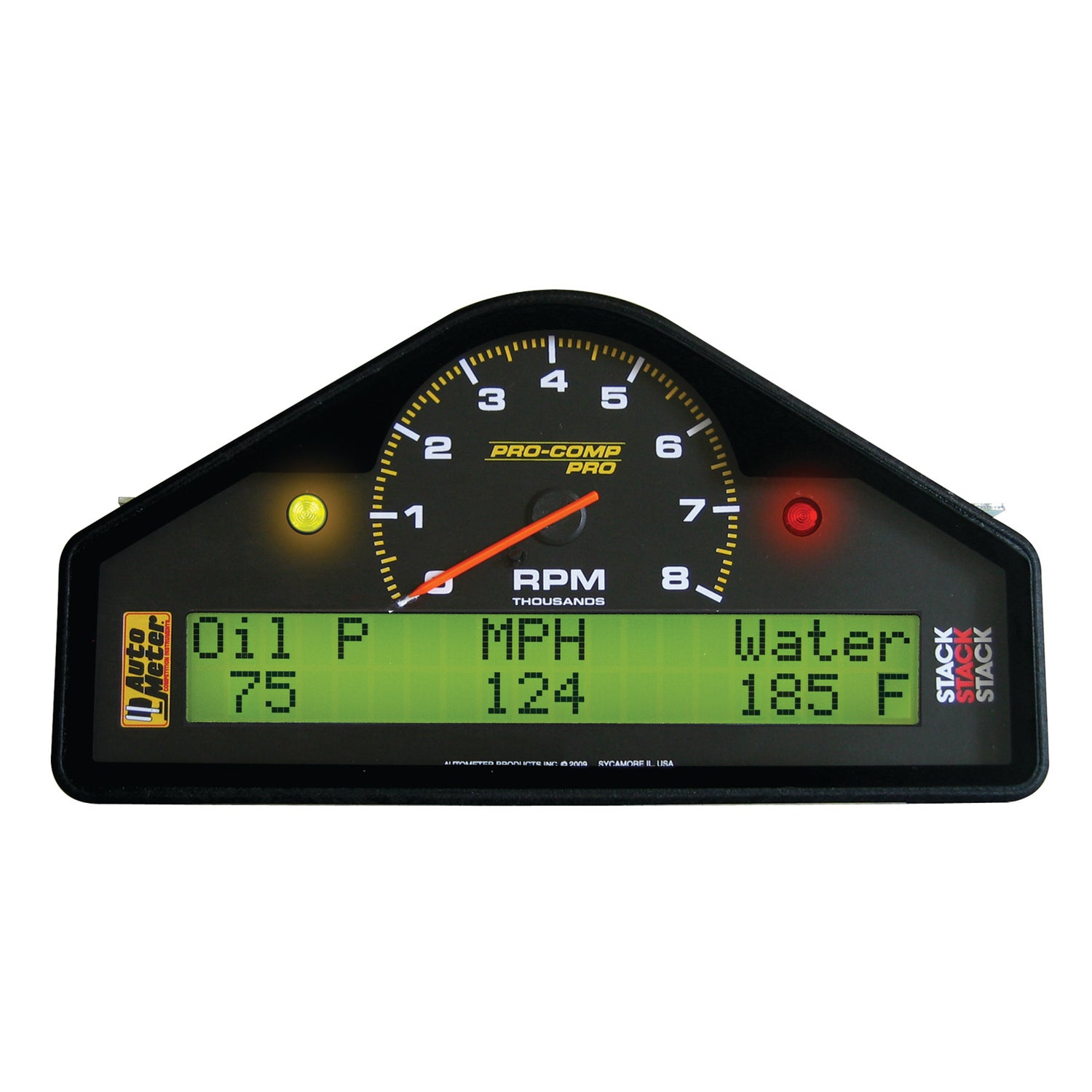

AutoMeter 6002 - STREET DASH DISPLAY, 8K RPM/MPH/OILP/OILT/WTMP/VOLT, PRO-COMP
Product Availability Request
Fill the form and our team will contact you.
STREET DASH, 0-3-8K RPM, PRO-COMP PRO
The AutoMeter Street display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information.
Features
- Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, Fuel Level, with an option to add Fuel Pressure separately.
- Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
- Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
- Includes oil pressure, water temperature, oil temperature sensors
- Display features digital values for vehicle parameters and configurable text warning messages
- Built-in warning and low fuel LEDs
- Optional shift light output, single stage or progressive shift light
- Configurable for engines from 1-12 cylinders
- Programmable Speed and Fuel Level inputs
Specifications
| Range | 0-3-8K RPM/200+ MPH/0-150 PSI/0-300 °F/0-300°F/Programmable/8-18V |
| Cross Sell | 5289, 5290, 5291, 5292, ST539, ST537 |
| Upsell | 5289, 5290, 5291, 5292, ST539, ST537 |
| Size - Standard - IN | 7.5"W x 4"H x 1-1/2"D IN |
| Gauge Type | Analog/Digital |
| Movement | Analog/Digital |
| Related Item | BEX-5000, 2163, EP-800 |
| Bezel Color | Black |
| Dial Color | Black |
| Includes Wire Harness | Call Auto Meter Technical Support At 1-866-248-6357 |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Includes Mounting Hardware | Hardware Included |
| Lighting Type | LED |
| Series | PRO-COMP |
| Includes Sensor Unit | ST764K, ST747, ST492 |
| Bezel Style | Stack |
| Lighting Color | White |
Short Description: STREET DASH 038K RPM
Invoice Description: STREET DASH, 0-3-8K RPM
Definition: Electronic Multi-Purpose Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
