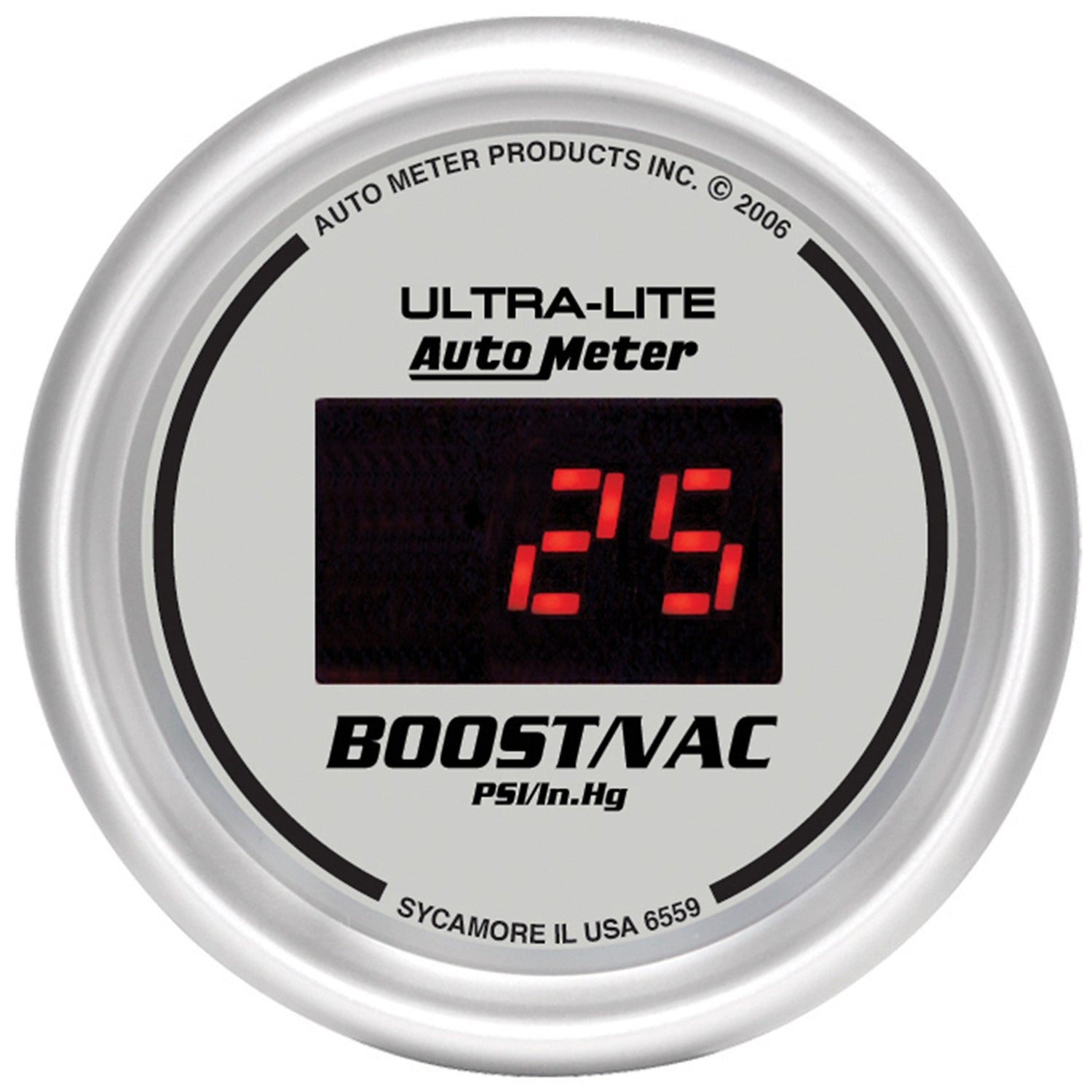

AutoMeter 6559 - GAUGE, VAC/BOOST, 2 1/16", 30INHG-30PSI, DIGITAL, SILVER DIAL W/ RED LED
Product Availability Request
Fill the form and our team will contact you.
2-1/16" BOOST/VACUUM, 5-100 PSI, ULTRA-LITE DIGITAL
Incredibly high accuracy in both vacuum and boost, AutoMeter’s Digital Boost/Vac gauge is engineered to provide the best possible accuracy in applications ranging from 30 in/Hg to 30 psi. Our patented gauge technology allows the gauge to calibrate on every startup to compensate for altitude, barometric pressure and other atmospheric conditions, assuring you of the most precise reading possible. A direct plug in wiring harness is included for ease of installation. A high pressure digital boost only gauge is also available for diesel or high boost gasoline applications.
Features
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2249 |
| Range | 5-100 PSI |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5229 |
| Cross Sell | 6563, 4379, 4397 |
| Upsell | 6563, 4379, 4397 |
| Gauge Type | Boost/Vacuum |
| Bezel Color | Brushed Aluminum |
| Movement | Digital |
| Lighting Type | Digital LED |
| Lens Style | Flat, Clear |
| Lighting Color | Red |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE DIGITAL |
Short Description: 2-1/16" BOOST-VAC
Invoice Description: 2-1/16" BOOST-VAC, 30/30 DIGITAL, SILVER
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
