AutoMeter 7004 - Digital Instrument Display, 73-87 Chevy/Gmc Full Size Truck, Color Lcd
Regular price
$1,444.44 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

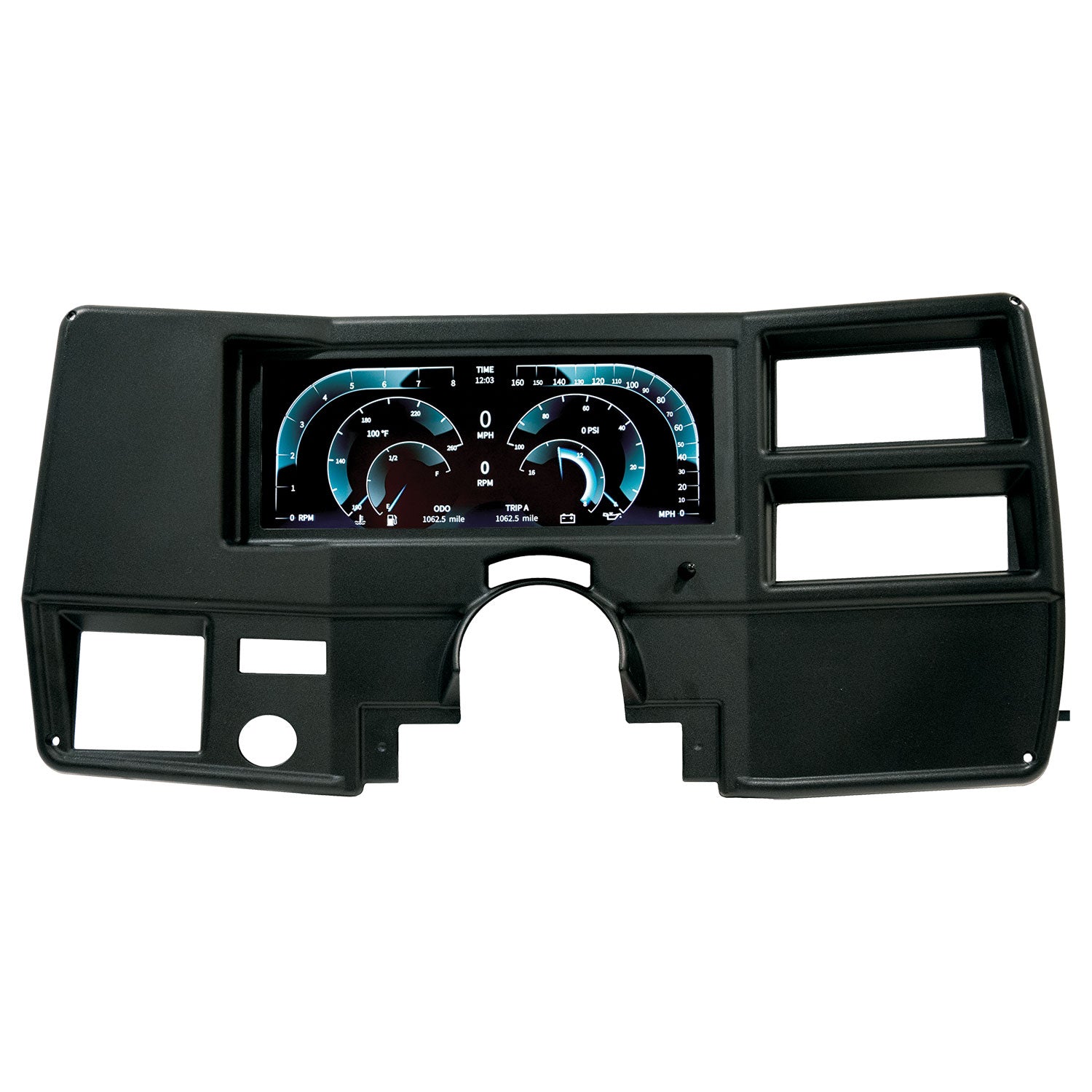

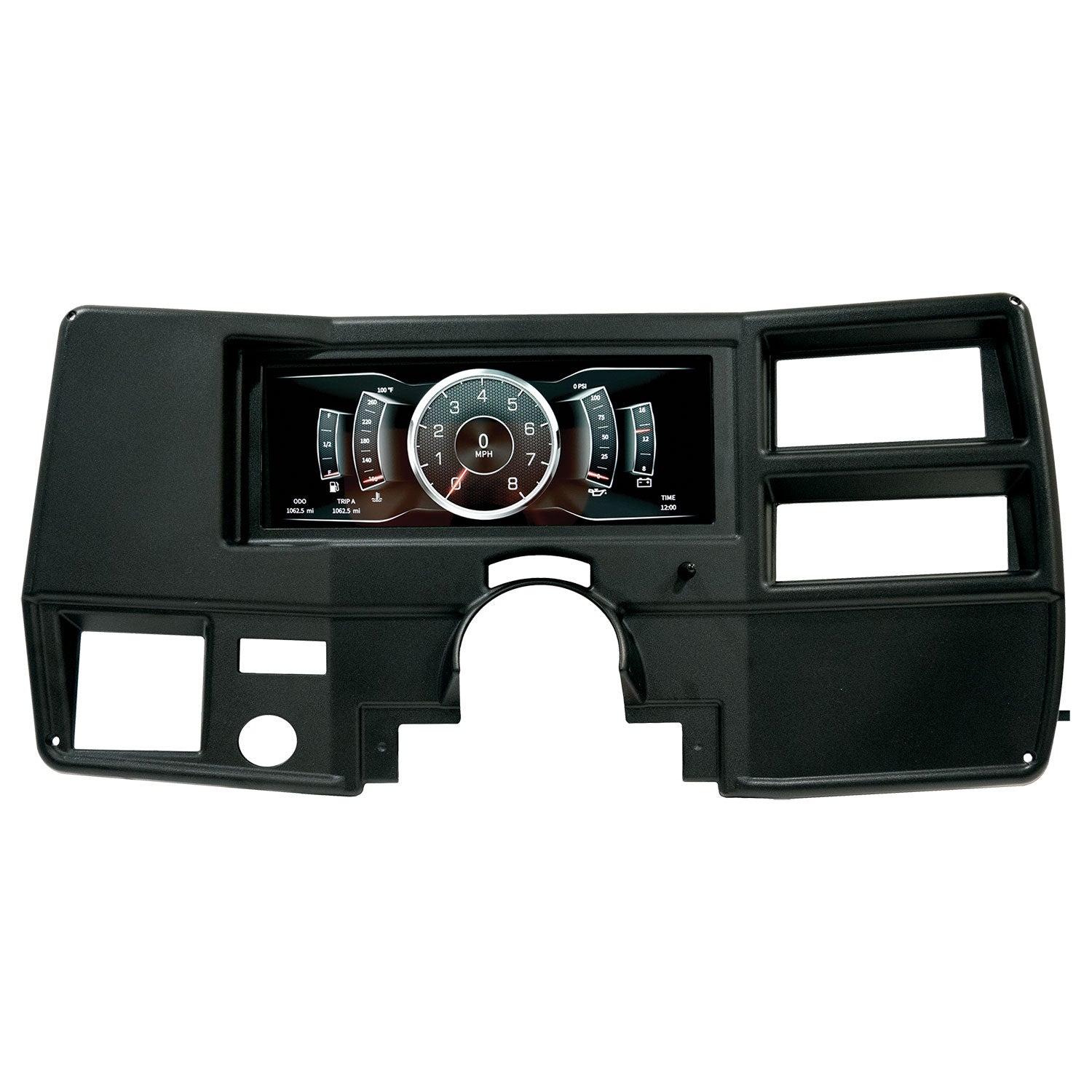

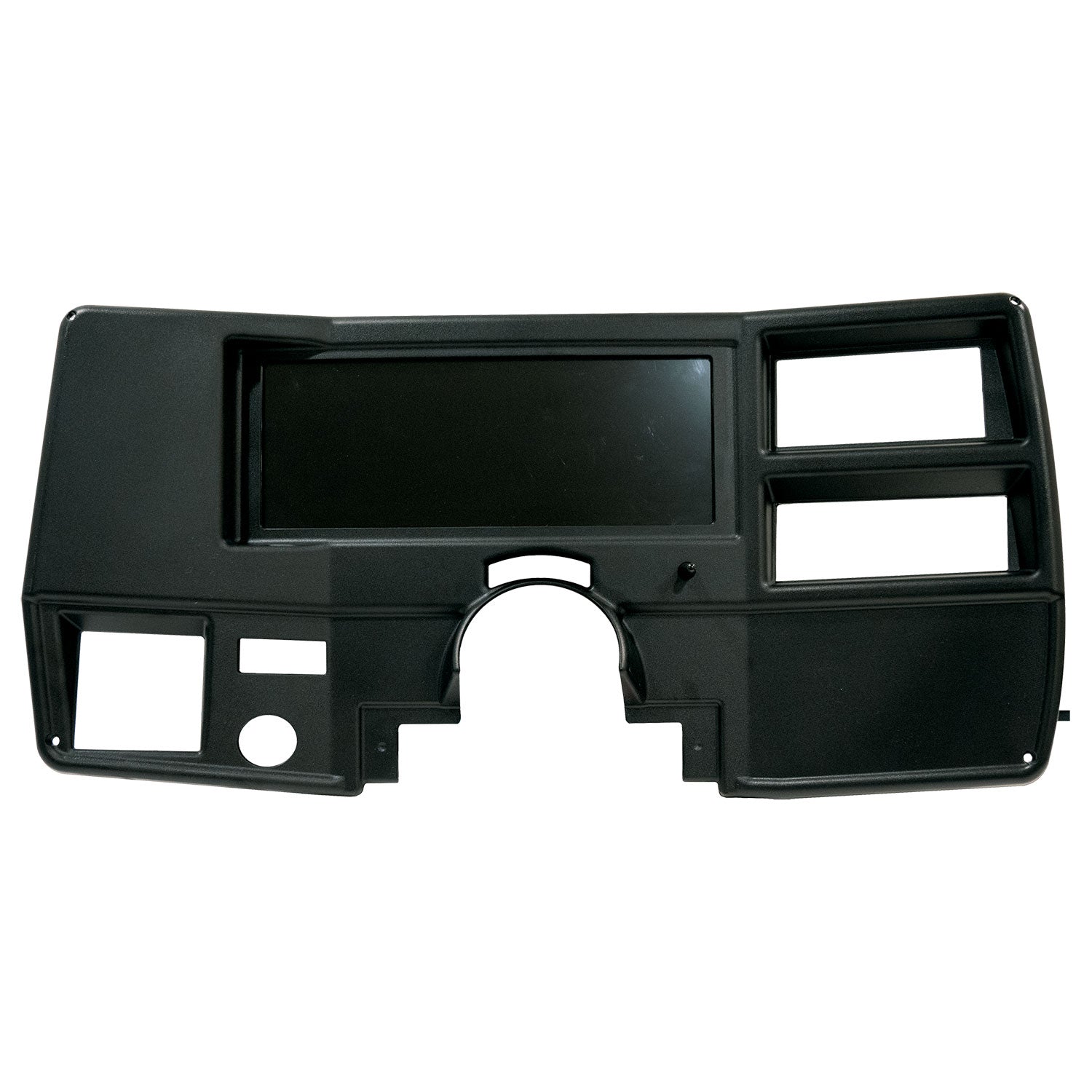

Instrumentation Is The Focal Point Of Any Interior. Make Your Dash Stand Out From The Crowd With The New Invision Digital Dash From Autometer. This Complete Direct Fit Digital Dash System For 1973-1987 Chevy & Gmc Full Size Trucks Is A One Model Solution For Your Entire Dash. Monitor The Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, And Volts All In One Place. Upgrade Your Dash With The Latest, Modern Lcd Offering From Autometer.
Features & Benefits
- Requires No Cutting, Drilling Or Modification To Factory Pieces
- Tachometer Capable Of Calibrating For 1, 2, 3, 4, 5, 6, 8, 10, Or 12 Cylinder Engines
- Monitors Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, And Volts All In A High Resolution And Colorful Display
- 12.3" Lcd Display With Four User Selectable Screens
- Features High Beam & Turn Signal Indicators As Well As User Selectable Warning Light
- All Kits Include A Wiring Harness And Sending Units For Water Temperature And Oil Pressure As Well As A Joystick For Dash Customization
- Adjustable Rpm Range And Displays In Imperial Or Metric Measurements
- Helps Protect Your Vehicle With Visual Or Audible Alarms - Low Fuel Level/Oil Pressure/Voltage And High Water Temperature
- Speedometer Easily Calibrates To Oem Or Aftermarket Vehicle Speed Sensors And The Tachometer Is Capable Of Calibrating To Many Engine Types
- 7 User-Selectable Fuel Level Resistance Ranges To Pair With Original And Aftermarket Sending Units
Lcd, Dash, Display, Panel, Instrument, Digital, Square, Body, Truck, Chevy, Chevrolet, Gm, Gmc, 73, 87
Specifications
| Add-On | N/A |
| Bezel Color | Black |
| Cross Sell | 5289, 5284, 5291 |
| Gauge Type | LCD Dash |
| Includes Adapter/Fitting | 3/8in NPT and 1/2in NPT adapter fittings |
| Includes Mounting Hardware | Brackets Included |
| Includes Sensor Unit | 2258, 2242 |
| Instruction Manual Part Number | 2650-1991-77 |
| Lens Style | Flat, Clear |
| Lighting Color | Multi Color LCD display |
| Lighting Type | Digital LCD |
| Mounting- Direct or Universal | Direct Fit |
| Product Type | Dash Display |
| Range | User Configurable |
| Related Item | 2160, BEX-1500, EP-800, 7000 |
| Title | INVISION LCD DASH KIT, 73-87 CHEVY & GMC FULL SIZE TRUCK, DIRECT FIT DIGITAL DASH |
| Upsell | 6021 |
Installation / Product Video: Watch on YouTube
