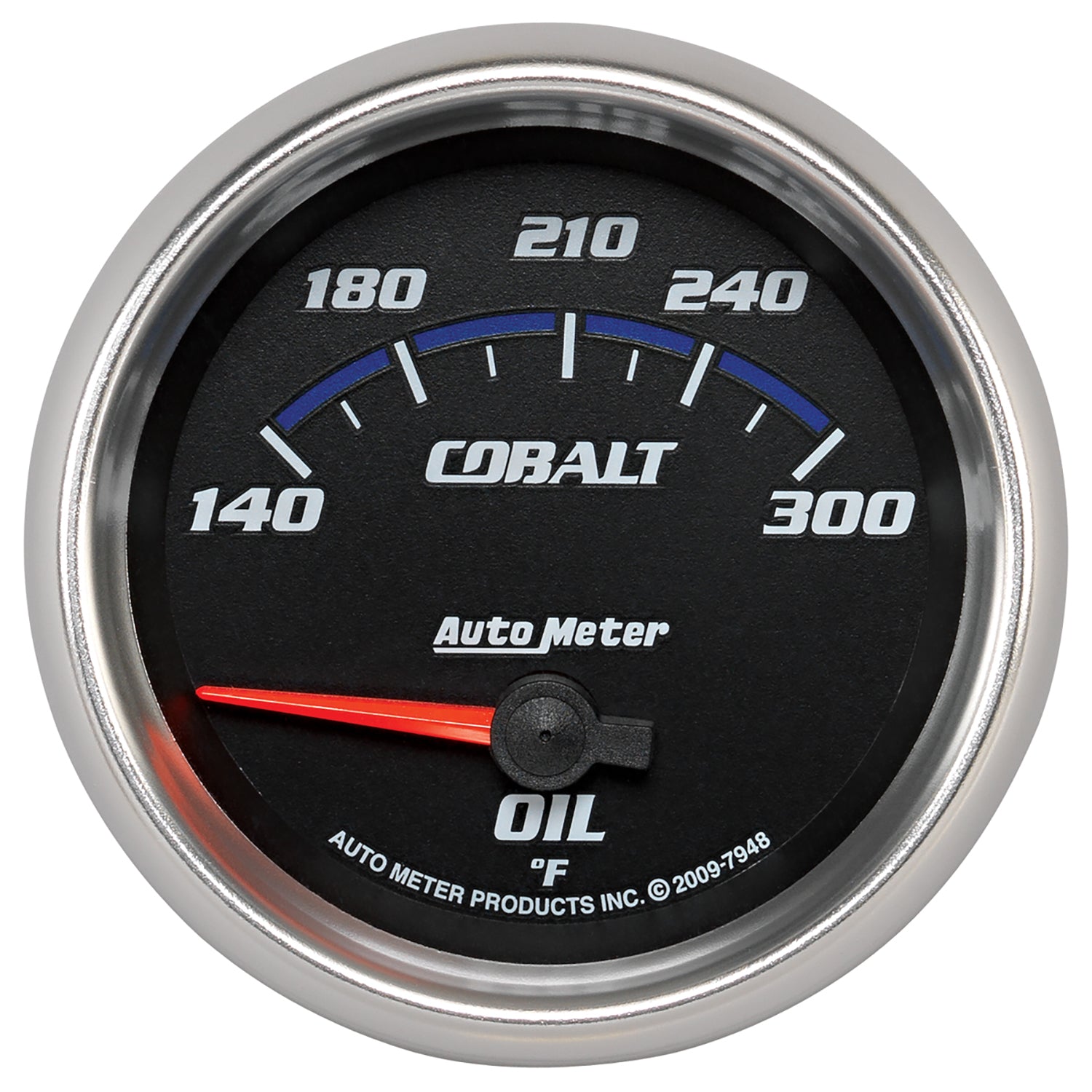

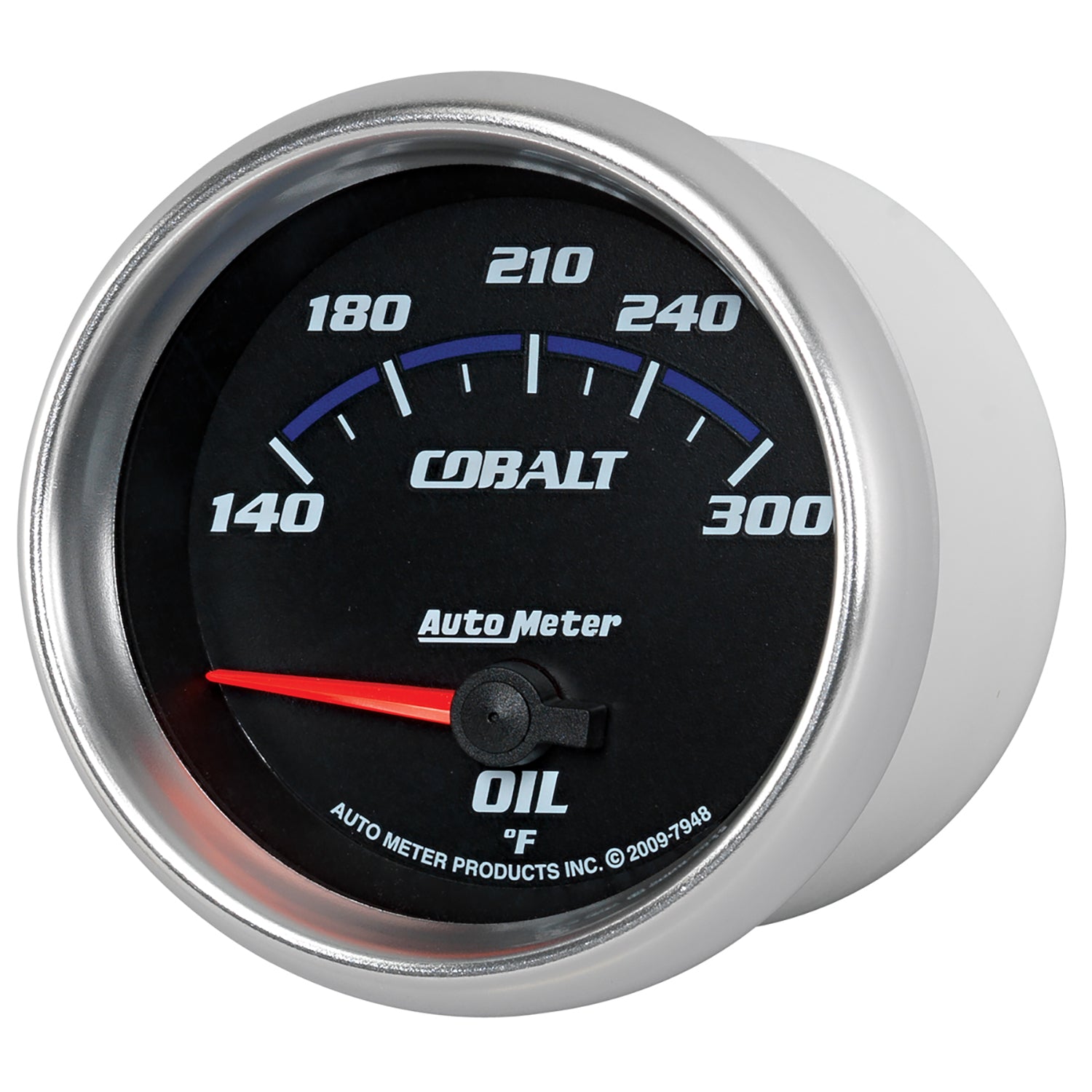

AutoMeter 7948 - GAUGE, OIL TEMP, 2 5/8", 140-300?F, ELECTRIC, COBALT

Name: AutoMeter 7948 - GAUGE, OIL TEMP, 2 5/8", 140-300?F, ELECTRIC, COBALT
Brand: AutoMeter
SKU: 7948
Price: 126.03 USD
Availability: InStock

$126.03 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

2-5/8" OIL TEMPERATURE, 140-300 F, COBALT

An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.

Features

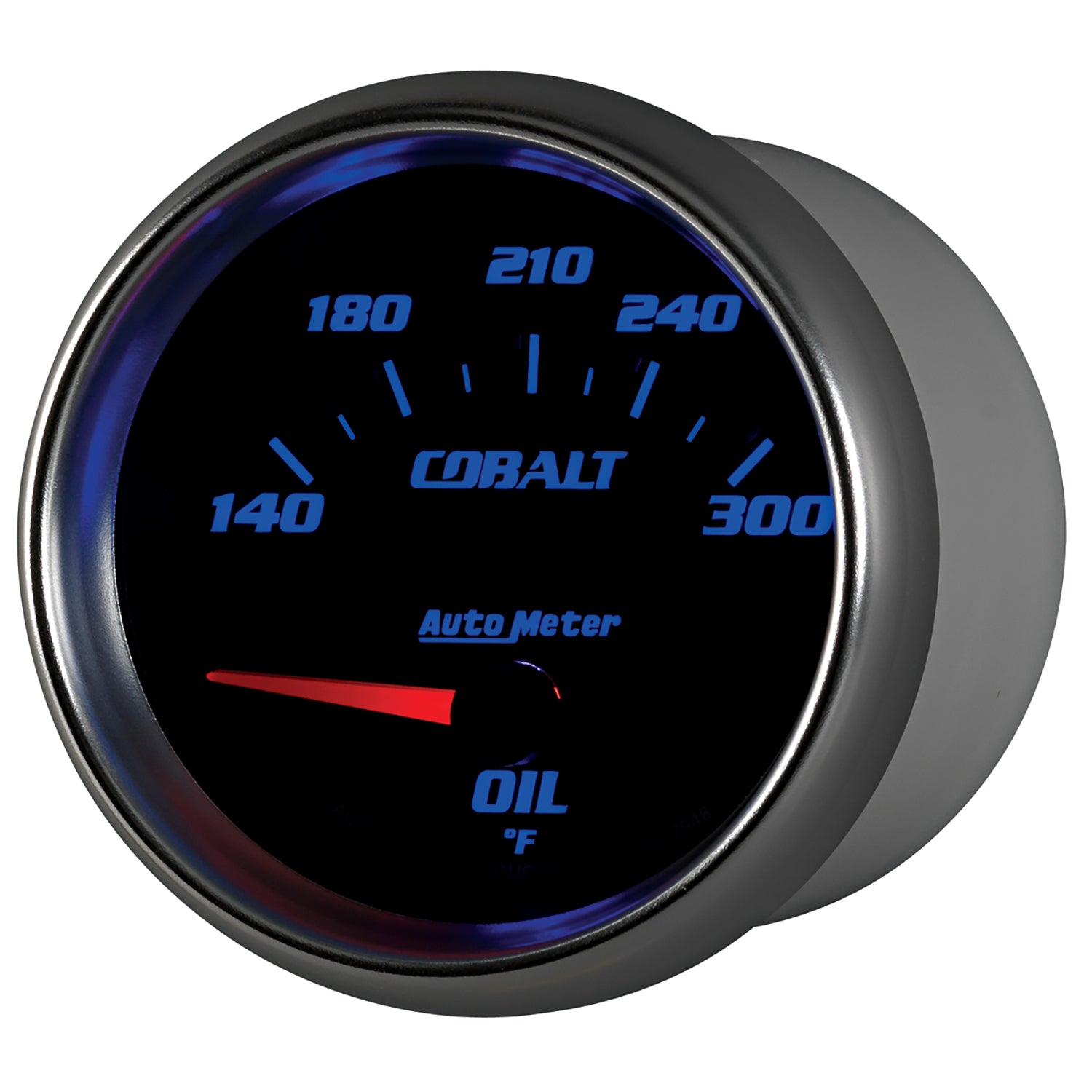

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Specifications

Range	140-300 °F
Cup/Hole Size - Standard - IN	2-5/8" IN
Outer Bezel Diameter - Standard	2-5/8" IN
Size - Standard - IN	2-5/8" IN
Outer Bezel Diameter	2-7/8" IN
Related Item	2160, BEX-3000, EP-800, 0423XL
Includes Sensor Unit	2258
Includes Adapter/Fitting	3/8" NPT and 1/2" NPT adapter fittings
Includes Mounting Hardware	3245
Cup/Hole Size - Metric - MM	66.7mm MM
Size - Metric - MM	66.7mm MM
Cross Sell	9114, 2268, 2266, 2267, 7937, 7927
Upsell	9114, 2268, 2266, 2267, 7937, 7927
Dial Color	Black
Lighting Color	Blue
Bezel Color	Bright Anodized
Series	COBALT
Movement	Electric, Air-Core
Lens Style	Flat, Clear
Pointer Color	Fluorescent Red
Lighting Type	LED
Gauge Type	Oil Temperature
Bezel Style	Super Bezel
