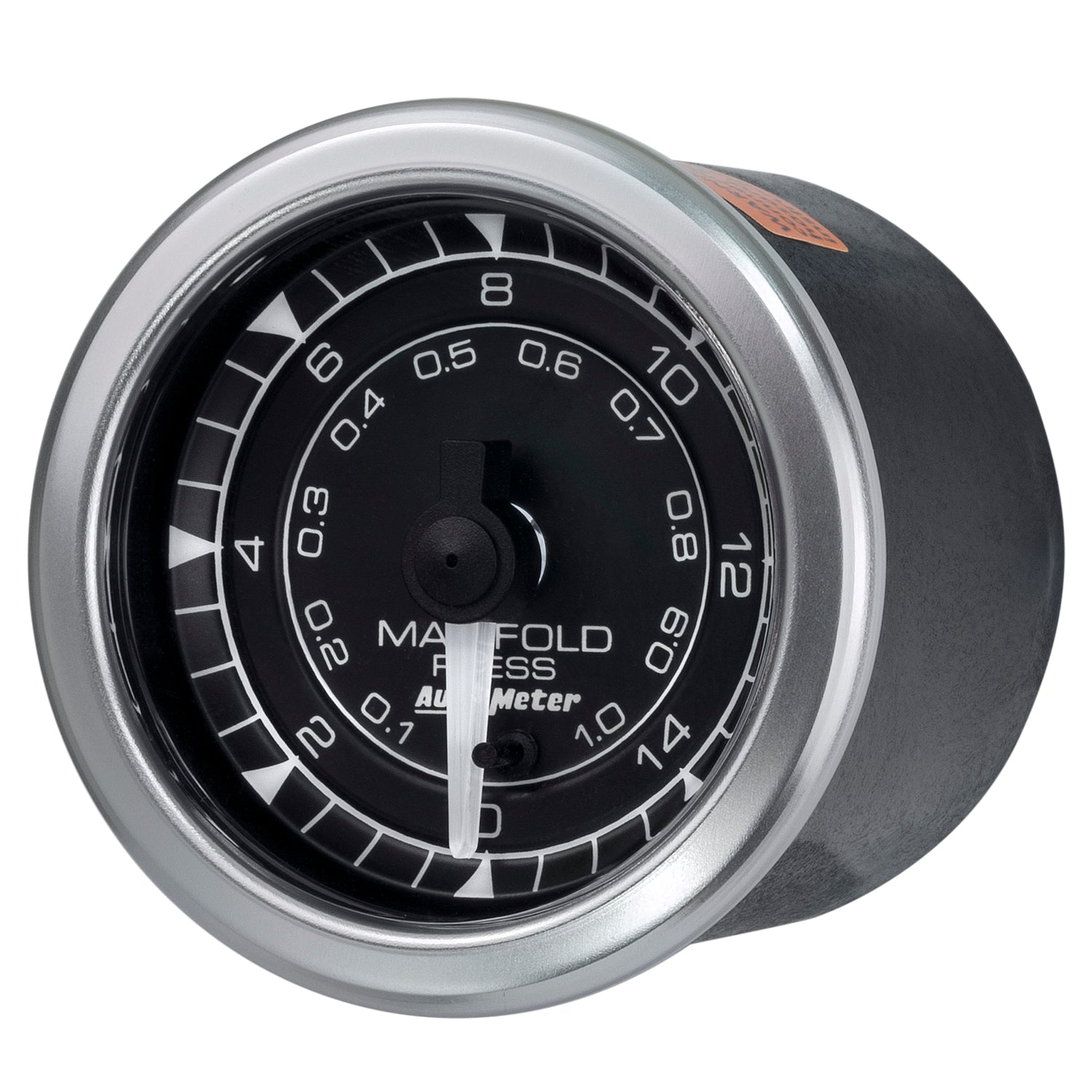

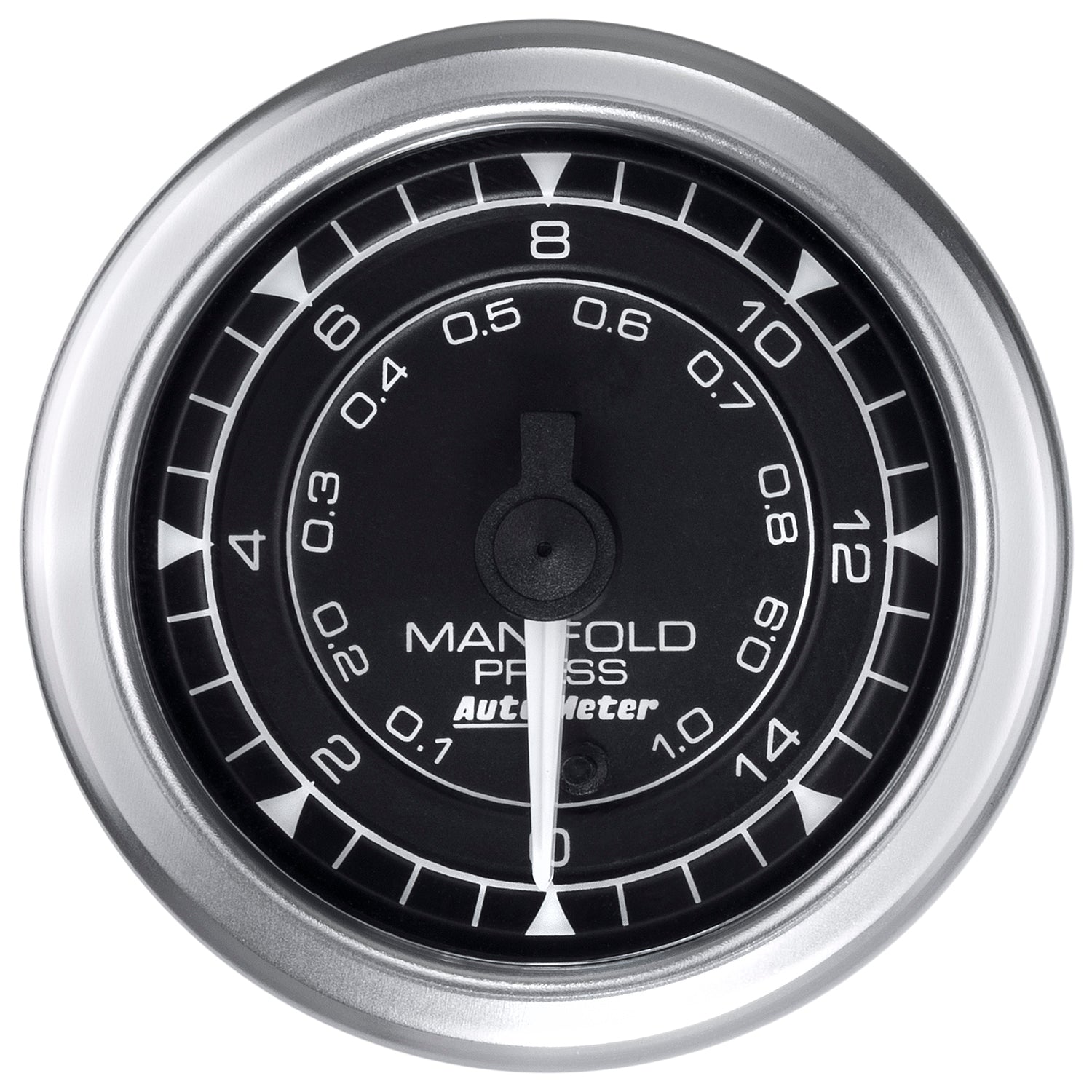

AutoMeter 8150 - GAUGE, MANIFOLD PRESSURE, 2 1/16", 15PSI, DIGITAL STEPPER MOTOR, CHRONO
Product Availability Request
Fill the form and our team will contact you.
2-1/16" MANIFOLD PRESSURE 15PSI DIGITAL STEPPER MOTOR CHRONO
Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter’s Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
Features
- Unique three dimensional dial design gives added depth and style to your custom dash
- Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
- Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions

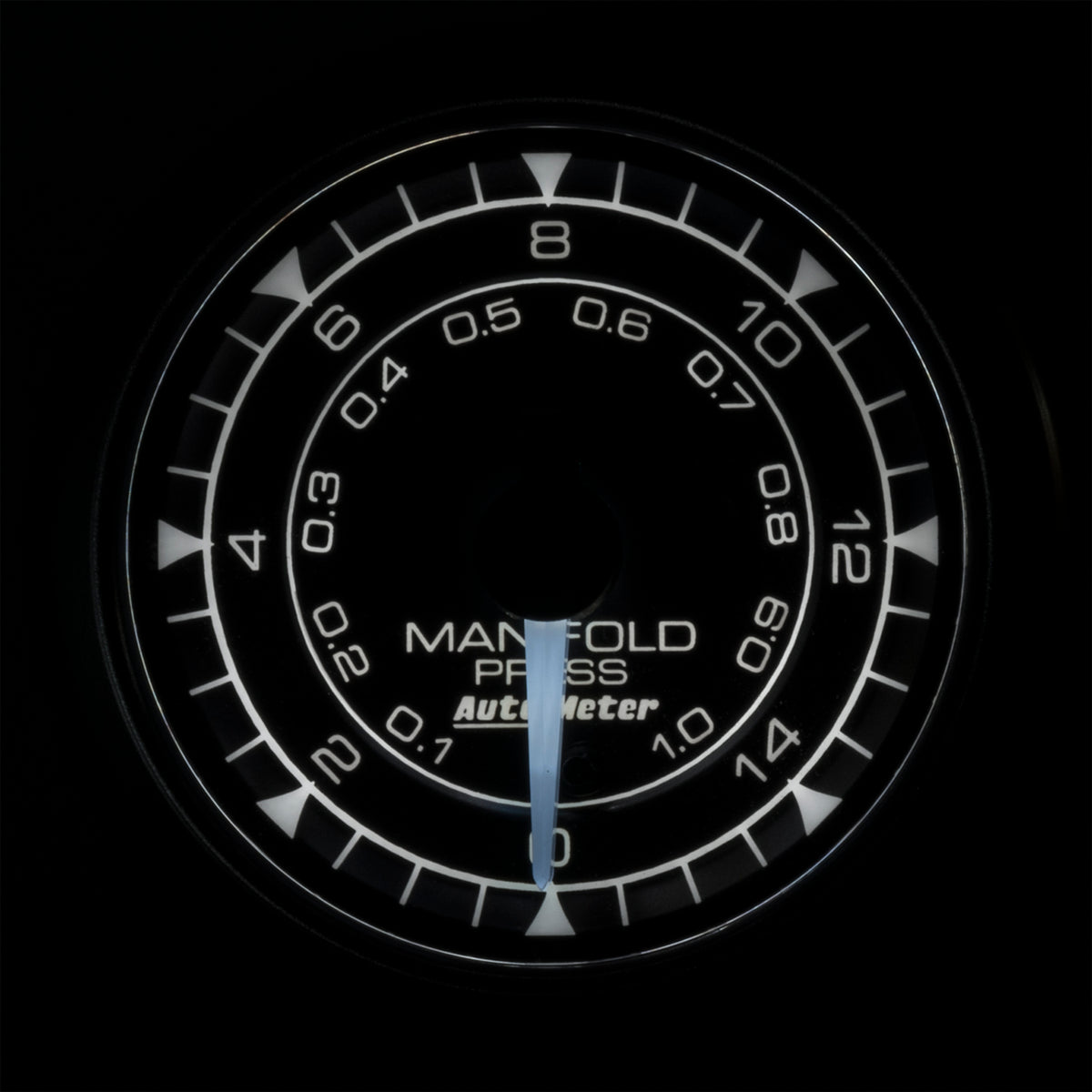

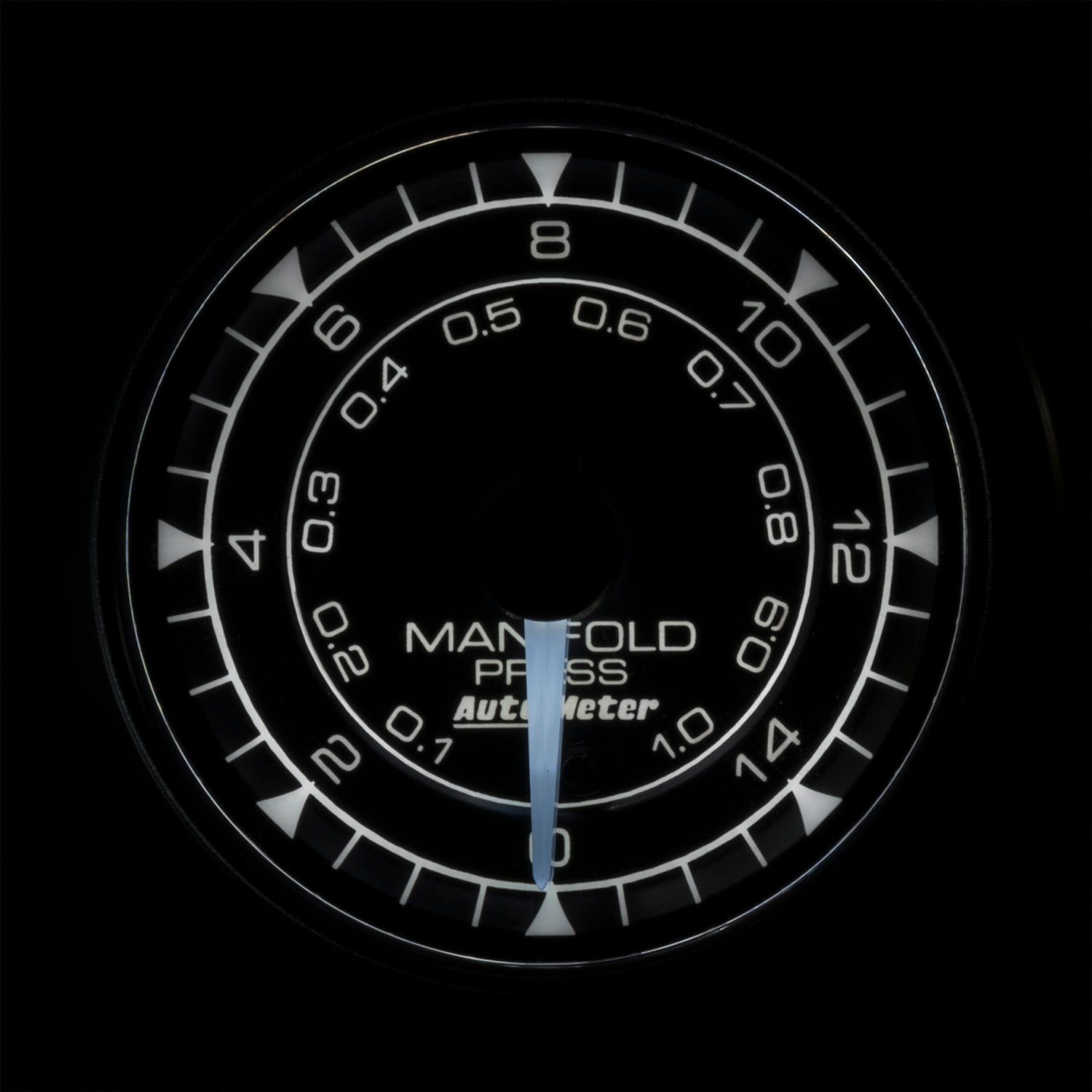

- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, 1/4" NPT adapter, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 0-15 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-5000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2245 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5227 |
| Cross Sell | 9114, 8170, 8153, 8154, 8140, 8162 |
| Upsell | 9114, 8170, 8153, 8154, 8140, 8162 |
| Dial Color | Black |
| Gauge Type | Boost |
| Bezel Color | Bright Anodized |
| Series | CHRONO |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Lighting Type | LED |
| Bezel Style | Stack |
| Lighting Color | White |
| Pointer Color | White |
Short Description: GA 2" MAP 15PSI S CH
Invoice Description: 2-1/16" MANIFOLD PRESS,0-15 PSI, CHRONOS
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
