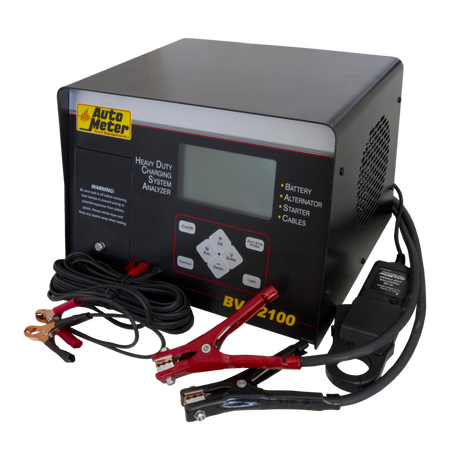

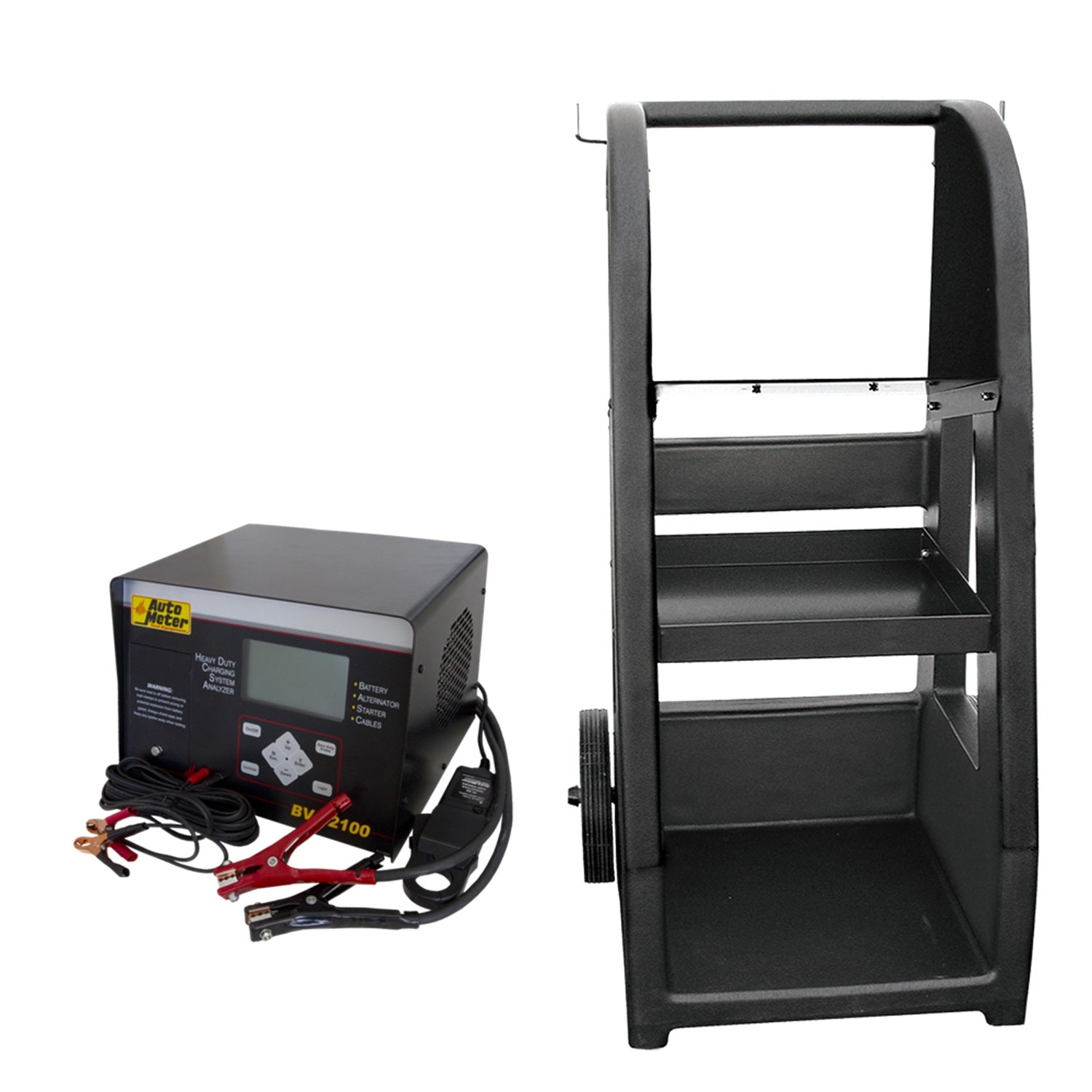

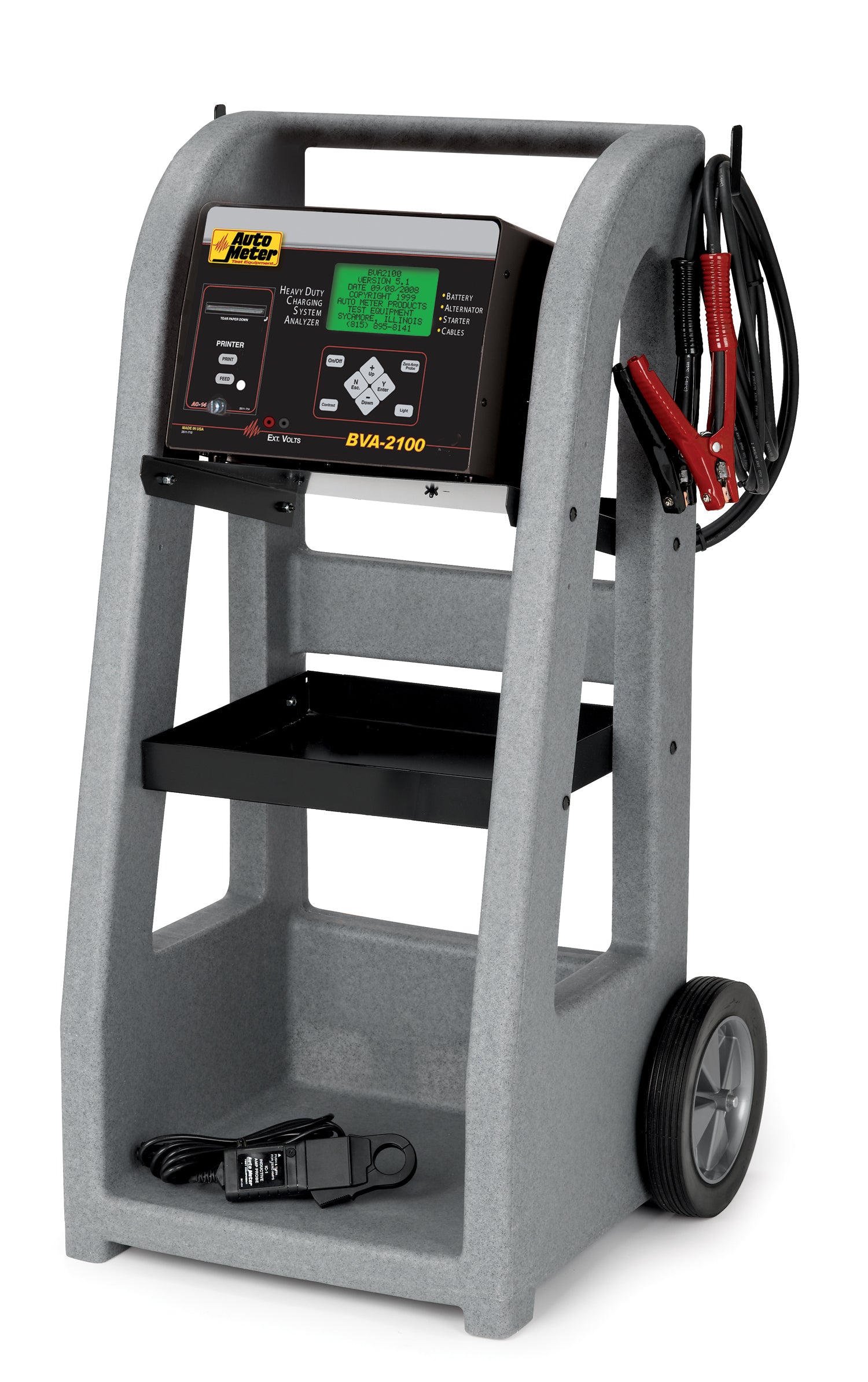

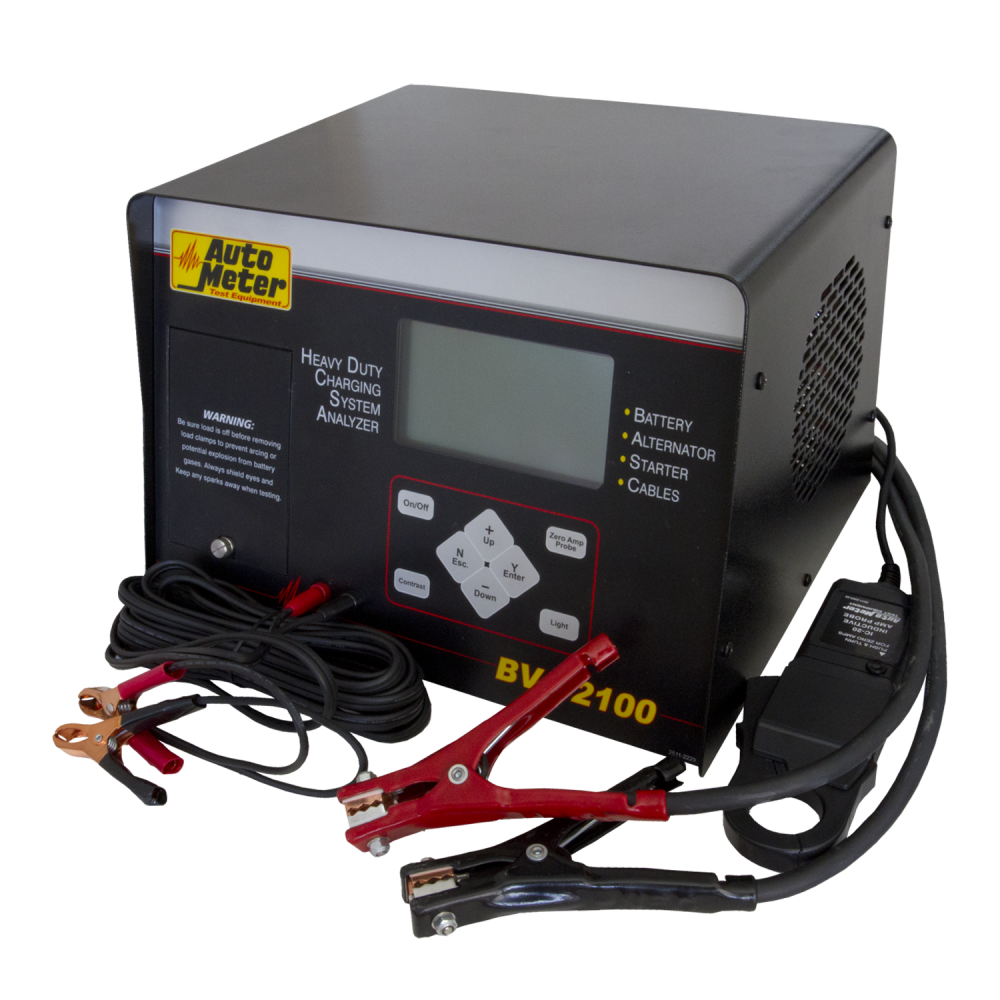

AutoMeter BVA2100K - BVA2100 & ES8 STAND, KIT

Ultimate battery and system testor

The Bva-2100 Is The Ultimate Electrical System Tester Specifically Designed For The Heavy Duty Market. Through The Use Of State Of The Art Digital Circuitry And A 400 Amp True Load System System, The Bva-2100 Delivers The Words Most Accurate, Relaible, And Fastest Testing Results For Batteries, Charging Systems, Starting Systems, And Voltage Drop Testing For Heavy Duty Applications.

Features & Benefits

• Ultimate battery and system testor
• No external power required - runs on rechargeable 6V SLA batter, which charges when cables are hooked up to the battery. Also includes its own 120 VAC battery charger.
• Features advanced Digital Pulse Load (DPL) technology
• True-Load - This AutoMeter equipment is unique compared with other products on the market
• This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator
• V-Drop Technology - This unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance.
• Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests.
• This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis.
• This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire.
• Autometers V-Drop Technology Prevents The Need To Connect Additional Probes And/Or Disable Ignition Or Fuel Systems To Engage In Excessive Engine Crank Periods.
• In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
• Accurately pinpoints electrical system problems (battery, starter, alternator, wiring, and connections)
• Includes internal battery charger, inductive amp clamp, and external volt leads
• Includes two seperate and specific options for automotive and heavy-duty truck applications
• Quickly and accurately tests nearly all 6V and 12V batteries and battery banks up to 4 batteries and 24V (including AGM).
• Features Liftgate Testing - Using Autometers Truck/Trailer Adapters, The Bva-2100 Quickly Isolates Exact Truck Or Trailer Electrical System Issues Before They Become A Problem.

Heavy-Duty Automated Electrical System Analyzer, benchtop tester, tester, system analyzer, charging system analyzer, heavy duty tester, bva2100, bva-2100, bva2100k, bva-2100k, auto meter, autometer, auto meter test equipment, test equipment, autometer test, autometer test equipment,

Specifications

Installation Guide: Download PDF
