BDS Suspension 1432H - 6 Inch Lift Kit Jeep Wrangler YJ 87-95 NX2 Nitro Shocks

BDS steps up the performance and capability of the 1987-1995 Jeep Wrangler YJ with a 6-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This 6-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, a transfer case drop kit to ease the drive line angles and 1 inchextended shackles to let your springs really flex. Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 6 inch

1. May require a larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.
2. A slip yoke eliminator and dual cardan style rear driveshaft is required.
3. Extended shackles are recommended to clear the military wraps on the springs.
4. Pitman arms will NOT fit YJ models equipped with manual steering.

• Glideride leaf springs to provide full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• Transfer case drop kit to ease the drive line angles
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Easy, 100 percent Bolt-on installation

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

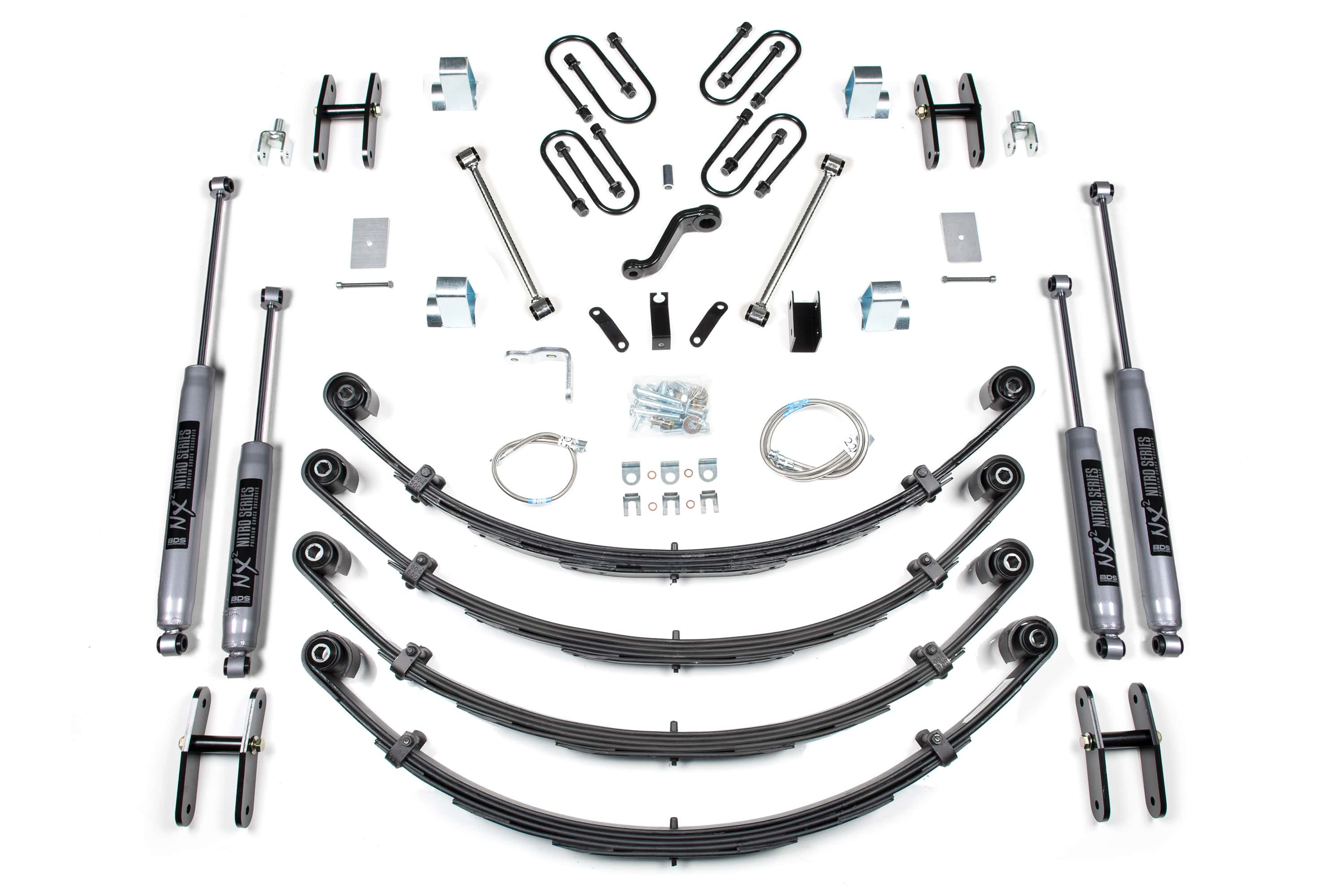

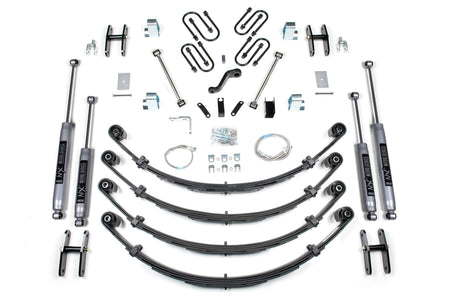

Kit Components:

• Includes four BDS004500, 87-95 Jeep YJ 5in Leaf Spring, UPC Code 658848611577
• Includes one BDS014501, 87-95 YJ 5-6 Inch Complete Box Kit, UPC Code 658848614240
• Includes one BDS124013, Jeep YJ Front Solid Anti-sway Bar Kit, UPC Code 711745604575
• Includes two BDS124102, Jeep YJ Frt 1in Shackle / CJ RR 1-3/8in, UPC Code 711745604865
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
• Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
