BDS Suspension 1509H - 2.5 Inch Lift Kit w/ Radius Arm Ford F250/F350 Super Duty 11-16 4WD Diesel 4 Inch Block NX2 Nitro Shocks

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

Details:

Rear Lift Option

• 4 Inch Block Kit

Level stance

• 5 Inch Block Kit
• Tail high stance

Shock Option

• NX2 Nitro Series
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Note:

Designed for Diesel models w/o top mounted overload rear springs
U bolts for trucks with overloads required, part UBT4028 (Qty 4)
Models equipped with a 3-3/4 inch rear block from the factory do not require a rear block kit in order to achieve a more level stance.
For a more tail-high stance, substitute 013519 5 inch rear block kit

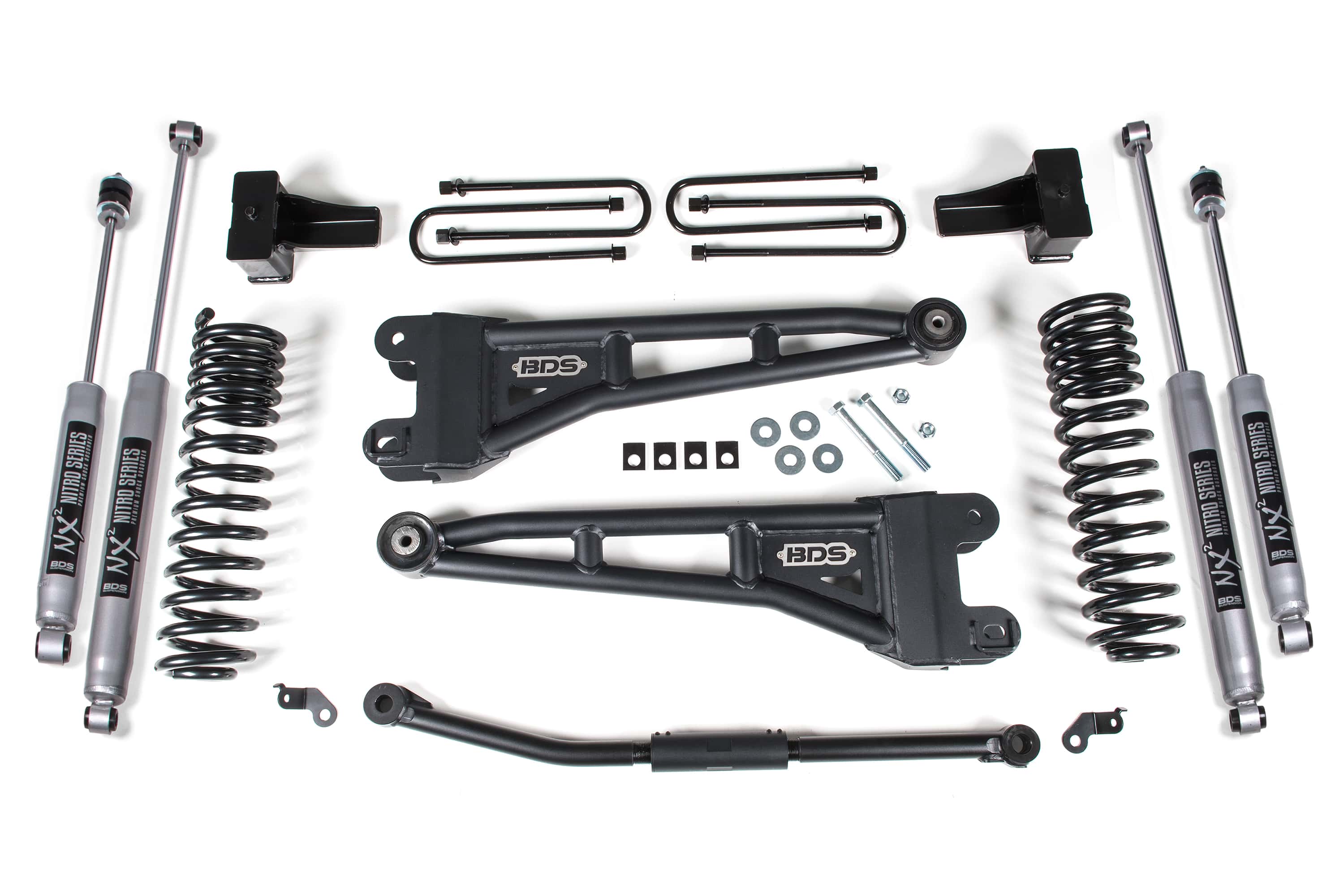

Kit Components:

• Includes one BDS013255, 2011-2015 F250 2.5 InchFront Box Kit, UPC Code 658848613229
• Includes one BDS013408, 2011-15 F250 4 Inch Rear Block Kit, UPC Code 658848613403
• Includes one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair, UPC Code 658848616480
• Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2, UPC Code 711745609532
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
