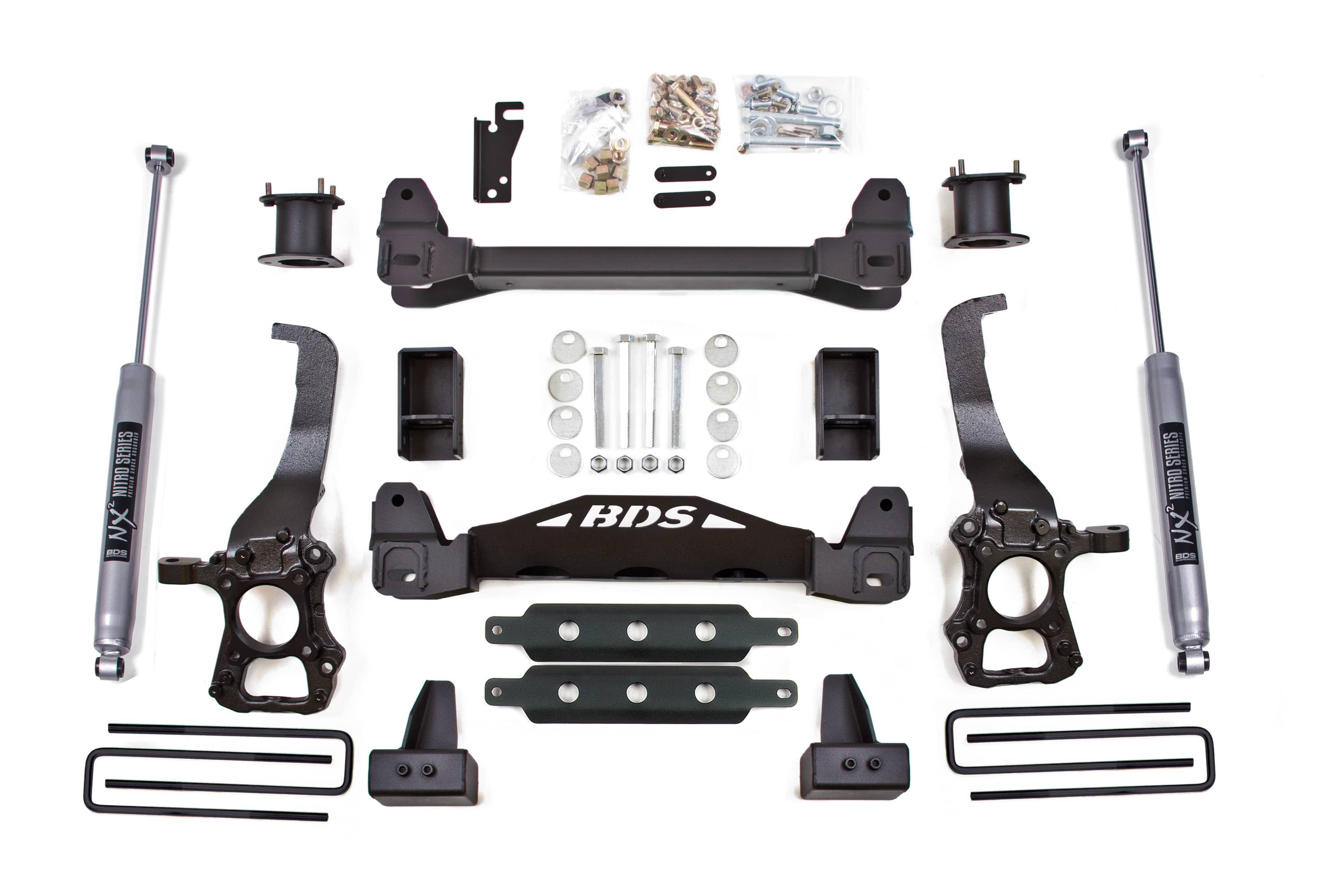

BDS Suspension BDS1523H - 4 Inch Lift Kit Ford F150 15-20 2WD 4 Inch Block Kit NX2 Nitro Shocks

Improve the performance and capability of your 2015-2020 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

• (Trimming may be required)
• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Lift Option
4 Inch Block Kit

• Level to tail high appearance

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Kit Components:

• Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519
• Includes one BDS023404, 2014-2020 Ford F150 4 Inch Spacer Box Kit, UPC Code 658848615636
• Includes one BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS, UPC Code 658848615919
• Includes one BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS, UPC Code 658848615926
• Includes one BDS023644, 2015-2020 Ford F150 2wd Box Kit, UPC Code 658848615933
• Includes two BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609877

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
