BDS Suspension 1635H - 2 Inch Leveling Kit Ram 2500 w/ Rear Air Ride 14-24 4WD W/NX2 Nitro Shocks

Level the front of your 2014-2024 RAM 2500 4WD air ride equipped truck by installing this 2-inch leveling kit from BDS. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.

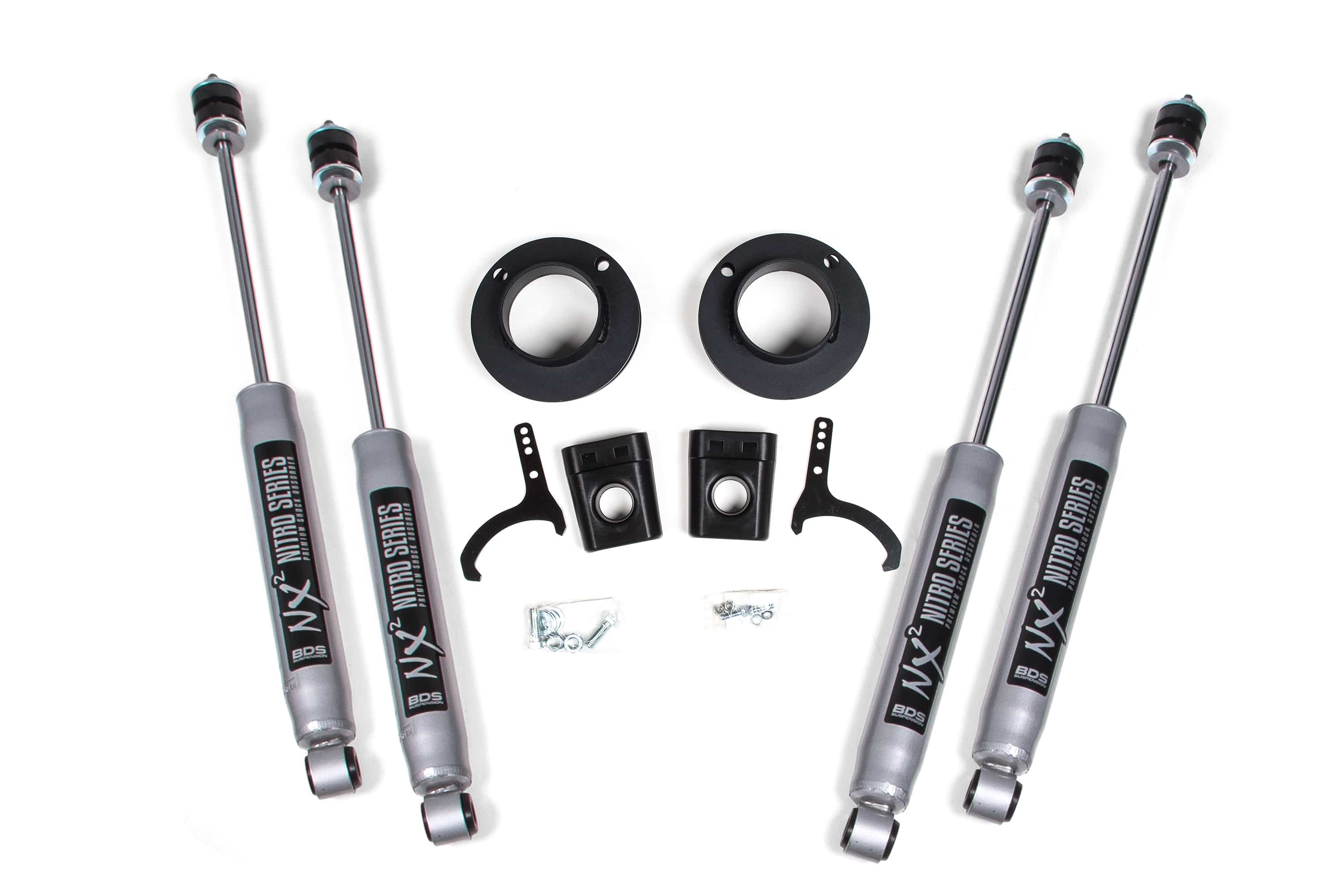

The lift kit includes steel fabricated coil spacers, extended bump stops, air ride sensor bracket, and custom-tuned NX2 Nitro or FOX 2.0 Performance series shocks.

• Front Lift Method: Coil Spacer
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

1. Fits OE Equiped Air Ride systems only

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Kit Components:

• Includes one BDS012205, 2014-2024 Ram 2500 2 Inch w/rear AirRide, UPC Code 658848612086
• Includes two BDS85705, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609501
• Includes two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2, UPC Code 711745609532

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
