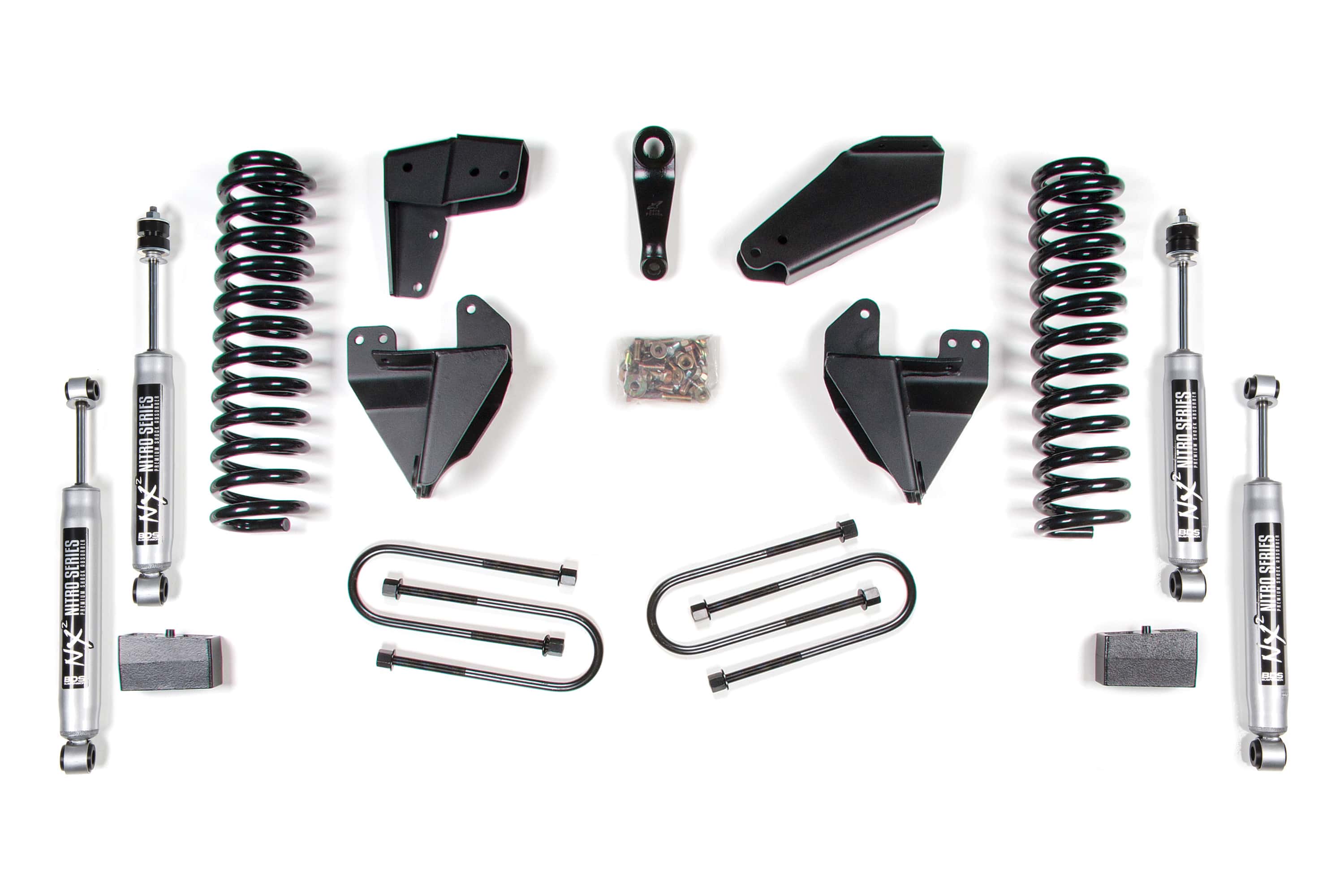

BDS Suspension BDS364H - 4 Inch Lift Kit Ford F150/Bronco 80-96 4WD Rear Leaf Springs NX2 Nitro

Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
2. Does not fit Broncos without power steering.
3. Front alignment cams available in the accessories may be required for alignment.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Options

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Kit Components:

• Includes two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide, UPC Code 658848611324
• Includes one BDS013001, 80-96 Ford F150 Front Box Kit, UPC Code 658848612918
• Includes one BDS033401, 80-96 Ford F150/Bronco 4 Inch Coil Kit, UPC Code 658848616497
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85800, Shock- 20.40 x 12.65 x 2-3/8 - S1/EB1, UPC Code 711745609808
• Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
