BDS Suspension 422H - 4.5 Inch Lift Kit Jeep Wrangler TJ/LJ 97-06 NX2 Nitro

BDS steps up the performance and capability of the 1997-2006 Jeep Wrangler TJ with a 4.5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar that is utilized to recenter the front axle, bump stop extensions, stainless braided brake lines, sway bar quick disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, and heavy duty front upper adjustable and fixed length lower control arms.

The rear kit utilizes Glide-Ride coil springs for maximum travel, stainless braided brake line, rear track bar relocation bracket, BDS ultimate sway bar disconnects for the most possible articulation, and heavy duty front upper adjustable and fixed length lower control arms. Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.

This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4.5 inch

1. A slip yoke eliminator and a CV style rear driveshaft are required for this kit.
2. Some welding required.
3. Rubicon models may require OEM skid plate modification.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• New control arms to properly control the front and rear axle positions
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 33 inch Tires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

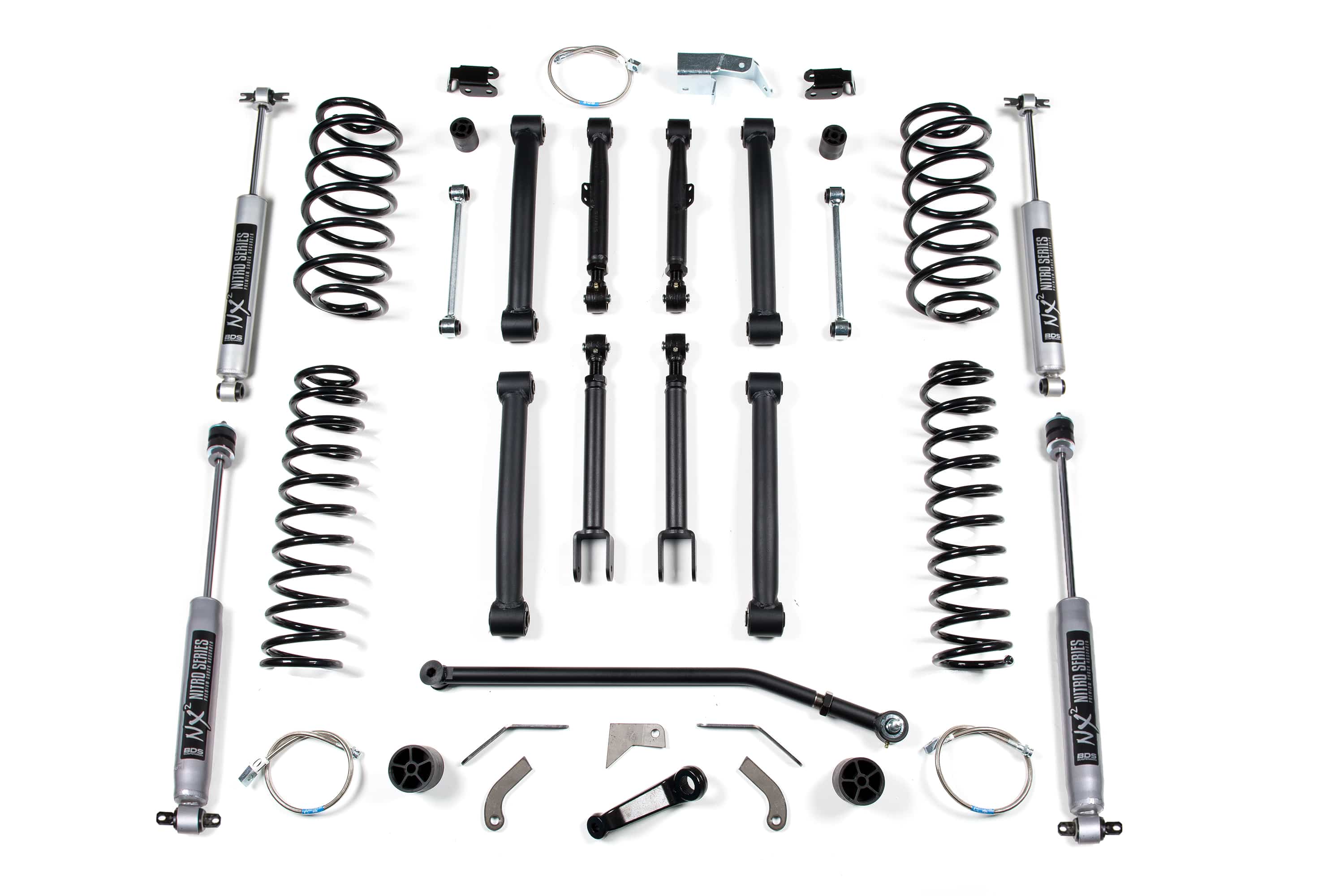

Kit Components:

• Includes one BDS014457, 1997-2006 Jeep TJ 4.5in Box Kit, UPC Code 658848614196
• Includes one BDS034451, 1997-2004 Jeep Wrangler (TJ) 4.5in Front Coil, UPC Code 658848616909
• Includes one BDS034459, 1997-2004 Jeep Wrangler (TJ) 4.5in Rear Coil, UPC Code 658848616930
• Includes two BDS124327, TJ/XJ Fixed LCA Kit w/rubber bushings, UPC Code 711745605084
• Includes one BDS124349, TJ Adj. Rear UCA Kit, UPC Code 711745607484
• Includes two BDS85967, Shock- 26.15 x 15.55 x 2-3/8 - S1/BP7, UPC Code 711745610163
• Includes two BDS85976, Shock- 23.10 x 14.25 x 2-3/8 - BP18/EB1, UPC Code 711745610248

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
