BDS Suspension 523H - 4 Inch Lift Kit Ford Bronco 78-79 4WD Standard Front Shock Rear Leaf Springs NX2 Nitro

Take your 1978-1979 Ford Bronco 4WD truck to new heights with a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, radius arm drop brackets, track bar relocation bracket for steering correction, bump stop brackets and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, truck-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. Front end alignment required which may require axle inchC inch bushings.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

Front Shock Option Standard

The 78-79 Bronco's came with 3 different shock configurations. The first type is the standard shock mounted behind the axle. Second, has staggered single front shocks with the drivers side shock mounted in front of the axle and the passenger side shock mounted behind the axle. The third type uses dual front shocks. Check your vehicle to make the appropriate selection.

Rear Lift Options

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

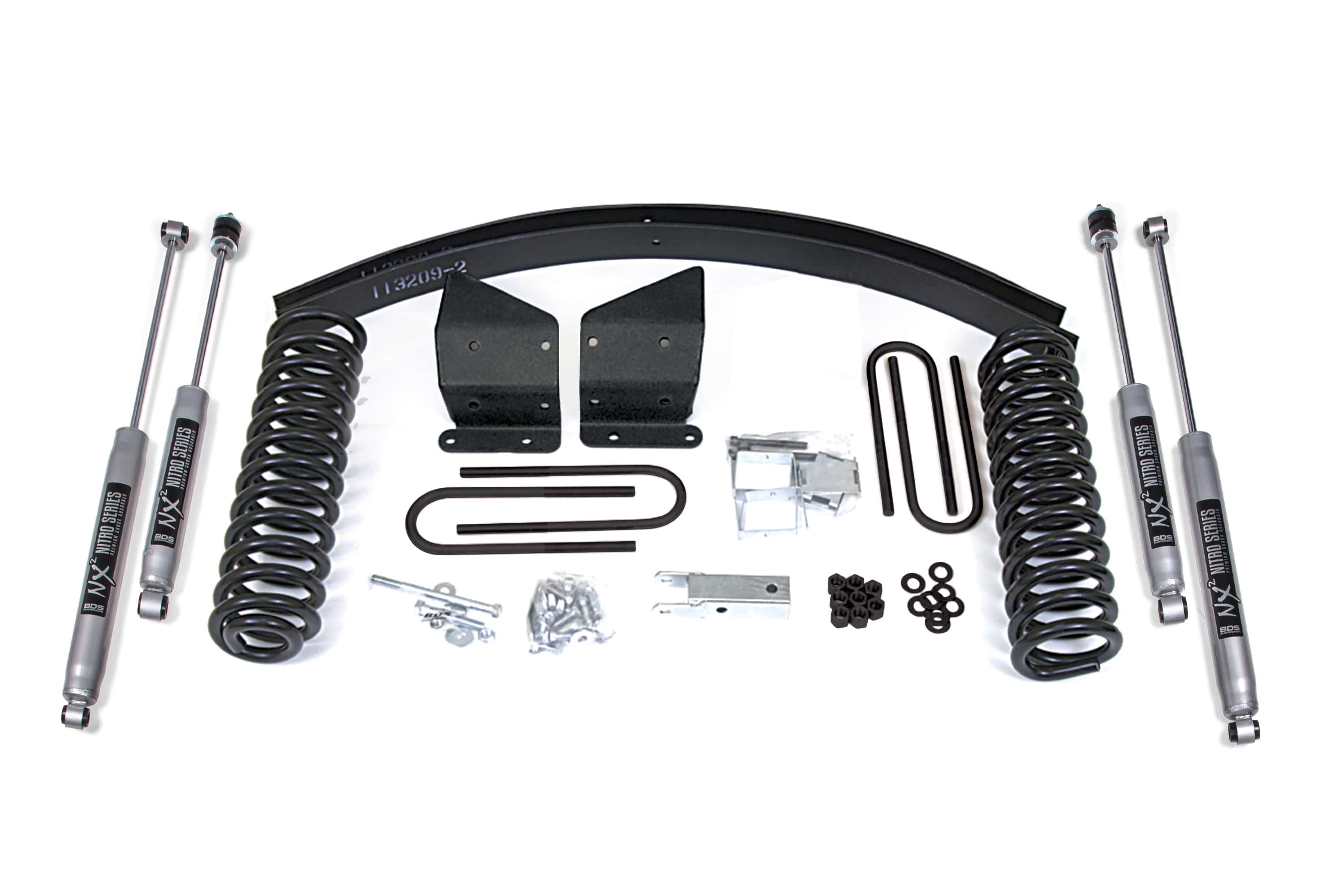

Kit Components:

• Includes two BDS003208, 73-96 Ford F150 2 Inch Rear Spring 3in wide, UPC Code 658848611324
• Includes one BDS013002, 73-79 Ford Radius Arm Drop Kit, UPC Code 658848612925
• Includes one BDS033403, Ford F150(73-79)/Bronco(78-79) 4 Inch Coil, UPC Code 658848616510
• Includes one BDS123001, 73-79 Ford Track Bar Ext Bracket, UPC Code 658848619863
• Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
• Includes two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1, UPC Code 711745609853
• Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
