BDS Suspension 596FS - 6 Inch Lift Kit w/ 4-Link Ford F250/F350 Super Duty 11-16 4WD Diesel 2 Inch Rear Blocks FOX 2.0 Performance

Prepare to hit the road with your 2011-2016 Ford Super Duty F250 and F350 diesel truck and install this 6-inch lift kit with 4-link conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

BDS Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design where the main leaf pack is broken into two stages:

1. First, the primary three leafs are functional with no additional load in the vehicle for excellent everyday ride quality. As moderate loads are applied, the secondary leafs are engaged.
2. Second, if the truck is fully loaded, the bottom overload is engaged for maximum hauling capacity. This setup allows your truck to maintain ride quality unloaded without sacrificing payload.

Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
2. Although extremely rare, front driveline vibration may occur.
3. If equipped with rear sway bar, #123009 required.
4. U-bolts will not work on dually.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option with Factory 2 inch rear blocks

This lift system retains the factory rear blocks with the addition of the new BDS leaf springs to achieve a level stance. Choose the height of your factory lift blocks for proper u-bolt length.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

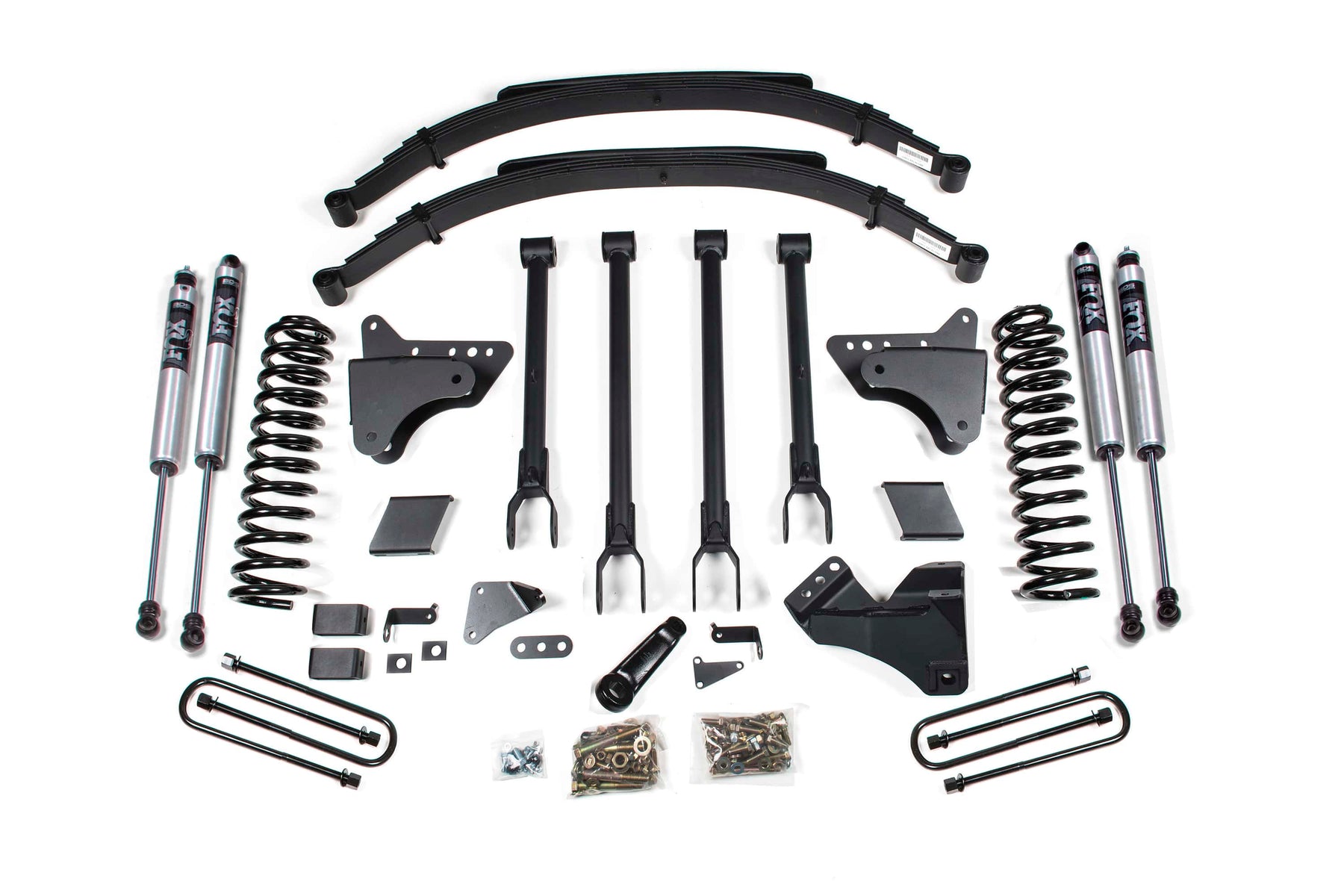

Kit Components:

• Includes two BDS003629, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611393
• Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
• Includes one BDS013014, 11 Ford F250/350 4-link 6 Inch Box (2of2), UPC Code 658848613038
• Includes one BDS013608, 2011-2016 Ford F250/F350 Rear Box Kit -- 2 inch Factory Block, UPC Code 658848613762
• Includes one BDS033611, 2005-2022 Ford F250/F350 6 inch (Diesel) Coil Kit, UPC Code 658848616589
• Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
