BDS Suspension 625H - 4 Inch Lift Kit Dodge Ram 1500 06-08 4WD NX2 Nitro

BDS steps up the performance and capability of the 2006-2008 Dodge RAM 1500 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. Will not fit Mega-Cab models.
2. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance Tire/wheel combination. As you increase the Tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
3. Not recommended for AWD models.
4. TRX models require the removal of OE lower skid plate.
5. Stock 17 inch wheels can not be re-installed. Stock 20 inch wheels
   can be reinstalled with stock Tires.
6. This kit is FMVSS No.126 Compliant

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

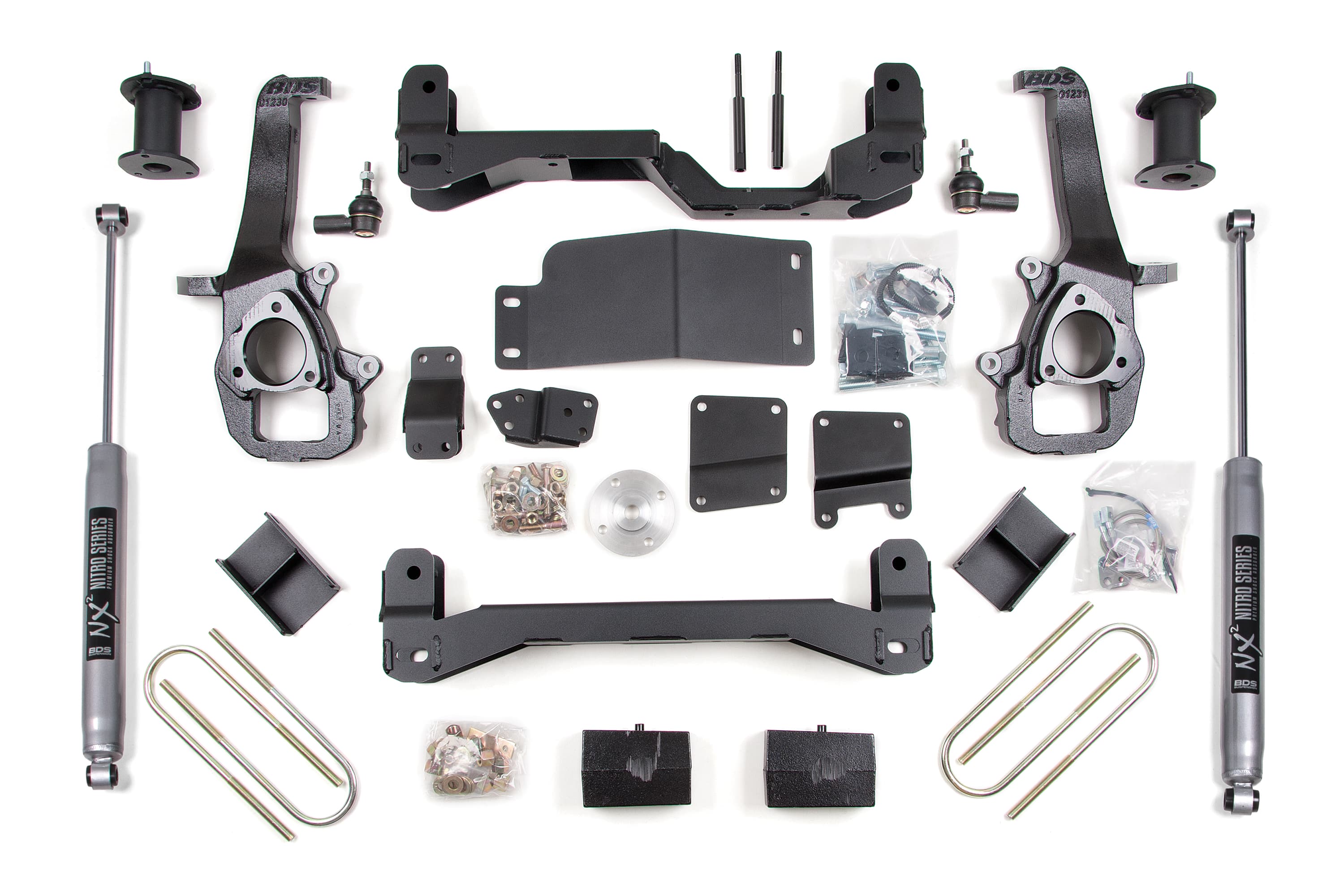

Kit Components:

• Includes one BDS012218, 06-08 Dodge 1500 2 Inch Rear Box Kit, UPC Code 658848612130
• Includes one BDS022401, 06-10 Dodge 1500 4 Inch Front Box Kt (3of4), UPC Code 658848615360
• Includes one BDS022605, 06 Dodge 1500 6 Inch (4of4), UPC Code 658848615421
• Includes one BDS022620, 06-10 Dodge 1500 6 Inch Front Box Kt (1of4), UPC Code 658848615452
• Includes one BDS022621, 06-10 Dodge 1500 6 Inch Front Box Kt (2of4), UPC Code 658848615469
• Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
