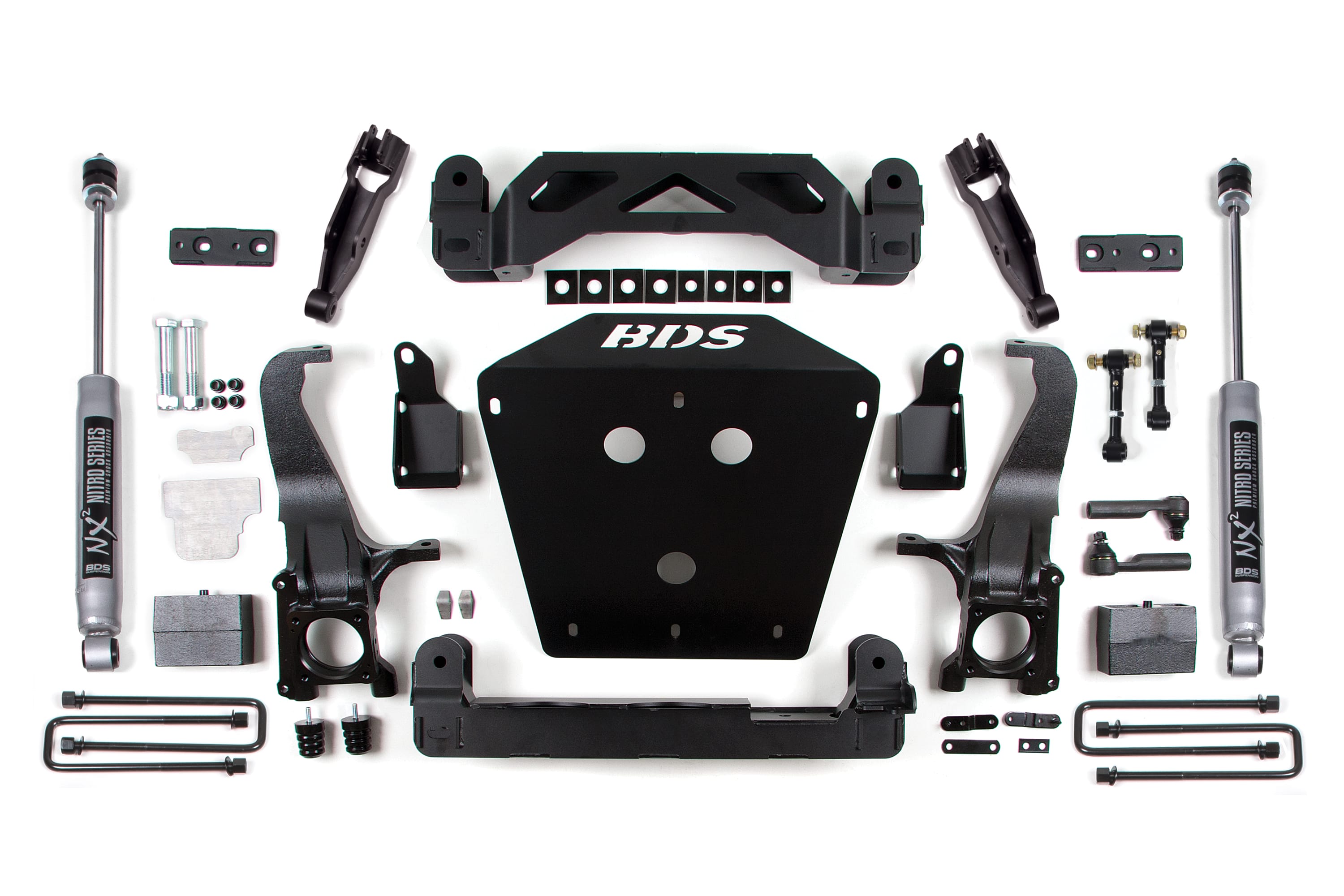

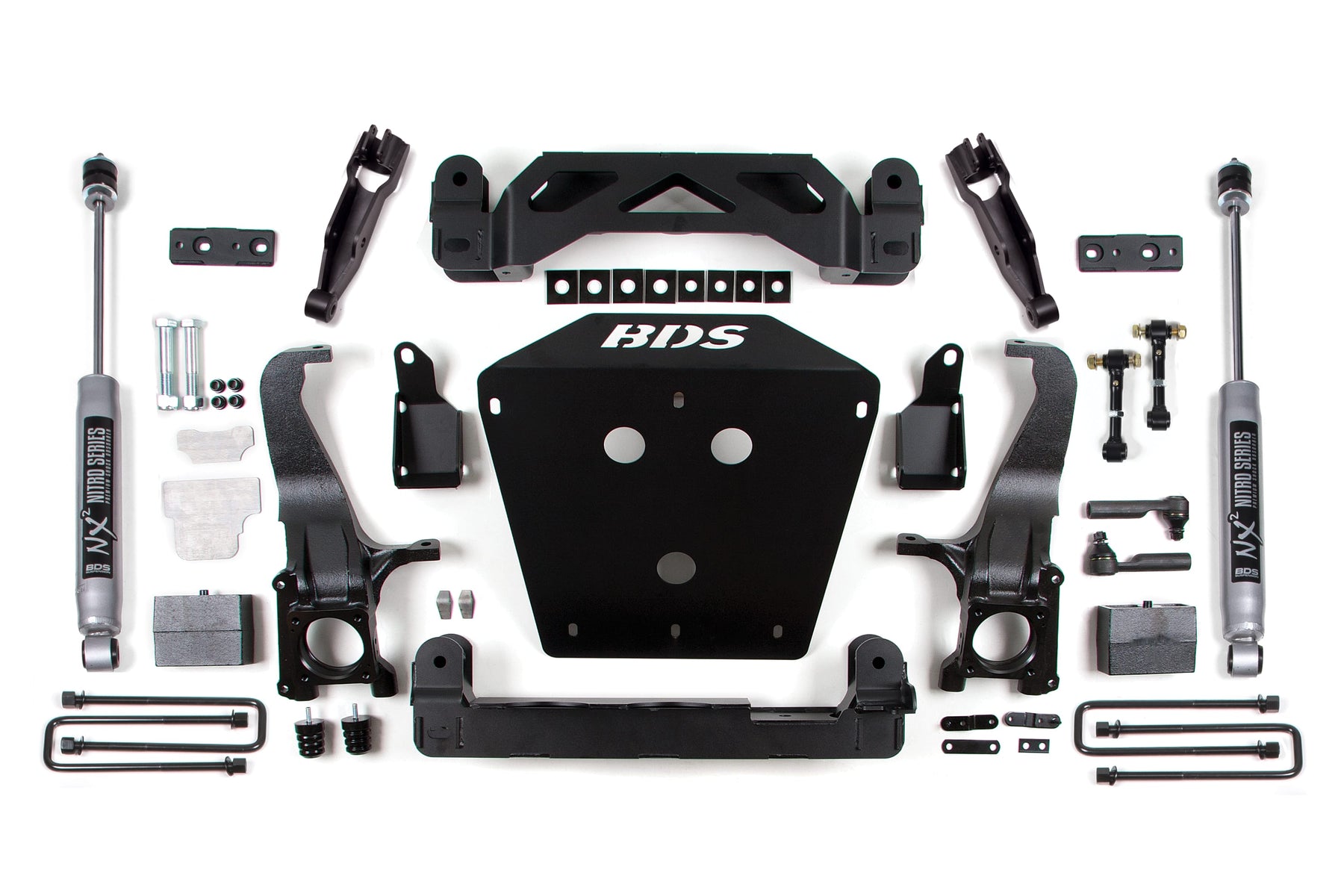

BDS Suspension BDS818FS - 7 Inch Lift Kit Toyota Tundra 16-21 2/4WD Fox 2.0 Performance Shocks

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 Inch lift kit suspension system. Get the Tire clearance and attitude you Inch're looking for with the 7 Inch Lift Kit Suspension System for your Toyota Tundra.

This kit takes advantage of BDS Inch's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

High Clearance Crossmembers

These specially designed 1/4 Inch thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.

Heavy Duty Steering Knuckles

The steering knuckles are critical to setting your lifted truck up right. While taller for the additional lift height, these arms dwarf the factory units to allow additional strength with ductile iron castings, CNC- machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 7 Inch
• Rear Lift Height: 4 Inch

1. Requires frame bracket modification and welding.
2. No strut dissassembly required.
3. Stock 18 Inch wheels can not be installed. factory 20 Inch wheels with more than 6.25 Inch backspacing can not be installed.
4. Models with two piece rear drive line would require rear drive shaft modification.
5. Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
6. Will NOT work on TRD Pro (Bilstein anf Fox Piggback Strut) models.

• High clearance design maximizes ground clearance.
• Robust steering knuckles maintain ESC system compliance.
• Full width belly skidplate for added protection.
• Allows fitment of up to 37 Inch Tires with 7 Inch systems.
• Choice of FOX 2.0 Performance or NX2 Nitro shocks for improved capability.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 35 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/6.25

Kit Components:

• Includes one BDS018409, 2007-2021 Toyota Tundra 4 Inch Rear Block Kit, UPC Code 658848614486
• Includes one BDS028701, 2007-2021 Toyota Tundra Box Kit (2of5), UPC Code 658848616275
• Includes one BDS028702, 2007-2021 Toyota Tundra Box Kit (3of5), UPC Code 658848616282
• Includes one BDS028703, 2007-2021 Toyota Tundra Box Kit (4of5), UPC Code 658848616299
• Includes one BDS028704, 2007-2021 Toyota Tundra Box Kit (5of5), UPC Code 658848616305
• Includes one BDS028710, 2016-2021 Toyota Tundra Box Kit (1of5), UPC Code 658848616312
• Includes two FOX98224952, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
