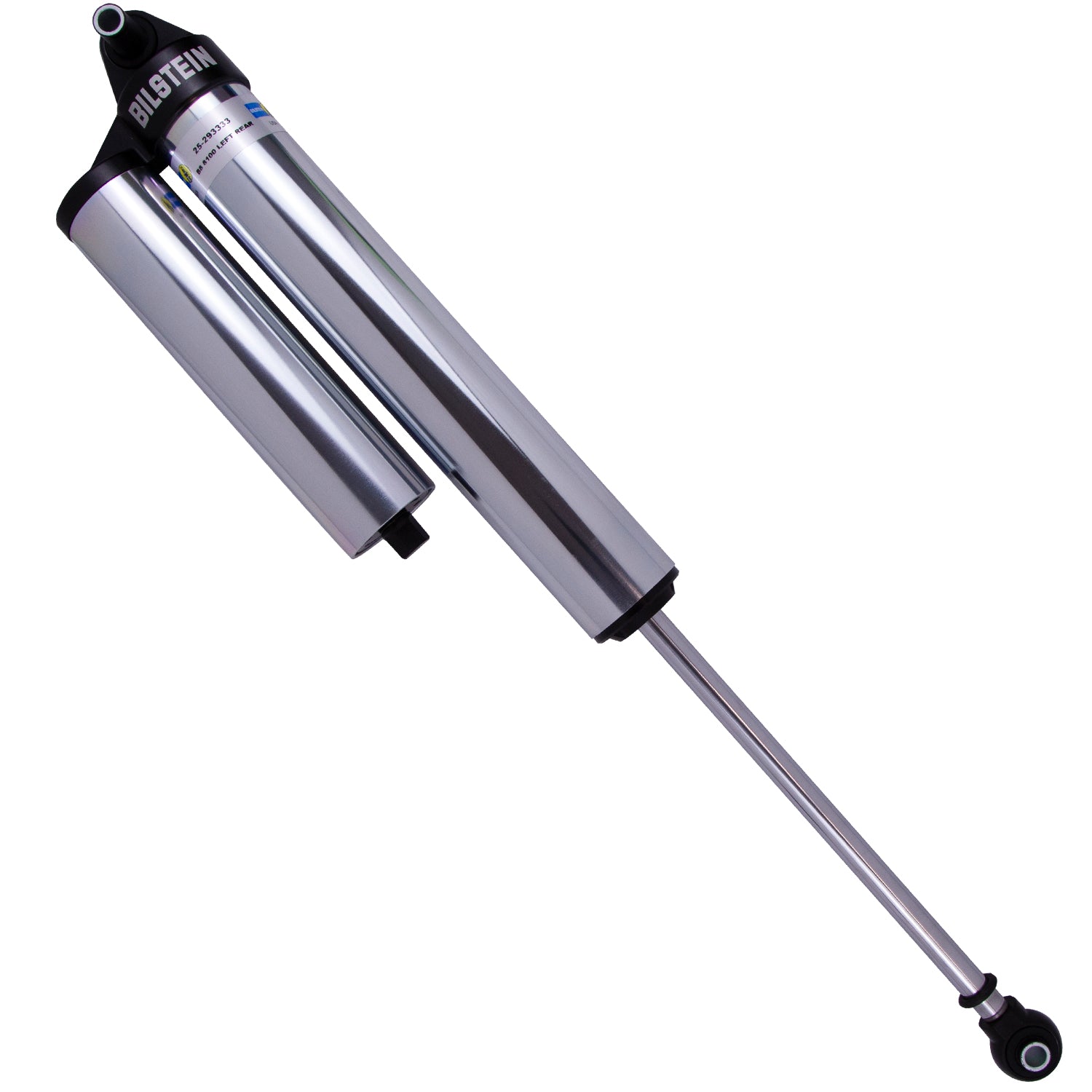

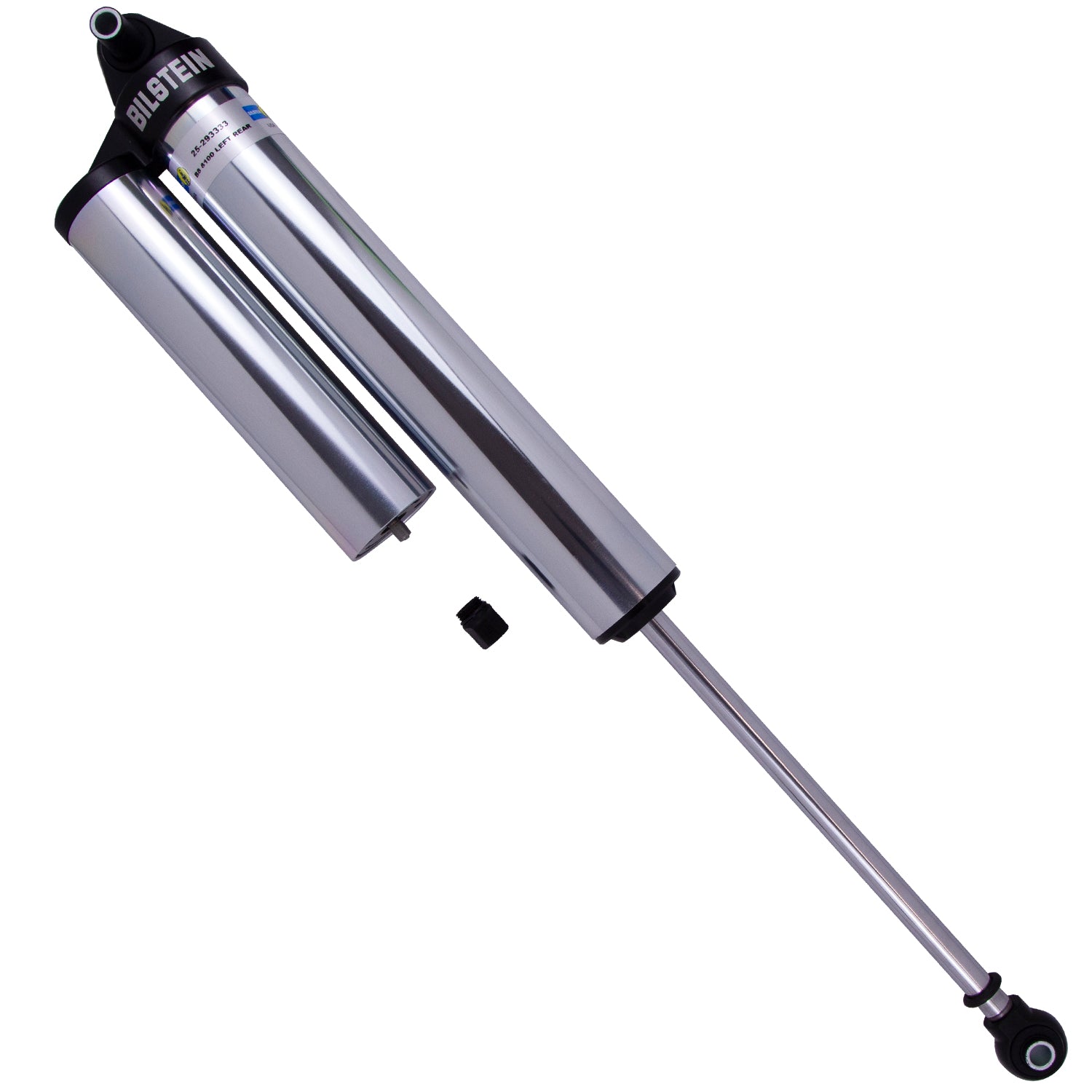

Bilstein 25-293333 - B8 8100 - Suspension Shock Absorber
Couldn't load pickup availability
60mm Shock Absorber
Bilstein B8 8100 reservoir shock absorbers are a large bore 2.65-in OD direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 2.65-in OD shock body shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
Features & Benefits
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Series | B8 8100 |
| Internal Design | Monotube |
| Collapsed Length (IN) | 19.05 |
| Finish | Zinc Plated |
| Extended Length (MM) | 801.8 |
| Reservoir | Yes |
| Body Design | 60mm ID Smooth Body (Non-Coilover) |
| Lower Mount Type | Eye 12.8mm |
| Collapsed Length (MM) | 483.8 |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye 12.8mm |
| Extended Length (IN) | 31.57 |
| Boot Included | No |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
