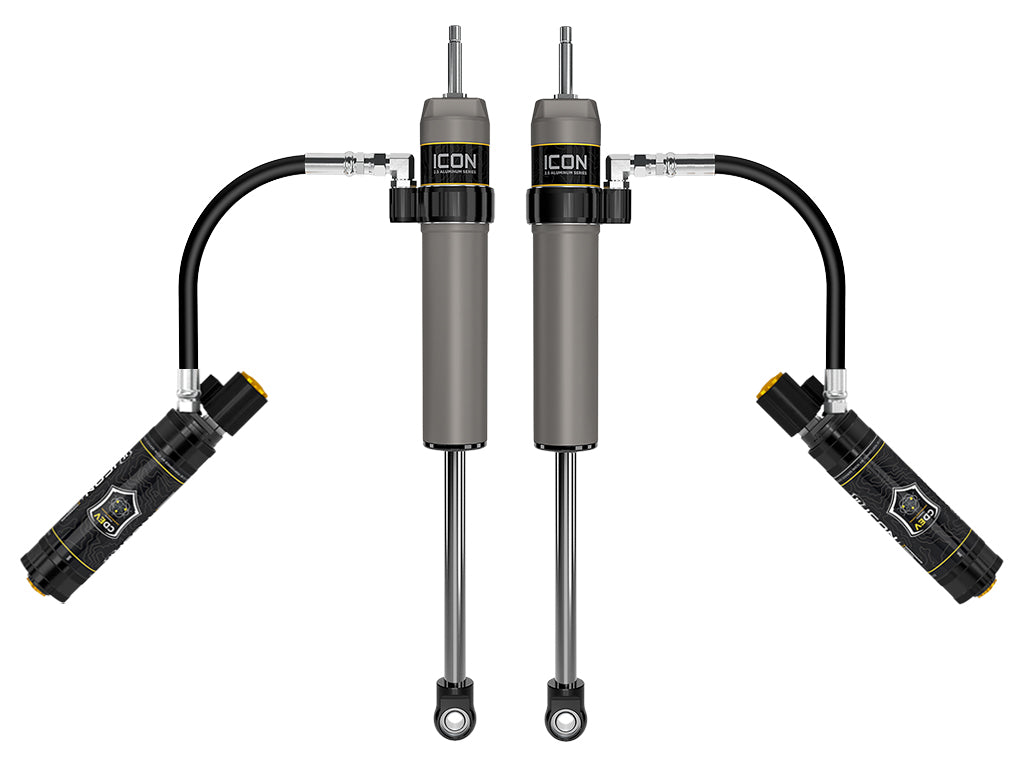

ICON 2024-2025 Toyota Tacoma 0-1” Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDEV Pair

ICON 2024-2025 Toyota Tacoma 0-1” Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDEV Pair

$2,174.49 USD; $2,174.49 USD
Unit price: per

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured...

Vendor: ICON Vehicle Dynamics

SKU: FRDK-57808EP

Barcode: 00840103428864

Availability: Many In Stock

Product type: Suspension Shock Absorber Set

Please hurry! Only 0 left in stock

Quantity:

Subtotal: $2,174.49

Guaranteed fit

We stand behind our parts. If it doesn't fit your vehicle, we’ll make it right.

Free Returns

Changed your mind? Return your purchase within 30 days at no cost.

Dispatch within 24 Hours

Our experts are here to help you pick the perfect fit for your vehicle.

Have any questions?
We’re here to help. Contact Us

Car Part Global is a trusted auto parts supplier

★★★★★

Trusted by thousands of auto parts customers

We supply high-quality auto parts with a focus on reliability, fast service, and customer satisfaction. Our goal is to provide genuine parts you can trust.

Vendor: ICON Vehicle Dynamics

ICON 2024-2025 Toyota Tacoma 0-1” Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Remote Reservoir W/ CDEV Pair

$2,174.49

☰ Description
☫ Fitments
✮ Reviews
📦 Order Verification

☰ Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Fully rebuildable and re-tunable
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir

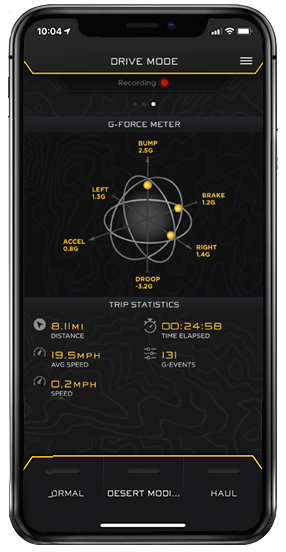

ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Rubber dust boot included for added shaft protection

Vehicle Specific

ICON 24-25 TACOMA 0-1" REAR 2.5 VS RR CDEV PAIR

Attributes:

Brand Name: ICON Vehicle Dynamics
GTIN: 00840103428864
30: Yes
40: Yes
48: Eyelet
49: Stem
50: Yes
51: Yes
359: 2.5
408: Center of Eylet
409: Shoulder of Stem
905: 2.25
3390: Performance
9783: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
Cylinder Color: Grey
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Adjustment Type: Electronic
Damping Type: Oil
External Reservoir: Yes
Reservoir Type: Remote
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Digressive

Extended Information:

Country of Origin: United States
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 15.0000 x 9.0000 inches
Weight: 32.0000 POUNDS
