Vendor: ICON Vehicle Dynamics

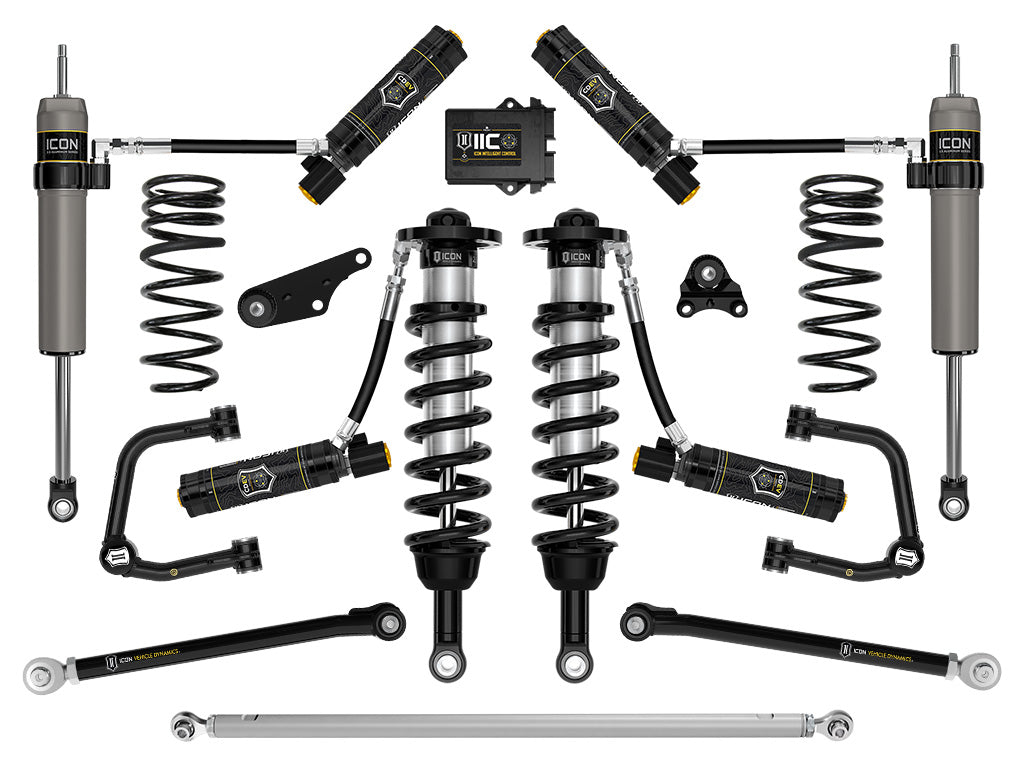

ICON 2025 Toyota 4Runner 4WD 1.25-3" Lift Stage 13 Suspension System Tubular
$8,598.22
Vendor: ICON Vehicle Dynamics
ICON 2025 Toyota 4Runner 4WD 1.25-3" Lift Stage 13 Suspension System Tubular
$8,598.22
The included ICON tubular upper control arm kit is designed to improve overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance while .75” of rear lift height over stock allows a for level stance front to rear. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy "on-vehicle" fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series remote reservoir rear CDEV shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2025 Toyota 4Runner Stage 13 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
- Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

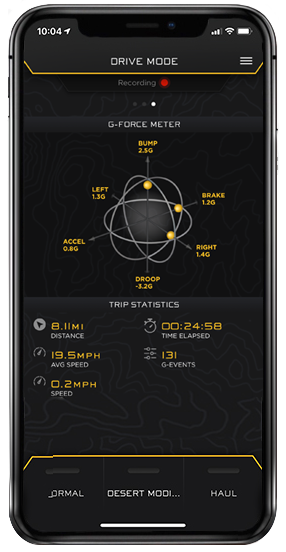

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- ICON 25 4RUNNER 4WD 1.25-3" LIFT STAGE 13 SUSPENSION SYSTEM TUBULAR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103435329
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 3
- 5782: Closed
- 5783: Closed
- 7325: 2
- 7326: 2
- 9271: Linear
- 11410: 3
- 11411: .75
- Active or Passive Suspension: Active
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: Yes
- Adjustable Control Arm: No
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Damping Adjustment Type: Electronic
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3
- Maximum Lift Rear: .75
- Minimum Lift Front: 1.25
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 225.0000 POUNDS
