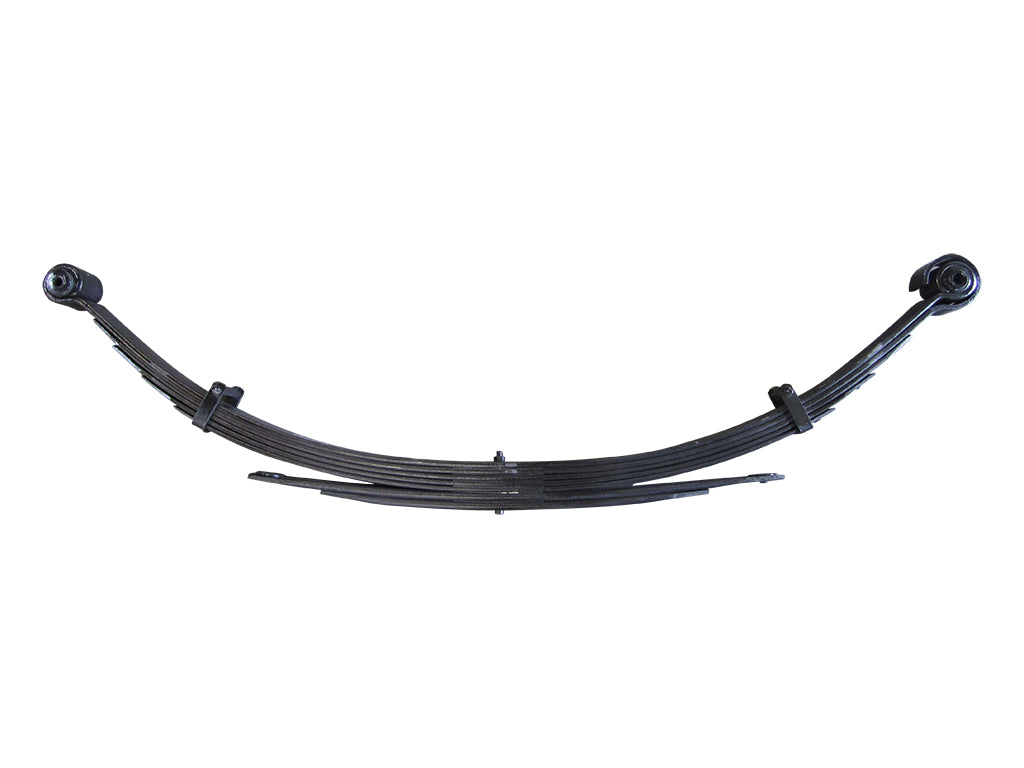

1999-2007 FORD SUPER DUTY REAR 5" LIFT LEAF SPRING
These 5" lift rear leaf springs for the 99-07 F-250/F-350 Super Duty are progressively rated to improve the ride quality of your pickup, as well as increased performance. The multi-leaf construction ensures a smooth ride with less chance of spring fatigue under load, minimizing sagging. The bottom 3 leaves of the pack are flat to provide a secondary overload rate preventing harsh bottom outs and smooth transition through the suspension travel. ICON 2.0 Aluminum Series or 2.5 Aluminum Series Vehicle Specific tuned shocks are recommended for best ride quality and performance on- or off-road.
Features & Benefits
- Provides 5β of rear lift over stock when used with OE rear blocks
- ICON Limited Lifetime Warranty against sagging or breaking
- Reduced spring rate improves ride quality and suspension performance
- Moves overload transition point further away for better small bump compliance
- Overload leaves help maintain payload capacity
- Military wrap front eyelet for increased durability
- Replaceable bonded rubber bushings offer noise free operation and vibration isolation
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Direct bolt-in to OE spring location makes for an easy install
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_12 | EA |
| Axle Orientation | Rear |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grade Type | Performance |
| Axle Modification Needed | No |
| Maximum Lift | 5 IN |
| Mounting Hardware Included | No |
| Spring Color | Black |
| Spring Material | Steel |
| Suspension Grade Type | Performance |
| Title | ICON 1999-2007 Ford F-250/F-350 Super Duty, 5β Lift, Rear, Leaf Spring Pack |
| U Bolts Included | No |
| Bushing Color | Black |
| Bushings Included | Yes |
| Color | Black |
| Helper Spring | yes |
| Leaf Quantity | 10 |
| Leaf Width | 3 IN |
| Material | Steel |
