ICON Vehicle Dynamics 158509 - 07-21 TUNDRA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
Product Availability Request
Fill the form and our team will contact you.

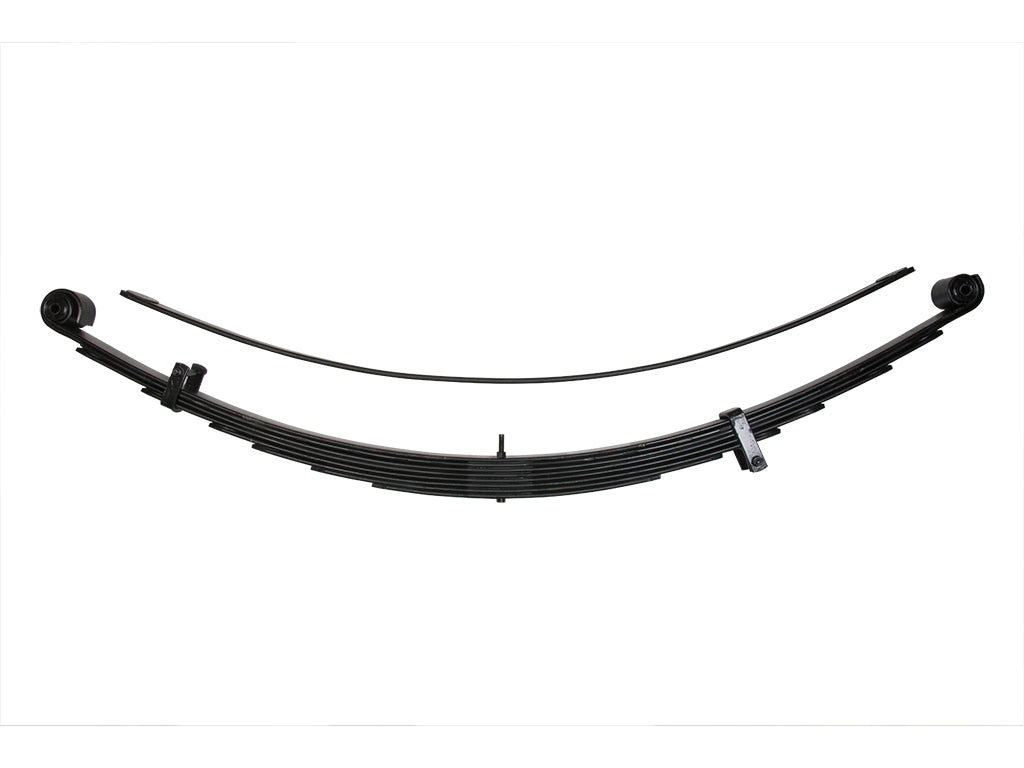

This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength.

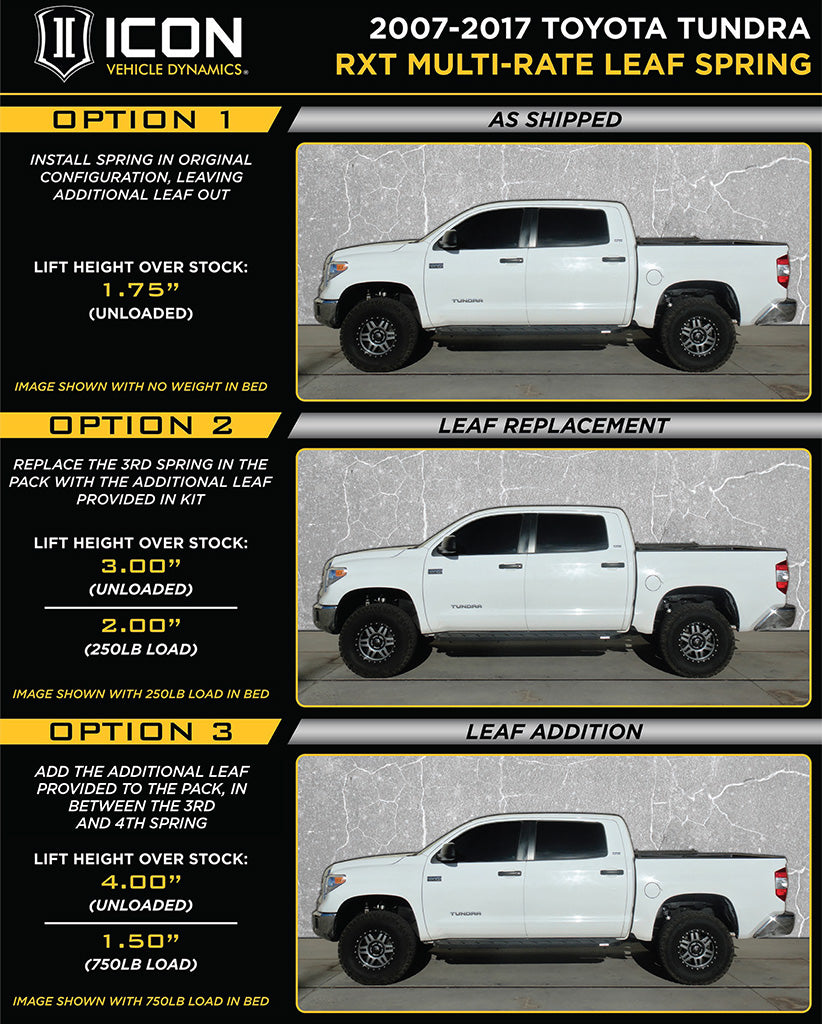

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tundra setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. To increase the ride quality of the truck and gain additional droop travel, the spring rate has been lowered slightly. While many Tundra owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 15% or 25% in spring rate that will handle more "outfitted" vehicles.
Features & Benefits
- 3 user-adjustable spring rates for unique vehicle configurations
- Military wrap front eyelet for increased durability
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Leaf tip inserts reduce noise and increase ride comfort
- Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
- Potential for increased wheel travel when used with RXT shock (up to 25%) without sacrificing up-travel
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Direct bolt-in to OEM spring location makes for an easy install
Specifications
| AAP_UDA_4 | 55 |
| Add-On Part | 52050 - TOYOTA REAR 8.0" U-BOLT KIT |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Axle Orientation | Rear |
| Minimum Lift | 1.75 IN |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment | Yes |
| Maximum Lift | 4 IN |
| Leaf Quantity | 9 |
| Spring Color | Black |
| Title | ICON 2007-2021 Toyota Tundra, Multi-Rate RXT Leaf Spring Pack w/Add In Leaf |
| U Bolts Included | No |
| Grade Type | Performance |
| Material | Steel |
| Axle Modification Needed | No |
| Axle Spring Perches Included | No |
| Bushing Color | Black |
| Bushings Included | Yes |
| Color | Black |
| Finish | Painted |
| Helper Spring | No |
| Leaf Width | 2.5 IN |
| Long Travel Shackles Included | No |
| Modification Required | No |
| Mounting Hardware Included | Yes |
| Suspension Grade Type | Performance |
| U-Bolt Spring Plates Included | No |
Installation Guide: Download PDF
