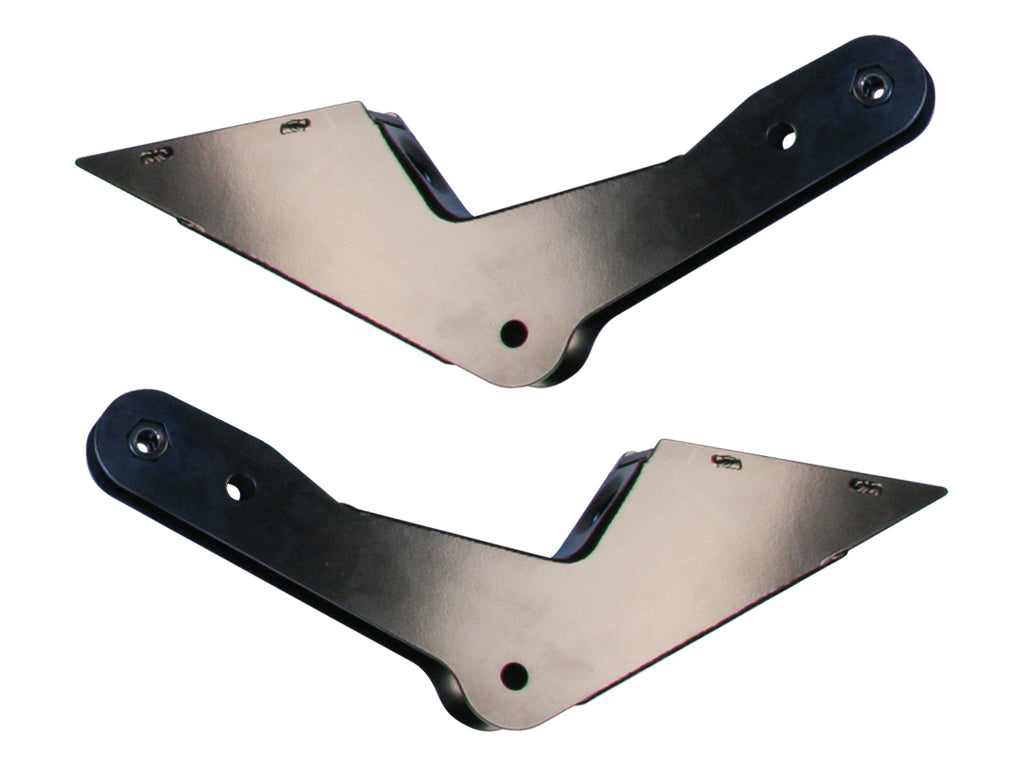

ICON Vehicle Dynamics 164500 - 05-10 FSD 4 LINK FRAME BRACKET KIT
Product Availability Request
Fill the form and our team will contact you.
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
The 4-link bracket kit is an essential component of the ICON 2005-2010 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process. The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Features
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allows on-vehicle caster adjustment via ICON double adjusters in lower links
- Brackets are fabricated from CNC laser cut and brake-formed steel plate
- Corrosion resistant semi-gloss black powder coat finish
- 100% Bolt-on system - no cutting or welding necessary for install
- Fabricated components covered under ICON's Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Grade Type | Performance |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Bracket Color | Black |
| Bracket Material | Steel |
| Mounting Hardware Included | Yes |
Note: TECH NOTE: Only fits 2005-2010 Ford Super Duty 4WD models TECH NOTE: Compatible with 2.5"-7" of front lift TECH NOTE: Requires ICON 4-Link Arms Part numbers 164501 & 164502 to complete installation.
Short Description: 4-LINK BRACKET KIT
Invoice Description: 164500
Definition: Suspension Control Arm Link Mount Kit
Installation Guide: Download PDF
Warranty: Lifetime
