ICON Vehicle Dynamics 206516R - UNIVERSAL 17" TRAVEL 2.0 RR HDRV
Product Availability Request
Fill the form and our team will contact you.

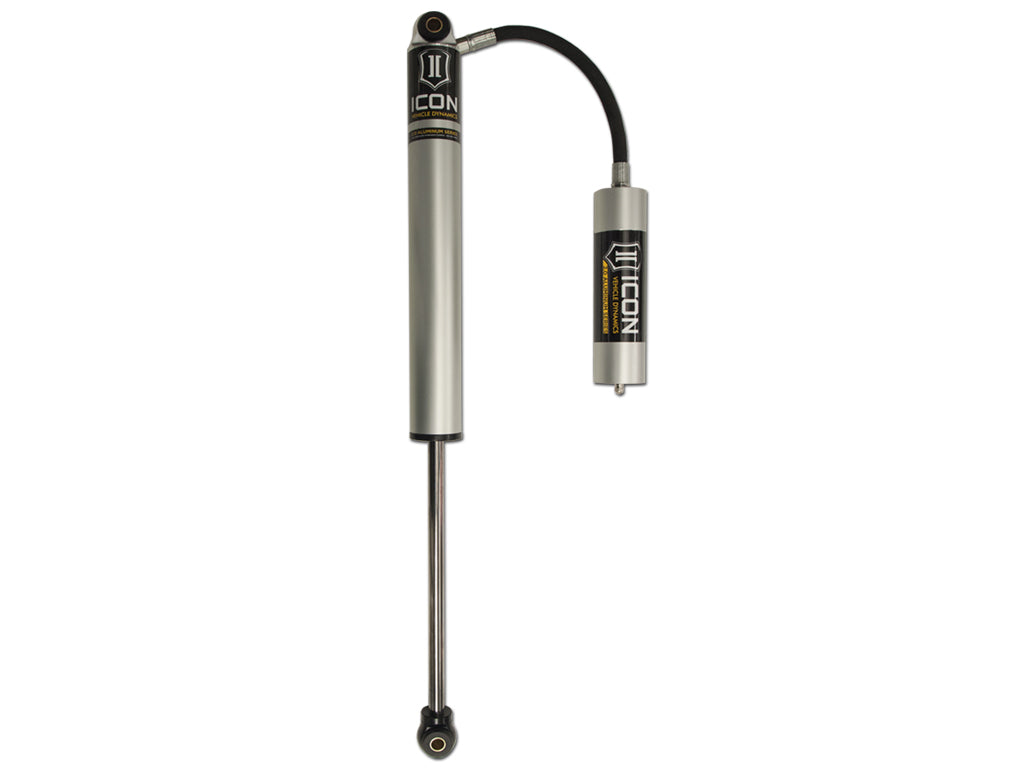

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved performance.
ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% rebuildable
- 100% revalveable
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Boot Included | NO |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Shaft Diameter | 0.625 IN |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Lower Mount Type | EYELET |
| Upper Mount Type | EYELET |
| Cylinder Color | Grey |
| Title | ICON Universal 2.0 Aluminum Series Rear Shock, Remote Reservoir, HD Valving, 17” Travel |
| Mounting Hardware Included | No |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Coil Over Springs Included | NO |
| Dust Boot Included | No |
| Dust Shield | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Internal Construction Type | Single Tube |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Remote Reservoir | Yes |
| Internal Rebound Bumper | Yes |
| Mounting Width | 1.5" x 1/2" Bolt (Upper&Lower) |
| Travel Length | 16.95 IN |
| Shock Stroke | 16.95 IN |
| Compressed Length | 21.1 IN |
| Extended Length | 38.05 IN |
| Finish | Anodized |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shaft Material | Chrome |
| Cylinder Material | Aluminum |
| Material | Steel |
| Material | Aluminum |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Add-On Part | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
