ICON Vehicle Dynamics 211000 - 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.

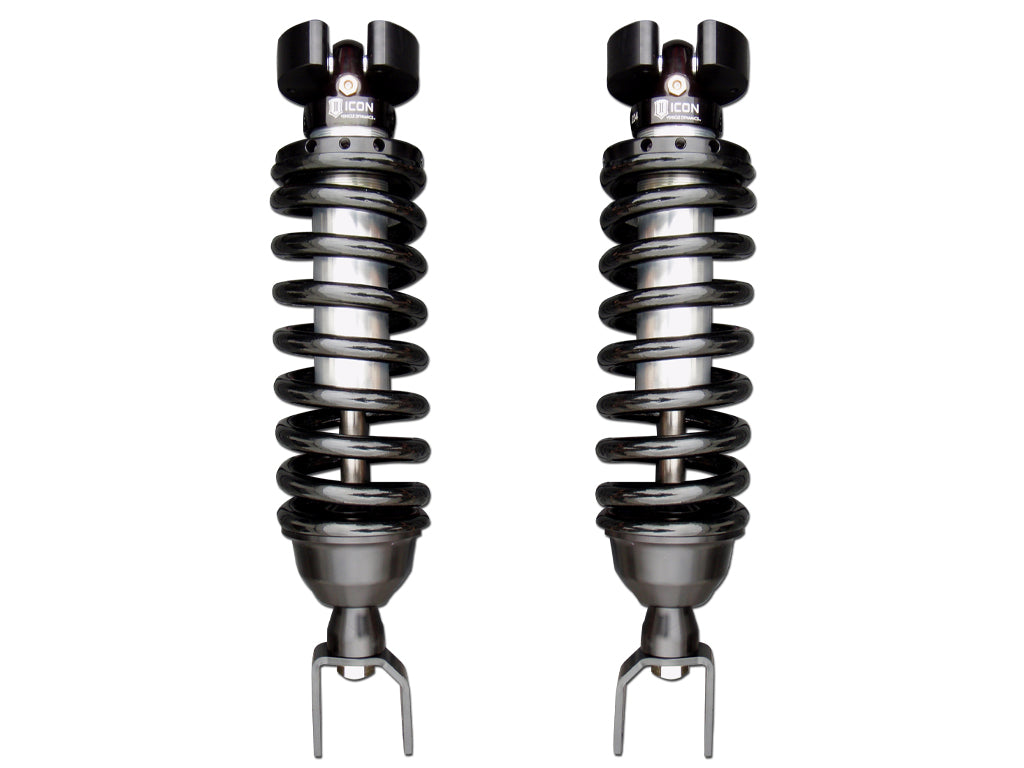

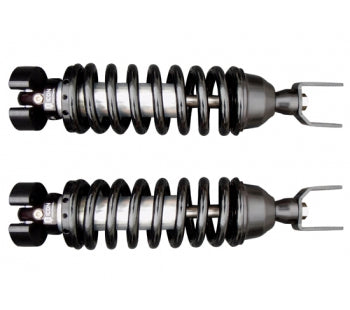

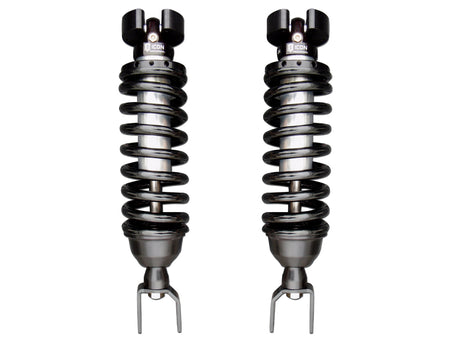

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
Features
- Adjustable coilovers yield .75-2.5” of front lift height on '09-'18 models or 0-1.5" of lift on '19-26 models
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

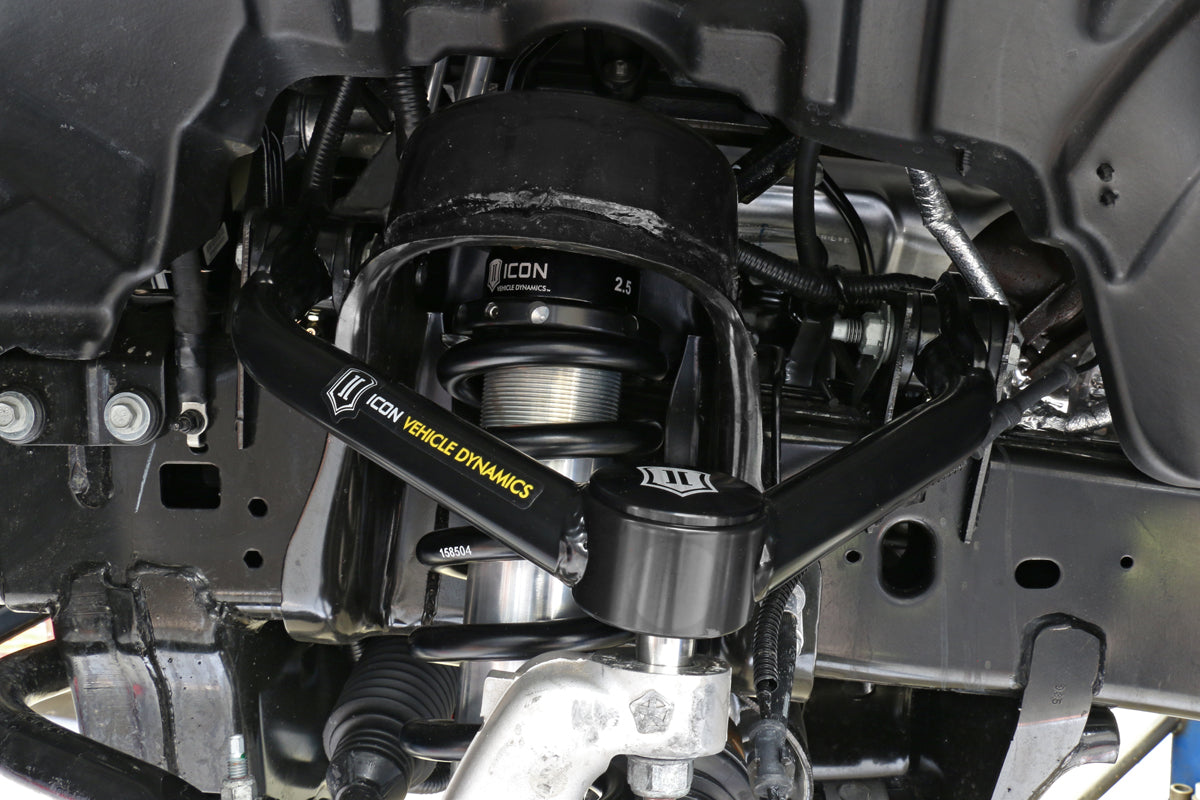

- Bolt-in design makes for an easy install into OEM shock location
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.17 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.51 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Clevis |
| Recommended Aftermarket Wheels | (2019-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Material | Steel |
| Material | Aluminum |
| Maximum Ride Height Raising Distance | 2.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | (2009-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (2009-UP Models) ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (2009-UP Models) ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (2019-UP Models) ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.34 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Note: Factory Wheels & Tires Fitment: Yes APPLICATION NOTE #650: 2019-2026 Ram 1500 Rebel will have front lift height range of 0-.75" over stock APPLICATION NOTE #651: Also fits 2019-2024 Ram 1500 Classic 4WD models. Lift height range is .75-2.5" over stock. APPLICATION NOTE #652: Will not fit 2009-2018 Ram 1500 RWD models Recommended Aftermarket Wheels (2009-2018 Models): ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-UP Models): ICON Alloys - 18x9 with 5" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #100: Springs not rated for EcoDiesel equipped trucks APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #162: Not compatible with factory air ride equipped vehicles APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO
Short Description: COILOVER KIT
Invoice Description: 211000
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year
