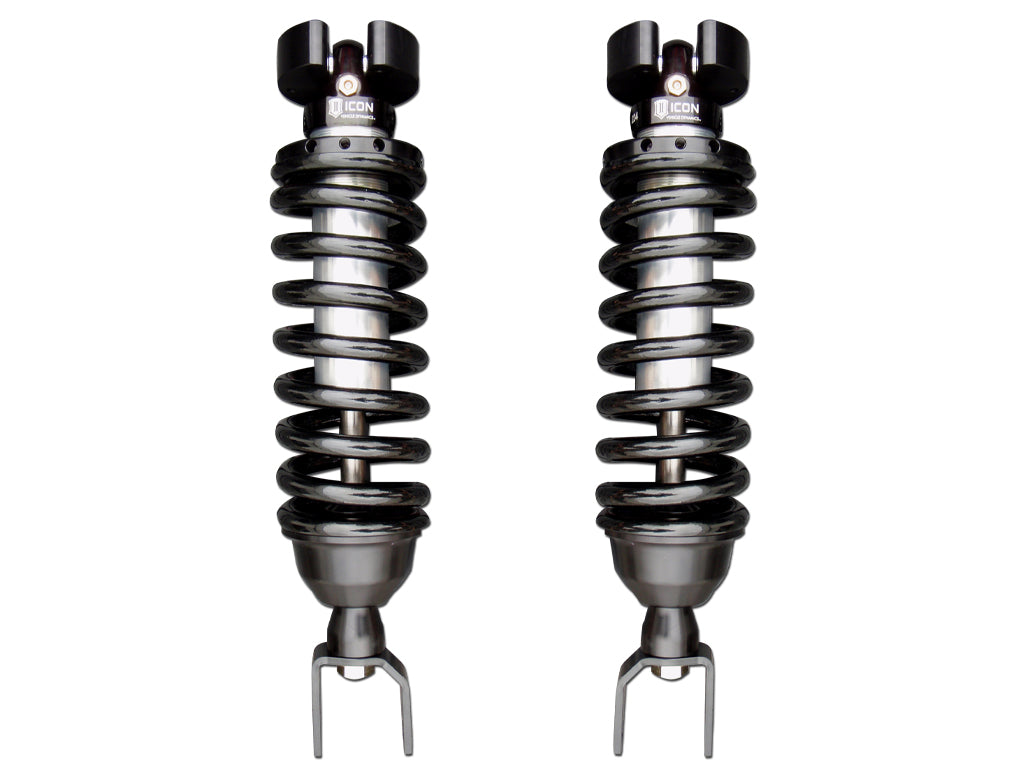

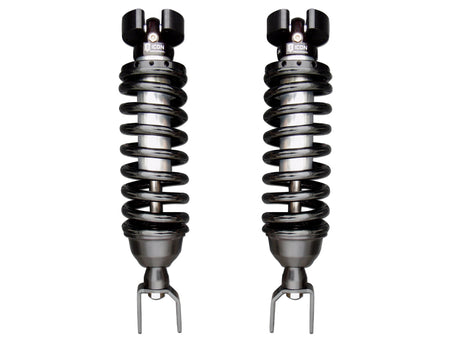

ICON Vehicle Dynamics 211001-CB - 09-UP RAM 1500 4WD 2.5 VS IR COILOVER KIT W/ BDS 4.5"
$1,732.59
USD
Out of Stock
✓
This product fits
Also fits
Confirmed by selected vehicle fitment
Engine
Based on selected vehicle
Drivetrain
Based on selected vehicle
!
This product does not fit
i
No fitment data available for this product, Verify Fitment manually.
CHECK FITMENT
Will this fit your vehicle?
Product Availability Request
Fill the form and our team will contact you.
Free shipping
To the USA
Warranty
1 Year
2009-UP RAM 1500 4WD 2.5 VS INTERNAL RESERVOIR COILOVER KIT W/ BDS 4.5" LIFT
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2009-2018 Ram 1500 4WD, w/ BDS 4.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir |
| Travel Length | 5.73 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 19.59 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.32 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Lower Mount Type | Clevis |
| Material | Steel |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
✓
This product fits
!
This product does not fit
Vehicle Fitment
Fits 28 vehicle applications (2009-2022).
