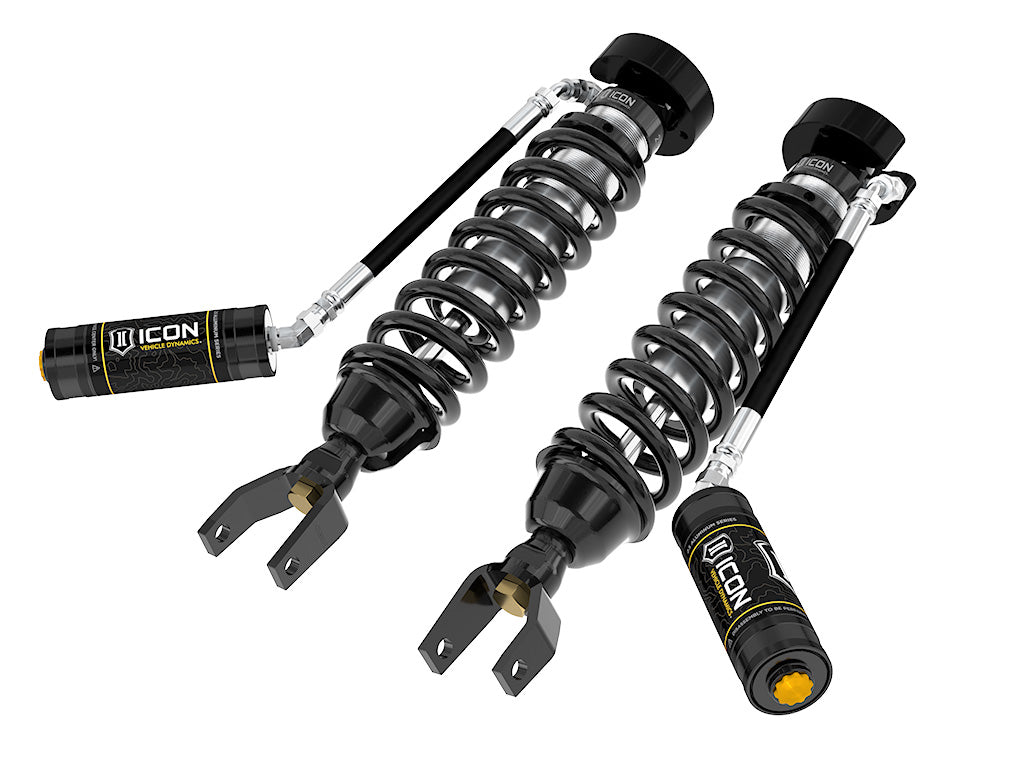

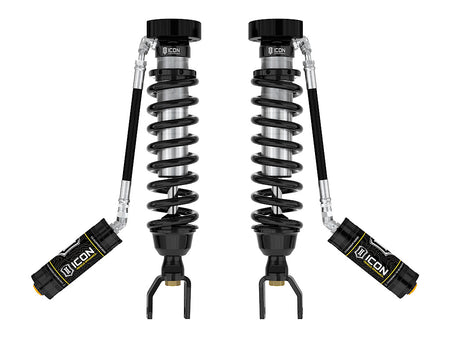

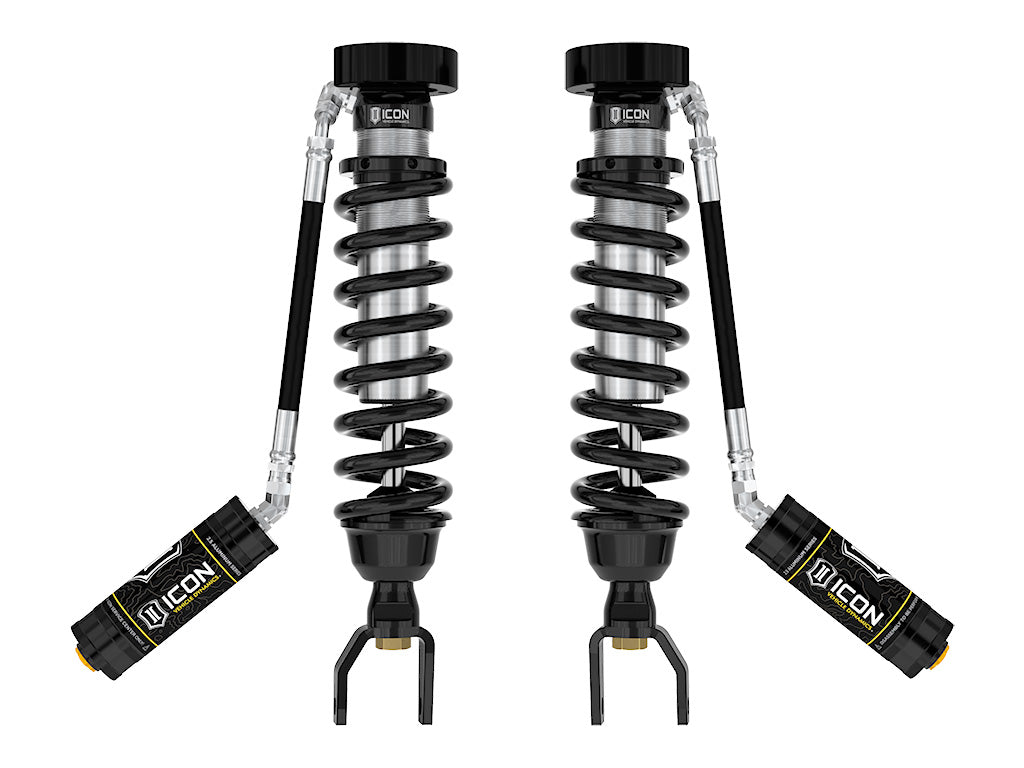

ICON Vehicle Dynamics 211015 - 19-23 RAM 1500 2-3" 2.5 VS RR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
ICON 2.5 Series coilovers are an incredible upgrade for the front of 2019-2026 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2026 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
Features
- Increased wheel travel and ride quality over stock
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- High strength alloy CNC machined lower mounting clevis
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the lighter weight and chassis dynamics of the 2019-2026 Ram 1500
- Vehicle specific tuned for superior shock damping and control
- Adjustable from 2-3" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Cylinder Material | Steel |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 218550DJ - 09-23 RAM 1500 TUBULAR UCA DJ KIT |
| Extended Length | 23.77 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 2 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Clevis Holes |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.73 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.04 IN |
| Cylinder Color | Silver |
| Dust Shield Included | No |
| Front Spring Rate | 700 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Clevis |
| Maximum Lift | 3 IN |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 218560DJ - 19-23 RAM 1500 BILLET UCA DJ KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Material | Steel |
| Material | Aluminum |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #653: 2019-2026 Ram 1500 Rebel will have lift height range 1.25-2.25" over stock Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.) APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models
Short Description: COILOVER KIT
Invoice Description: 211015
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
