Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.

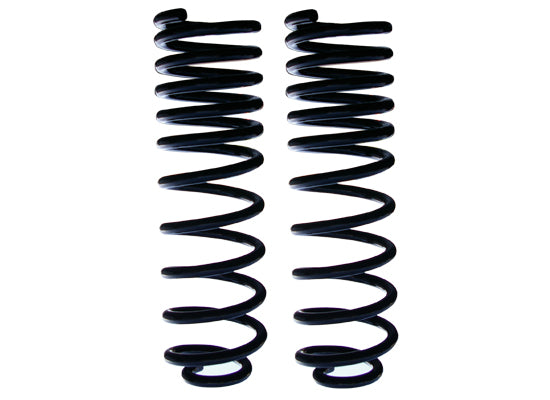

The ICON Dodge Ram 1500 rear coil springs provide 1.5" of lift height and feature a dual rate design with ICON-engineered ride and overload rates. This dual rate design allows for a soft rate at ride height for superb on-road comfort and a firmer secondary rate that increases during compression for excellent payload support, bottoming resistance, and off-road performance. Like all ICON coil springs they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2009-2026 Dodge Ram 1500.
Features
- 1.5" rear lift height over stock
- Dual rate rear coil springs with ICON-engineered spring rates
- Increase in rear wheel travel when paired with ICON shocks
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
- ICON 1K tested under rigorous off-road conditions to validate performance, strength, and durability
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Add-On Part | 22068 - 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT |
| Bump Stops Included | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Black |
| Finish | Powdercoated |
| Grade Type | Performance |
| Material | Steel |
| Maximum Lift Height | 1.5 IN |
| Rear Spring Rate | 190 PPI |
| Rear Spring Rate | 335 PPI |
| Rear Spring Rate Type | Progressive Dual Rate |
| Rear Spring Seat Included | No |
| Spring Color | Black |
| Spring Material | Steel |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #655: Also fits 2019-2023 Ram 1500 Classic models Recommended Aftermarket Wheels (2009-2018): ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-2023): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-2023): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires (2009-2018): 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) Recommended Aftermarket Tires (2019-2023): 35" x 12.50" (Fender trimming and modifications will be required.) APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #654: Provides 1" of rear lift on 2019-2026 Ram 1500 Rebel
Short Description: RAM REAR COILS
Invoice Description: 212150
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
