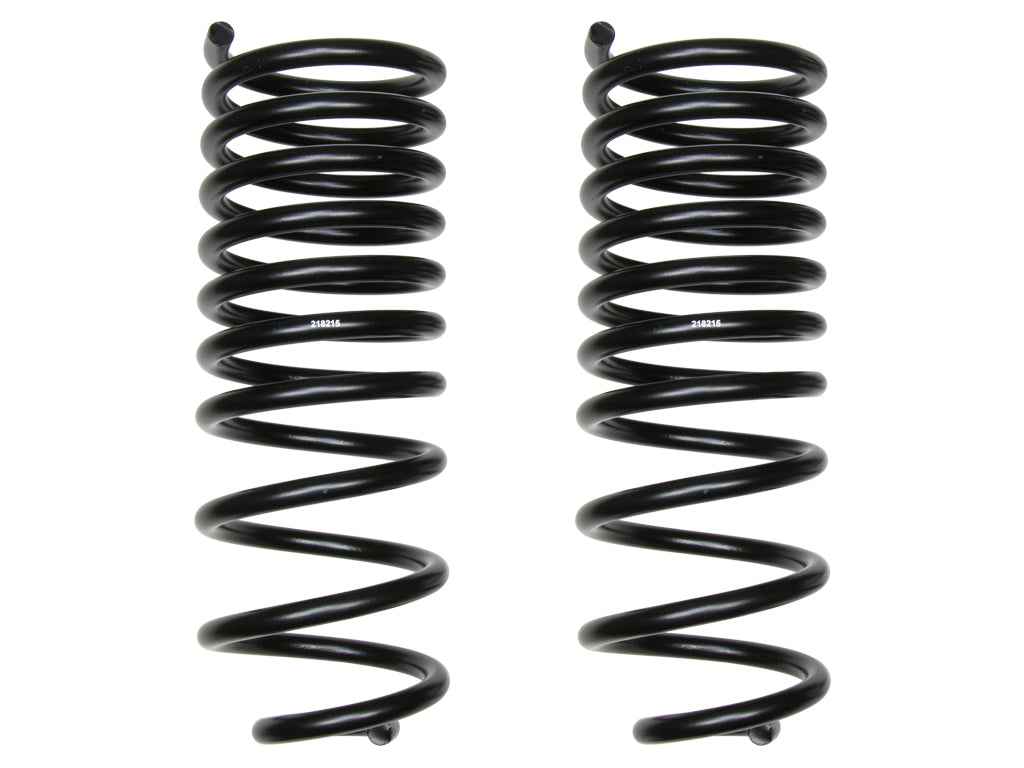

ICON Vehicle Dynamics 214202 - 14-UP RAM 2500 2" REAR PERFORMANCE SPRING KIT
Product Availability Request
Fill the form and our team will contact you.
Lift your truck and enjoy both incredible ride quality and rugged performance. These coils offer an initial soft droop rate, a slightly firmer ride zone, and an aggressive thrird rate to help prevent bottoming out on the trail.
ICON engineers have also developed optional "Performance Systems" that include multi-rate rear coil springs in place of the rear spacer. The lighter initial droop rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support. These systems were developed with the chase truck type of application in mind, and will significantly increase the on and off-road performance of the RAM 2500 when driven aggressively.
Features
- Vehicle specific design yields 2" of rear lift on Ram 2500 equipped with rear coil spring
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Rear extended length shocks are recommended for complete installation
- Durable powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Add-On Part | 217706P - 14-26 RAM 2500 2" PERFORMANCE REAR 2.5 VS PB PAIR |
| Add-On Part | 217706EP - 14-26 RAM 2500 2" PERFORMANCE REAR 2.5 VS PB CDEV PAIR |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Finish | Powdercoated |
| Grade Type | Performance |
| Maximum Lift Height | 2 IN |
| Rear Spring Rate | 230 PPI |
| Rear Spring Rate | 400 PPI |
| Rear Spring Rate | 650 PPI |
| Rear Spring Rate Type | Progressive Triple Rate |
| Rear Spring Seat Included | No |
| Spring Color | Black |
| Spring Material | Steel |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #12: Helper air bags are recommended for hauling/towing heavy loads APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Short Description: REAR COIL SPRINGS
Invoice Description: 214202
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
