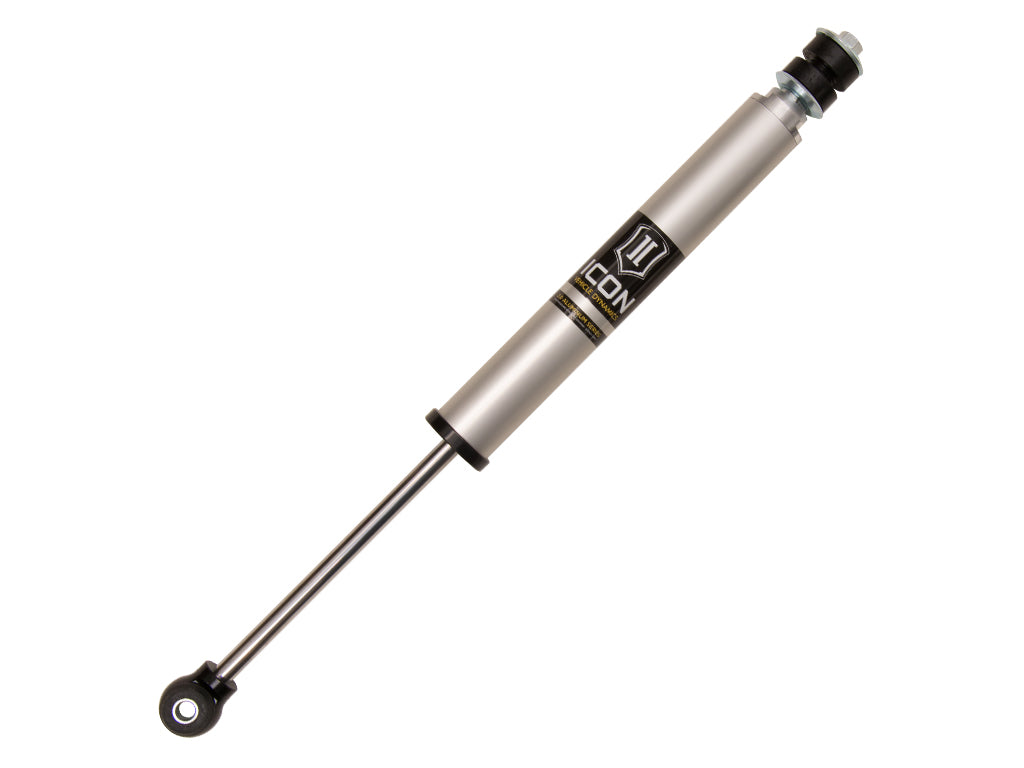

ICON Vehicle Dynamics 216529 - 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-r oad performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
Specifications
| AAP_UDA_12 | EA |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Rod Diameter | .625 IN |
| Shaft Diameter | 0.625 IN |
| Quantity | 1 |
| Shock Absorber Bore Size | 1.75 IN |
| Title | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR |
| Cylinder Outside Diameter | 2 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Cylinder Color | Gray |
| Valving Type | Linear |
| Self-Leveling | No |
| Dust Shield Included | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Coil Over Springs Included | NO |
| Dust Boot Included | No |
| Dust Shield | NO |
| External Reservoir | No |
| Remote Reservoir | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| Material | Steel |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Suspension Type | Air |
| Material | Aluminum |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Valving Type | Digressive |
| Lower Mount Type | EYELET |
| Color | Gray |
| Cylinder Material | Aluminum |
| Shaft Material | Chrome |
| Color | Silver |
| Color | Black |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
Installation Guide: Download PDF
