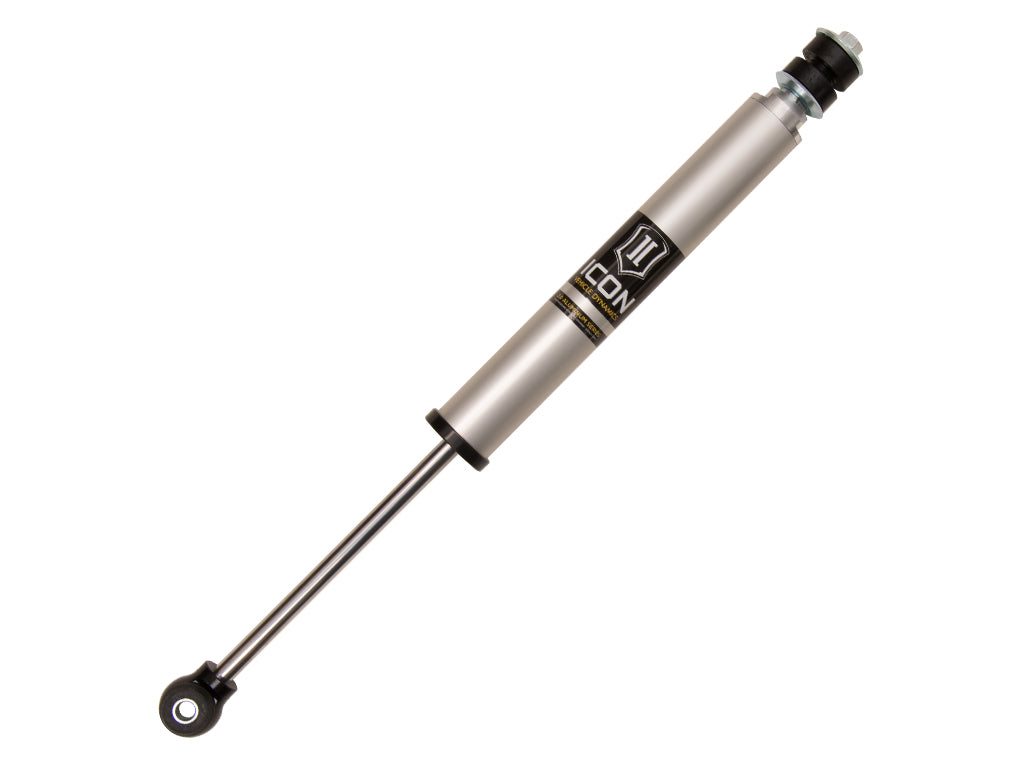

ICON Vehicle Dynamics 216531 - 14-UP RAM HD 2" REAR LIFT 2.0 VS IR

Name: ICON Vehicle Dynamics 216531 - 14-UP RAM HD 2" REAR LIFT 2.0 VS IR
Brand: ICON
SKU: 216531
Price: 195.65 USD
Availability: InStock

$195.65 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% revalveable
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Coil Over Springs Included	NO
Color	Black
Color	Gray
Color	Silver
Compressed Length	16.1 IN
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2 IN
Dust Shield	NO
Dust Shield Included	No
Extended Length	26.5 IN
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Sleeve Inside Diameter	.56 IN
Lower Mount Sleeve Overall Length	1.65 IN
Lower Mount Type	EYELET
Maximum Ride Height Raising Distance	2 IN
Minimum Ride Height Raising Distance	2 IN
Mounting Hardware Included	Yes
Remote Reservoir	NO
Reservoir Type	Internal
Rod Diameter	.625 IN
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75 IN
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Stroke	10.4 IN
Travel Length	10.4 IN
Type	Telescopic
Upper Mount Stem Overall Length	2.5 IN
Upper Mount Stem Thread Size	M12 - 1.25
Upper Mount Type	Stem
Active or Passive Suspension	Passive
Adjustable	NO
Adjustable Compression	No
Bushing Included	yes
Bushing Material	Polyurethane
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushing Color	Black
Boot Included	NO
Body Material	Aluminum
Body Diameter	2 IN
Body Color	Gray
Adjustable Ride Height	No
Adjustable Rebound	No
