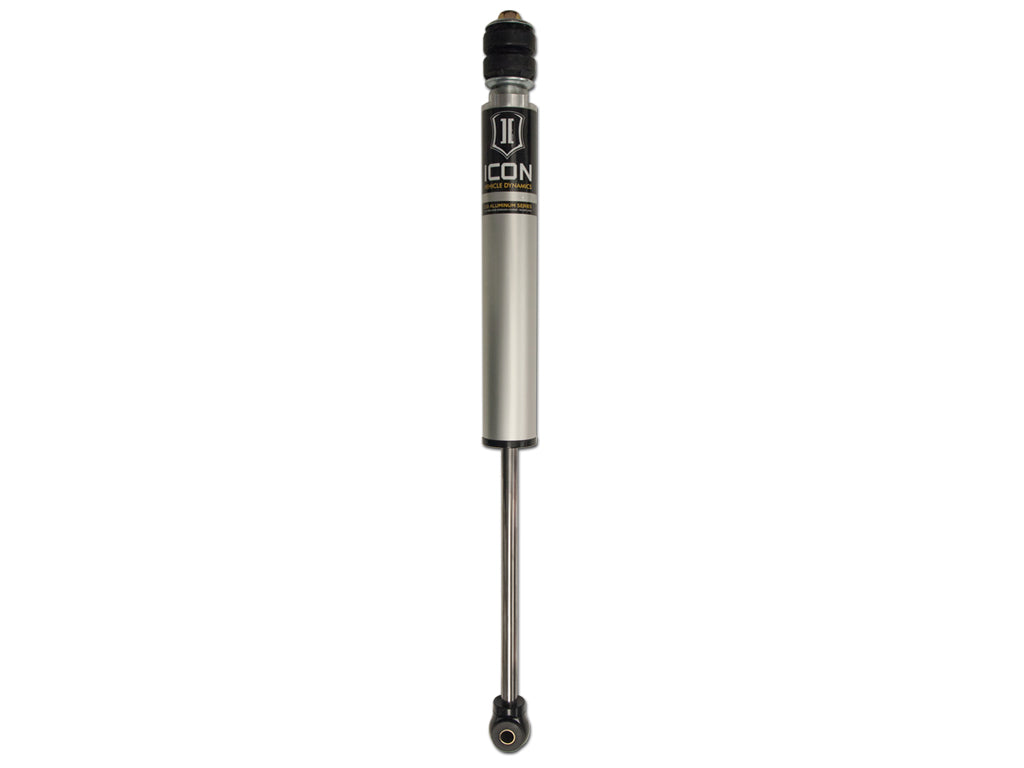

ICON Vehicle Dynamics 216533 - 19-23 RAM 1500 0-3" REAR 2.0 VS IR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8β chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
Specifications
| Adjustable Compression | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | NO |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Bushing Material | Rubber |
| Coil Over Springs Included | No |
| Coil Spring Insulator(s) Included | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Color | Gray |
| Color | Black |
| Color | Silver |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Length | 25.92 IN |
| External Reservoir | No |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Sleeve Inside Diameter | .56 IN |
| Lower Mount Sleeve Overall Length | 1.65 IN |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Ride Height Raising Distance | 2 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | No |
| Reservoir Type | Internal |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Compressed Length | 15.85 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Shock Stroke | 10.07 IN |
| Suspension Type | Spring |
| Travel Length | 10.07 IN |
| Type | Telescopic |
| Upper Mount Stem Overall Length | 2.5 IN |
| Upper Mount Stem Thread Size | M12 - 1.25 |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Valving Type | Linear |
Note: APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 Classic models APPLICATION NOTE #150: Shocks are fully serviceable APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #295: Shocks are sold individually. A quantity of 2 are required per vehicle. APPLICATION NOTE #656: Compatible with 0-3" of rear lift on most Ram 1500 submodels APPLICATION NOTE #657: Compatible with 0-2.5" of rear lift on 2019-2026 Ram 1500 Rebel
Short Description: SHOCK ABSORBER
Invoice Description: 216533
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 1 Year
