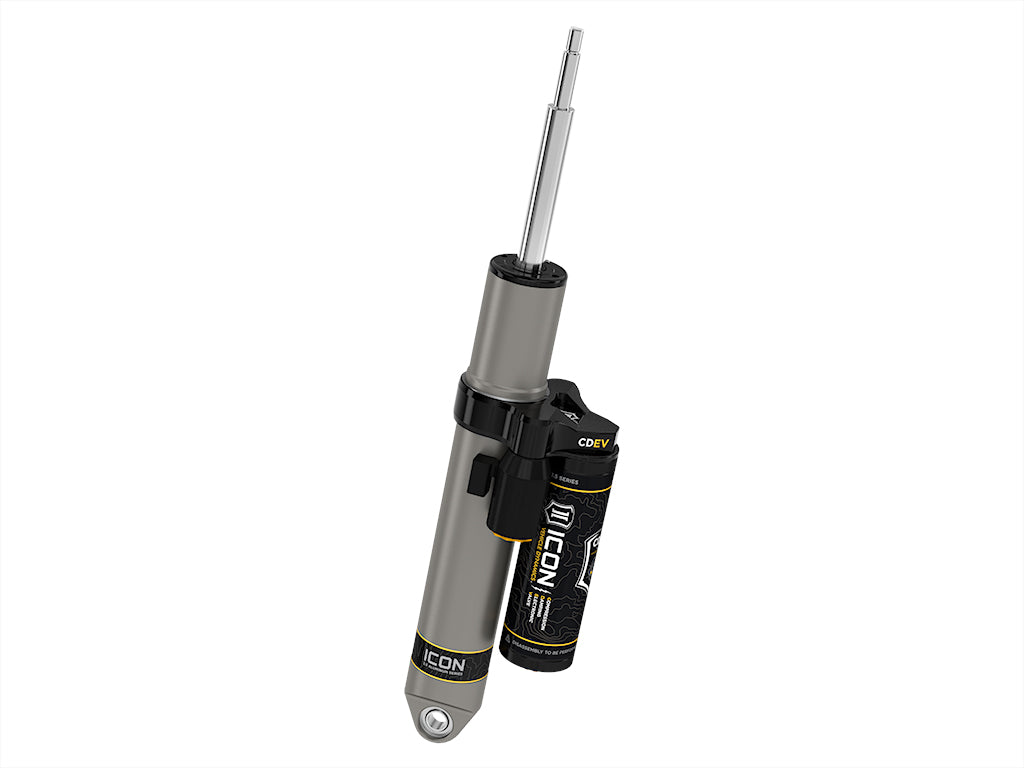

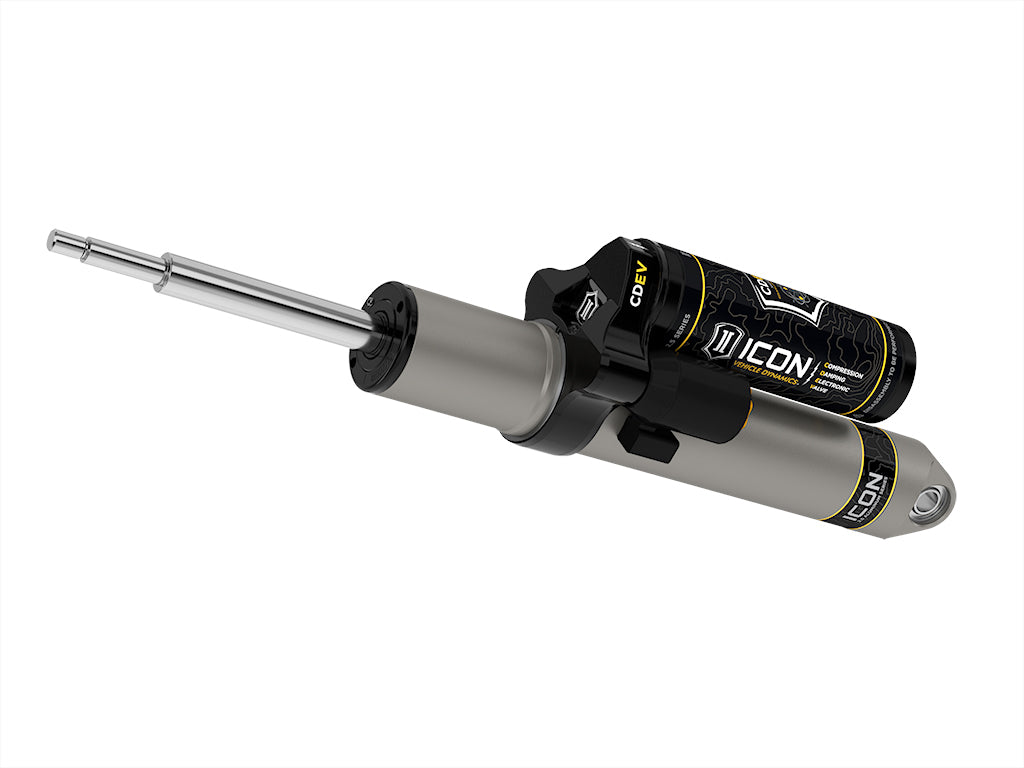

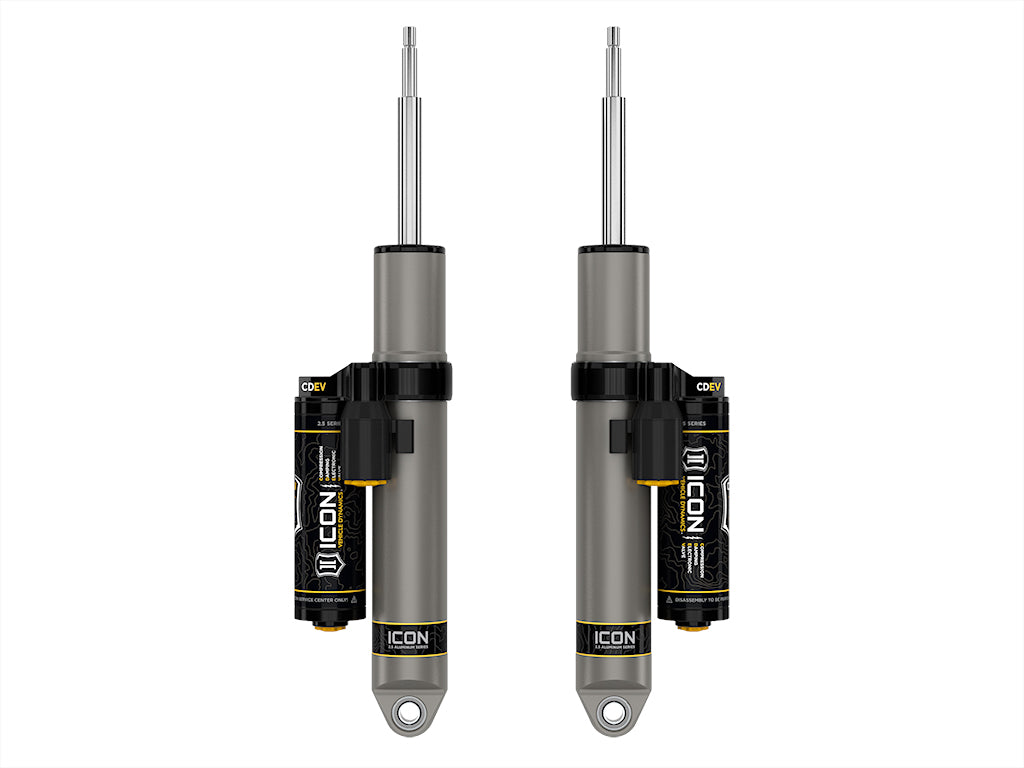

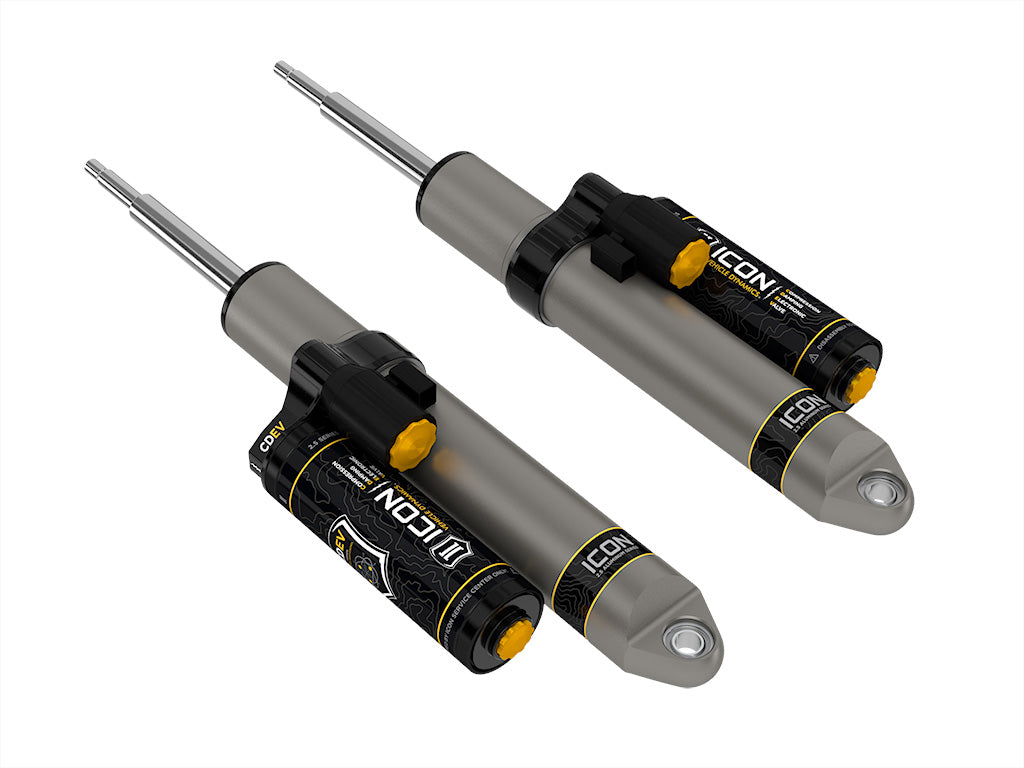

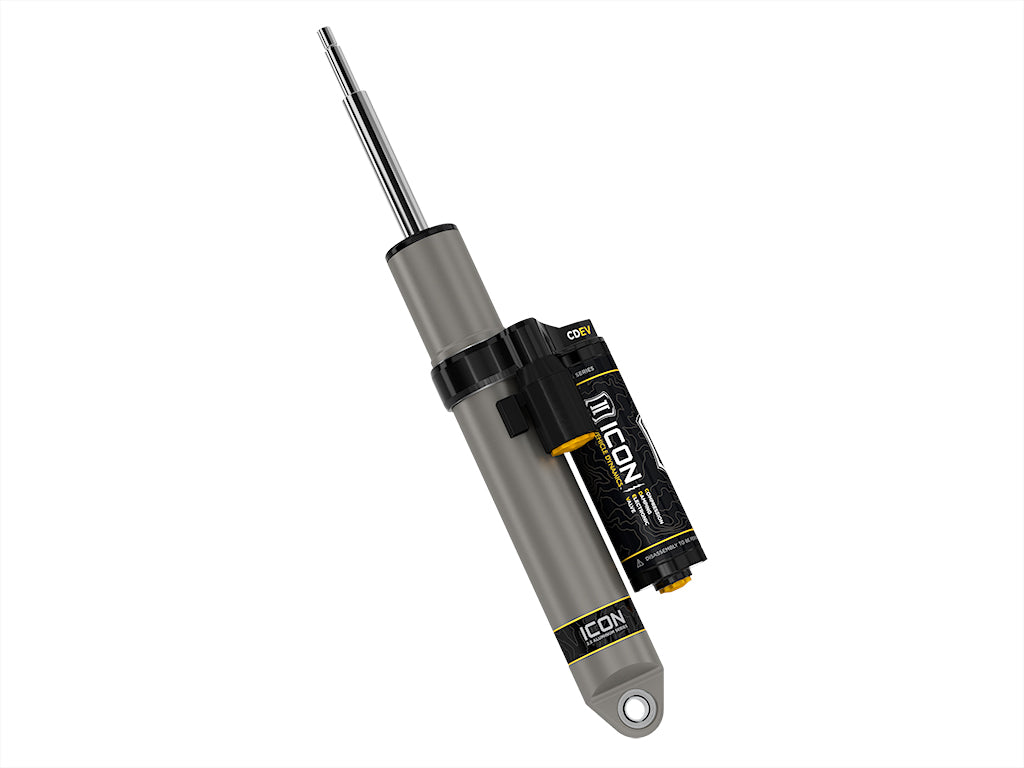

ICON Vehicle Dynamics 217706EP - 14-UP RAM 2500 2" PERFORMANCE REAR 2.5 VS PB CDEV PAIR
Couldn't load pickup availability
2014-UP RAM 2500 2" LIFT PERFORMANCE REAR COILS 2.5 VS PIGGYBACK CDEV SHOCK ABSORBER PAIR
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features & Benefits
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 6061 aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- Length and damping tune optimized to be paired with ICON 2" Lift Rear Performance Spring Kit
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 213500 - 14-UP RAM HD IIC INSTALL KIT |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Adjustable | Electronically |
| Shaft Diameter | 0.875 IN |
| Title | 14-UP RAM 2500 2" PERFORMANCE REAR 2.5 VS PB CDEV PAIR |
| Tube Outside Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shaft Material | Chrome |
| Lower Mount Type | Eyelet |
| Cylinder Color | Grey |
| Damping Type | Oil |
| Grade Type | Performance |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
Installation Guide: Download PDF
