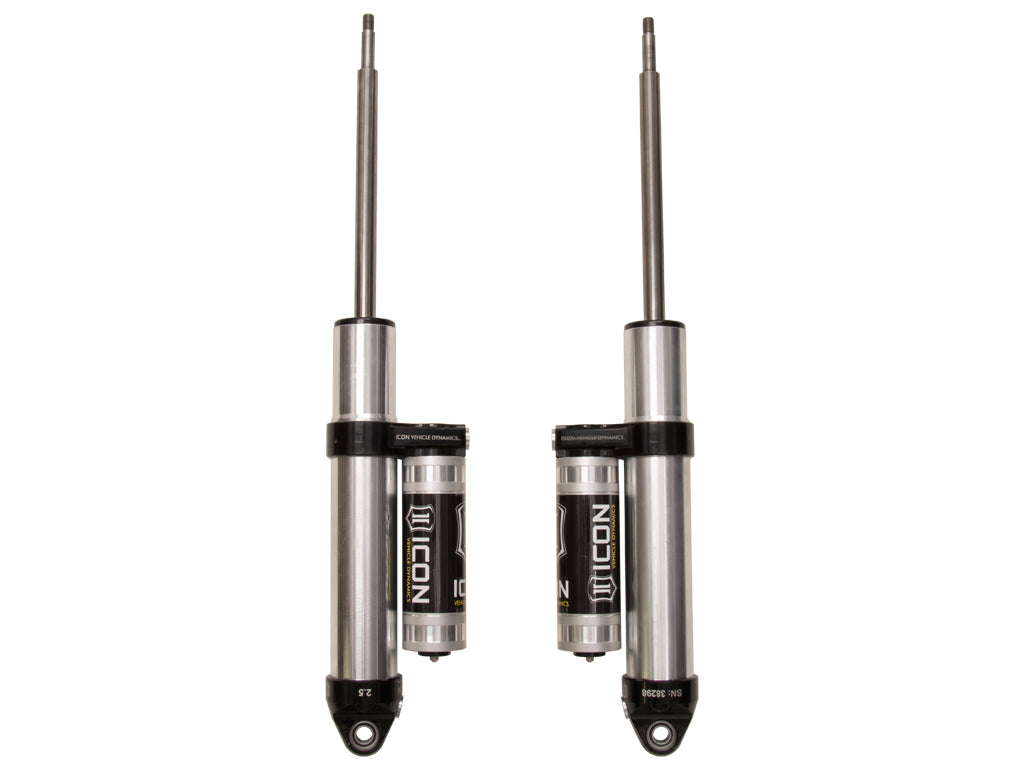

ICON Vehicle Dynamics 217708P - 14-UP RAM 2500 AIR RIDE REAR 2.5 VS PB PAIR

Name: ICON Vehicle Dynamics 217708P - 14-UP RAM 2500 AIR RIDE REAR 2.5 VS PB PAIR
Brand: ICON
SKU: 217708P
Price: 1193.50 USD
Availability: InStock

$1,193.50 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature piggyback reservoirs and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Polyurethane bushings and forged steel mounting stems for OE factory type fitment
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components

Specifications

AAP_UDA_4	55
AAP_UDA_12	EA
AAP_UDA_22	1
Adjustable	NO
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Shock Absorber Rod End Measuring Point	Shoulder of Stem
Stroke Length Rear	7.43 IN
Tube Outside Diameter	2.5 IN
Upper Mount Type	Stem
Valving Type	Digressive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Cylinder Material	Aluminum
Damping Type	Oil
Extended Length	23.58 IN
External Reservoir	Yes
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Lower Mount Type	EYELET
Mounting Hardware Included	Yes
Reservoir Type	Piggyback
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts	191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts	257341STEM - 7/8 SHAFT 17.58 OAL, 11.00 TRAVEL
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts	611006 - 9/16 HD STEM BUSHING KIT
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Shaft Diameter	0.875 IN
Boot Included	NO
Bore Diameter	2.25 IN
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Compressed Length	16.15 IN
Cylinder Color	Gray
Cylinder Diameter	2.5 IN
