ICON Vehicle Dynamics 22020 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE

2007-2018 JEEP WRANGLER JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE

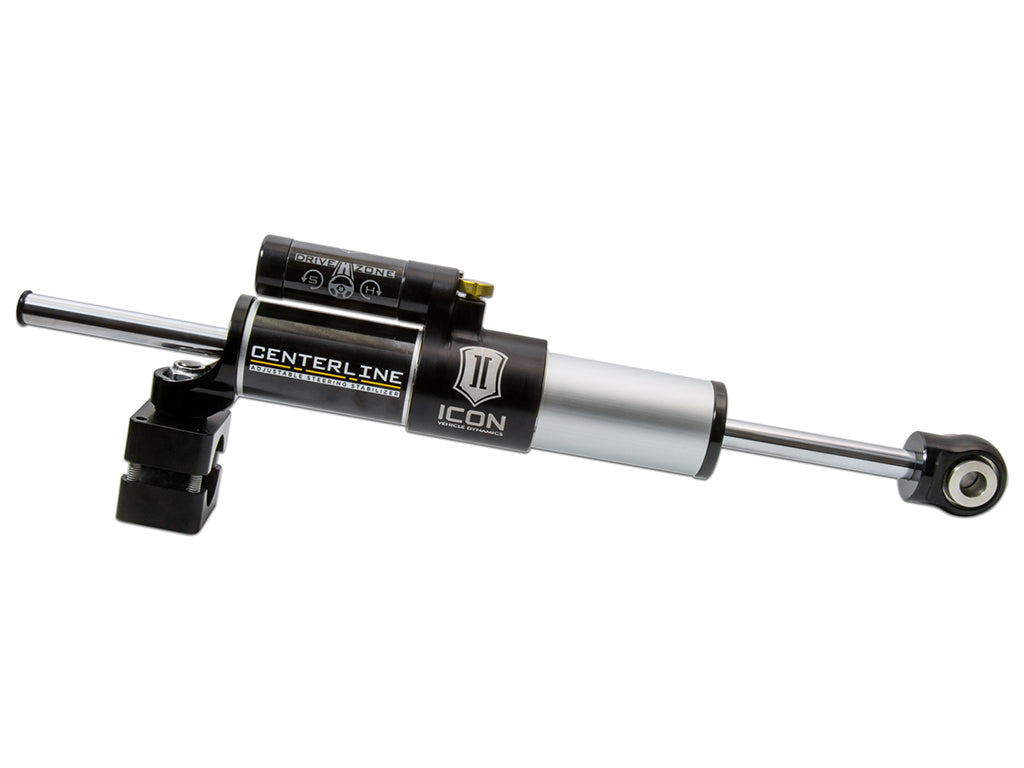

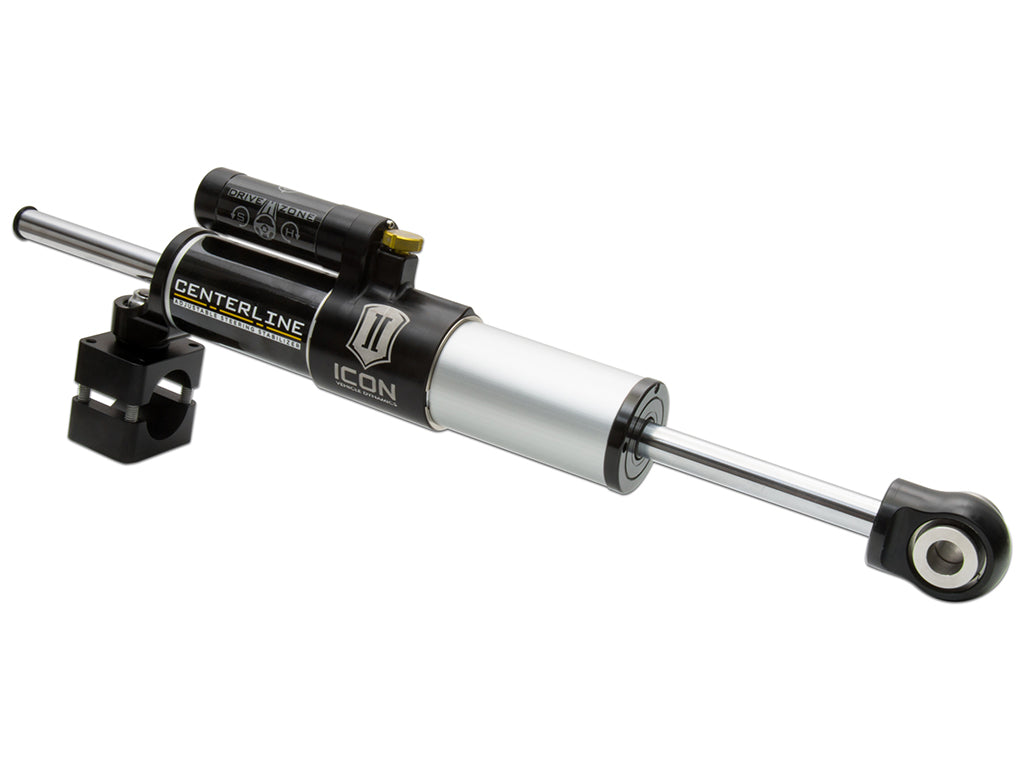

Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable “Drive Zone” that can be custom-tailored to an individual’s desired steering feel. Developed with a wide range of aftermarket JK components in mind, this stabilizer is a high clearance design with a rotatable reservoir that allows for fitment on all ICON lift systems as well as most other lifts on the market. In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable “Drive Zone” with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center. This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range. This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer 1-3/8” tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.

Features

• Through shaft design eliminates push/pull sensation associated with traditional stabilizers
• 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
• 5/8” chrome plated hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range
• FK Rod End bearings for precise function
• Increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• Adjustable “Drive Zone” with 9 clicks of damping adjustment
• 100% bolt-on installation
• High clearance design and rotatable reservoir for proper fitment on all lift heights
• Mounts to OE 1-3/8” tie rod
• Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
• Fully serviceable ICON 2.0 Aluminum Series shock

Specifications

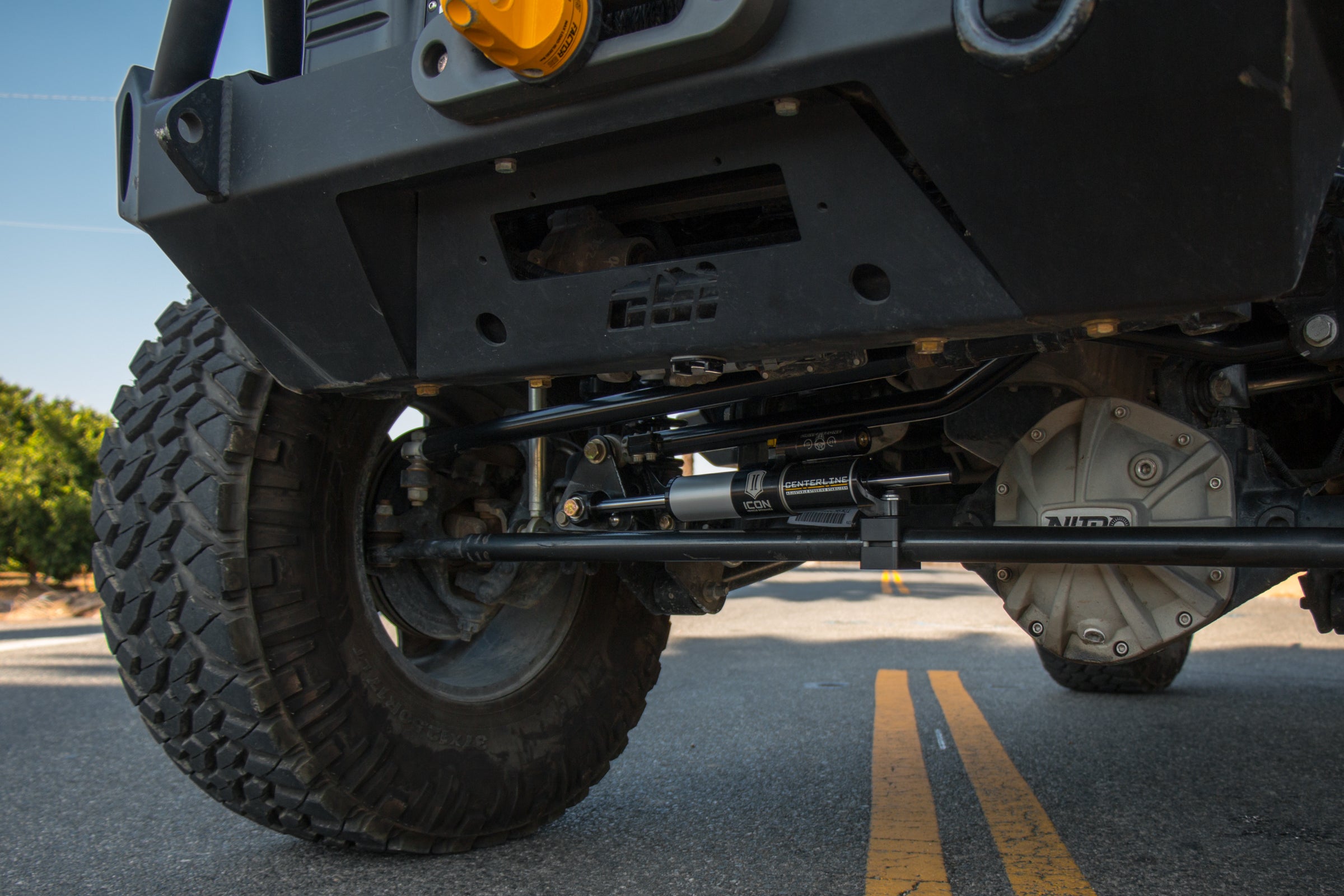

Note: TECH NOTE: This kit is intended for use with a 3-6" lift and will not work on a stock vehicle. A minimum of 1" bump stop spacer is required for adequate clearance. TECH NOTE: 4.5" kits and taller allow the reservoir of the stabilizer to be rotated straight up above the shock body. 3" kits require the reservoir to be rotated down behind the shock body. TECH NOTE: If using a heavy duty 1-5/8” aftermarket tie rod, oversized clamp kit (PN: 614525) must be used

Short Description: JK THRU SHAFT STAB

Invoice Description: 07-18 JK CENTERLINE STABILIZER KIT ADJ

Definition: Steering Damper Kit

Installation Guide: Download PDF

Warranty: 1 Year
