ICON Vehicle Dynamics 22023 - 18-23 JL REAR ADJ LOWER LINK KIT
Product Availability Request
Fill the form and our team will contact you.

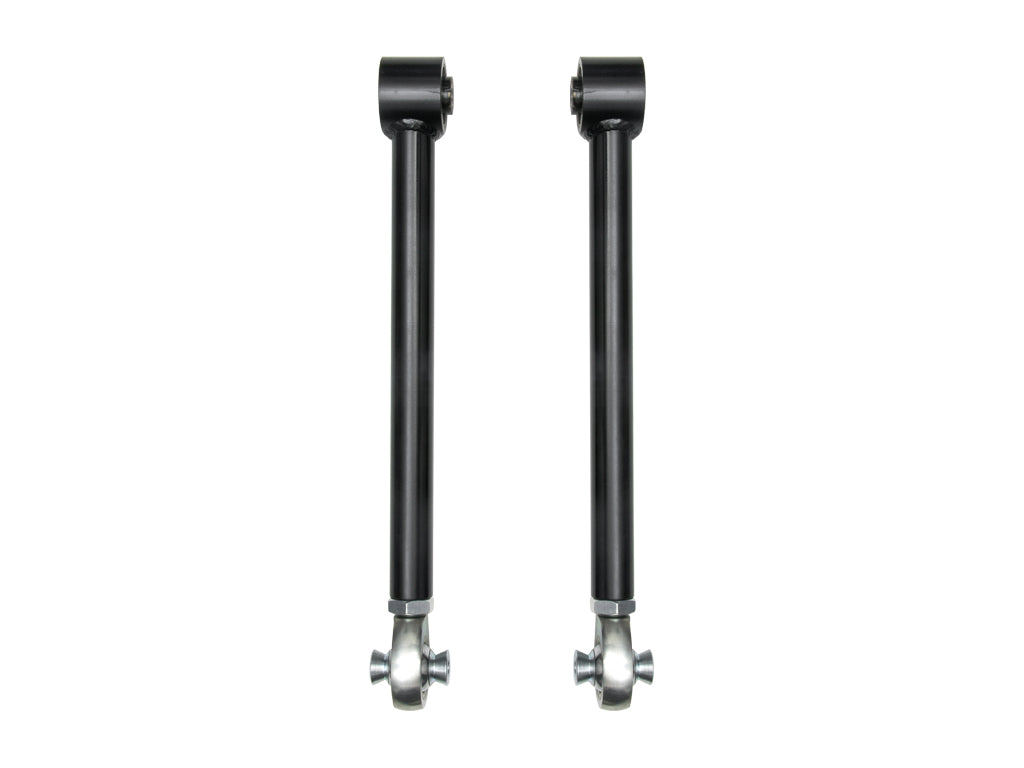

ICON’s tubular steel rear lower links are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These components are made from CNC machined 1026 DOM steel and welded in-house.
ICON’s tubular steel rear lower link arms are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These components are made from CNC machined 1026 DOM steel and welded in-house, providing a major improvement over the construction of the stock units. This rear lower link arm kit features PTFE-lined FK rod ends and multi durometer, maintenance free bushings for reduced deflection, link arm length adjustment and increased articulation, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
Features & Benefits
- CNC machined & notched 1026 DOM steel construction
- Huge, PTFE-lined FK rod ends
- Adjustable in length for rear pinion angle adjustment
- Offers controlled deflection with maximum articulation and responsiveness
- No grease required for life of bushings
- Easy install into OEM mounts w/ application specific hardware
- High quality semi-glass black powder coat finish
- “ICON 1K” tested under rigorous off-road conditions to validate, performance, strength, and durability
- Fabricated components covered under ICON's lifetime warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | Yes |
| Bushings Included | Yes |
| Bushing Material | Rod End Bearing |
| Bushing Material | Polyurethane |
| Bushing Color | Black |
| Control Arm Color | Black |
| Finish | Powdercoated |
| Suspension Type | Spring |
| Control Arm Material | Steel |
| Construction | Tubular |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Material | DOM Steel |
| Title | ICON 2018-2023 Jeep Wrangler JL, Rear, Adjustable Lower Link Kit |
| Pre-Greased | No |
| Grease Fitting Included | No |
| Quantity | Pair |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
Installation Guide: Download PDF
