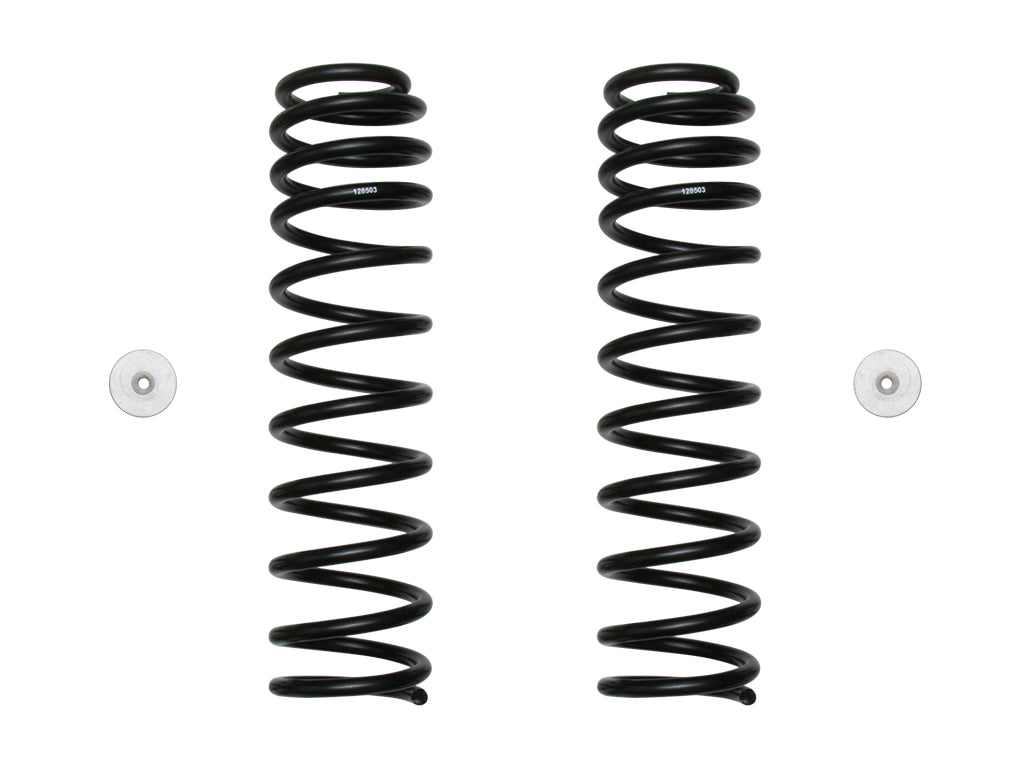

ICON Vehicle Dynamics 22025 - 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
Couldn't load pickup availability
Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.
The ICON Vehicle Dynamics 2018-2023 Jeep Wrangler JL/2020-2023 Jeep Gladiator front coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON coil springs provide 2.5" of lift height on Wrangler JL (based on a factory equipped 4-door Rubicon) or 2" of front lift on Gladiator JT and feature a dual rate design. The dual rate design allows for a softer initial rate for superb on road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2018-2023 Jeep JL Wrangler or 2020-2023 Jeep Gladiator.
Features & Benefits
- 2.5" front lift height on Wrangler/2" front lift on Gladiator
- Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
- 3" front increase in wheel travel (when paired with ICON shocks)
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bump Stops Included | Yes |
| Maximum Lift Height | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (37" x 12.50" with optional extended bump stop spacer kit PN: 22029) |
| Spring Color | Black |
| Title | ICON 2020-2023 Jeep JT, 2" Lift/2018-2023 Jeep JL, 2.5” Lift, Front, Dual Rate Coil Spring Kit |
| Front Spring Seat Included | No |
| Rear Spring Seat Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Spring Material | Steel |
| Front Spring Rate Type | Variable |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
Installation Guide: Download PDF
