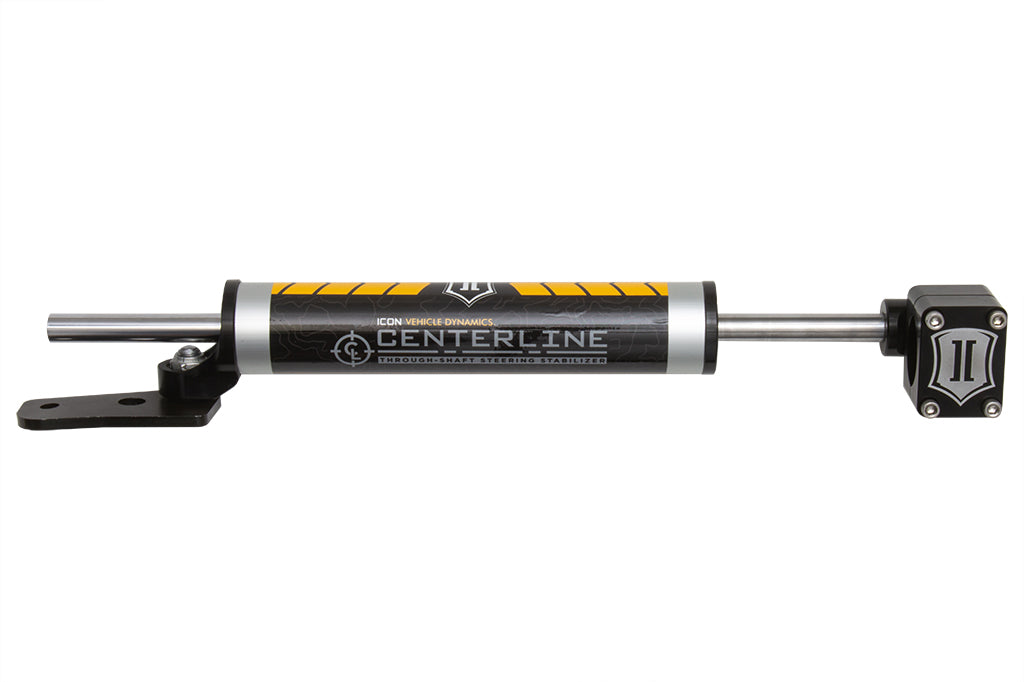

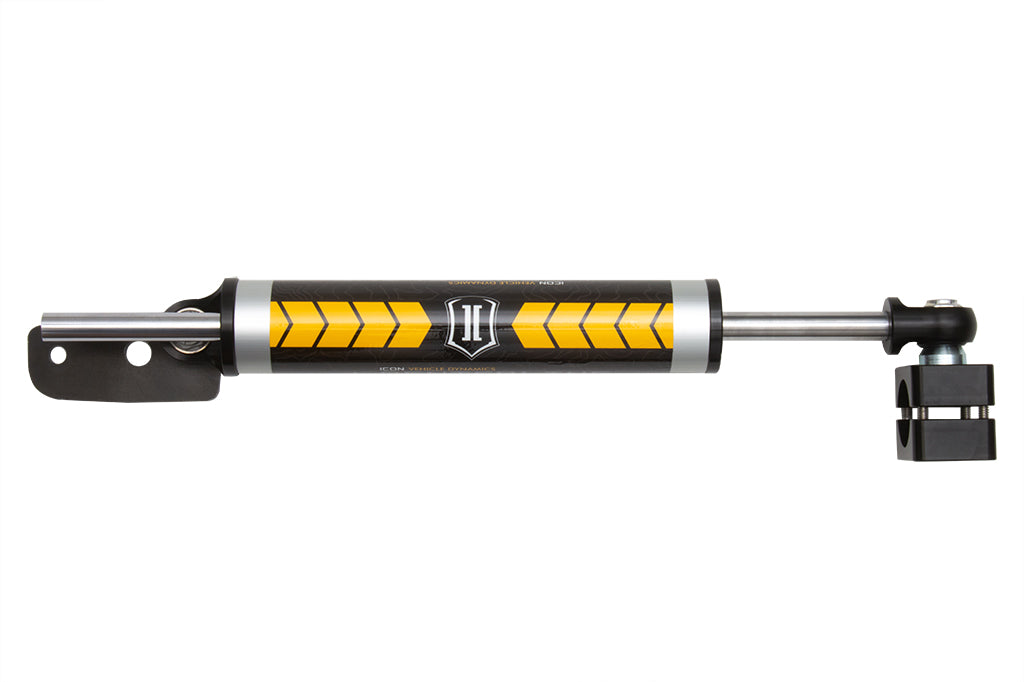

ICON Vehicle Dynamics 22038 - 18-UP JL/20-UP JT CENTERLINE STABILIZER KIT
Couldn't load pickup availability
This stabilizer provides consistent steering damping with a through-shaft design, eliminating the common push/pull sensation associated with traditional stabilizers. Its high-clearance design allows for fitment on ICON suspension lift kits.
Engineered to provide consistent steering damping with a through-shaft design, the ICON Centerline Steering Stabilizer eliminates the common push/pull sensation associated with traditional steering stabilizers. Developed with a wide range of aftermarket Jeep components in mind, this stabilizer features a high clearance design that allows for fitment on all ICON suspension systems. This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range, and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The Centerline Stabilizer mounts using CNC machined billet aluminum 1-3/8” tie rod clamps (1-5/8” clamps available) and the rod end features FK spherical bearings for precise and reliable operation.
Features & Benefits
- Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function
- Increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- 100% bolt-on installation
- Mounts to OE tie rod (1-3/8”)
- Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
- Fully serviceable ICON 2.0 Aluminum Series shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8” chrome plated hardened steel shaft
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Damping | No |
| Add-On Part | 614525 - UNIVERSAL TUBE CLAMP KIT 1.625 |
| Shaft Material | Chrome |
| Cylinder Diameter | 2 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Grade Type | Performance |
| Lower Mount Type | Eyelet |
| Mounting Bracket Included | yes |
| Service Parts | 202006 - 2.0 CENTERLINE STABILIZER REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Steering Stabilizer Configuration | Through-Shaft |
| Title | 18-UP JL/20-UP JT 2.0 CENTERLINE STABILIZER KIT |
| Upper Mount Type | Eyelet |
| Boot Included | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Light Grey |
Installation Guide: Download PDF
