ICON Vehicle Dynamics 22039 - 07-18 JK 2.0 CENTERLINE STABILIZER KIT
Product Availability Request
Fill the form and our team will contact you.
2007-2018 JK THRU SHAFT STABILIZER KIT NON ADJUSTABLE

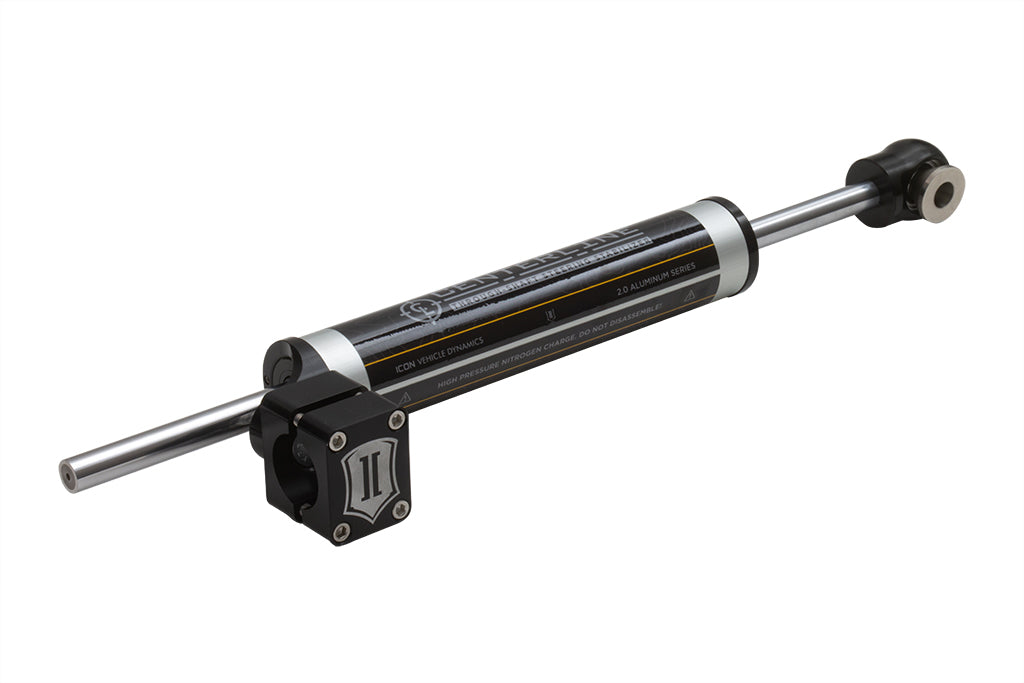

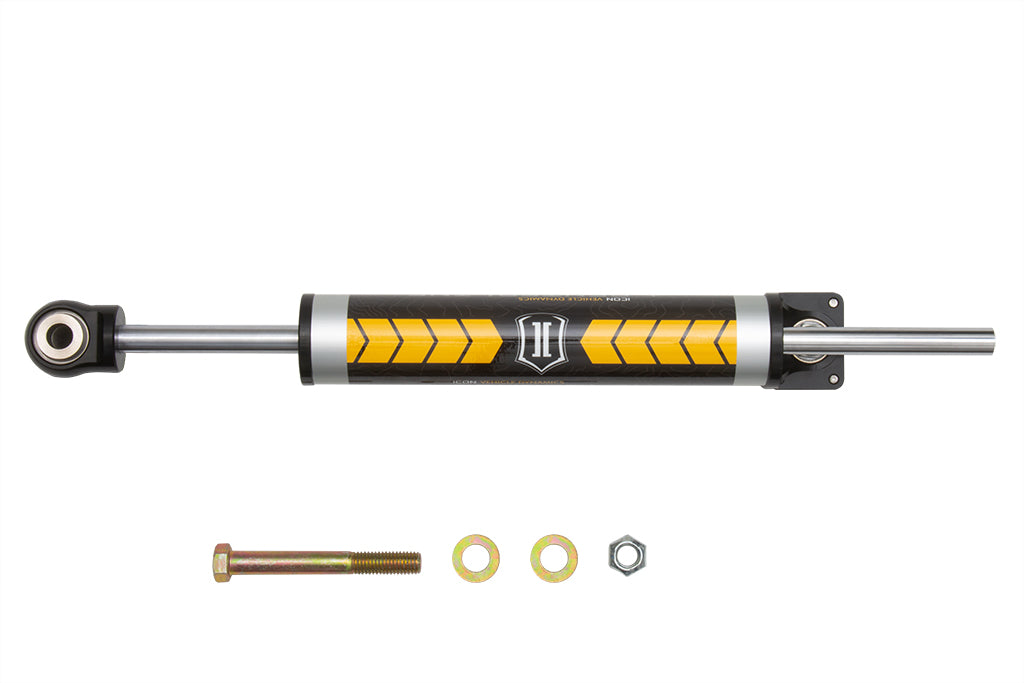

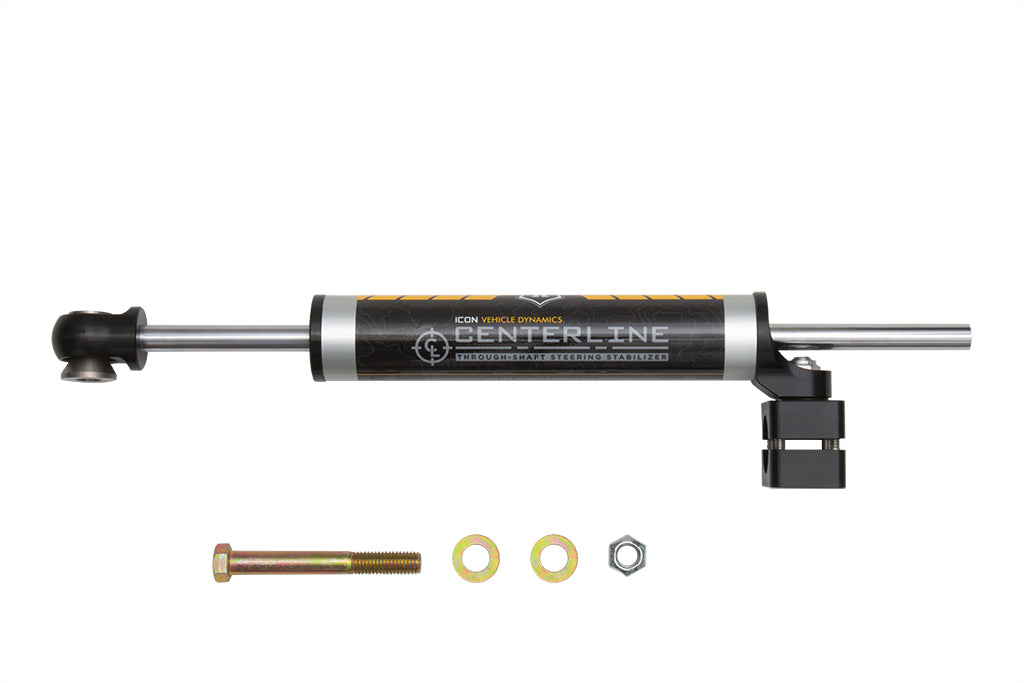

Engineered to provide consistent steering damping with a through-shaft design, the ICON Centerline Steering Stabilizer eliminates the common push/pull sensation associated with traditional steering stabilizers. Developed with a wide range of aftermarket Jeep components in mind, this stabilizer features a high clearance design that allows for fitment on all ICON suspension systems. This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range, and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The Centerline Stabilizer mounts using CNC machined billet aluminum 1-3/8” tie rod clamps (1-5/8” clamps available) and the rod end features FK spherical bearings for precise and reliable operation.
Features
- Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
- 5WT shock oil for consistent suspension damping along a wide temperature range
- FK Rod End bearings for precise function
- Increased steering damping over stock unit
- Provides symmetrical steering feel throughout input range
- 100% bolt-on installation
- Mounts to OE tie rod (1-3/8”)
- Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
- Fully serviceable ICON 2.0 Aluminum Series shock
- 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
- 5/8” chrome plated hardened steel shaft
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Adjustable Damping | No |
| Boot Included | No |
| Lower Mount Type | Eyelet |
| Mounting Bracket Included | yes |
| Service Parts | 202006 - 2.0 CENTERLINE STABILIZER REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Steering Stabilizer Configuration | Through-Shaft |
| Upper Mount Type | Eyelet |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Light Grey |
| Cylinder Diameter | 2 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Grade Type | Performance |
| Add-On Part | 614525 - UNIVERSAL TUBE CLAMP KIT (1-5/8") |
Note: TECH NOTE: If using a heavy duty 1-5/8” aftermarket tie rod, oversized clamp kit (PN: 614525) must be used
Short Description: STEERING STABILIZER
Invoice Description: JK CENTERLINE STABILIZER KIT NON ADJ
Definition: Steering Damper Kit
Installation Guide: Download PDF
Warranty: 1 Year
