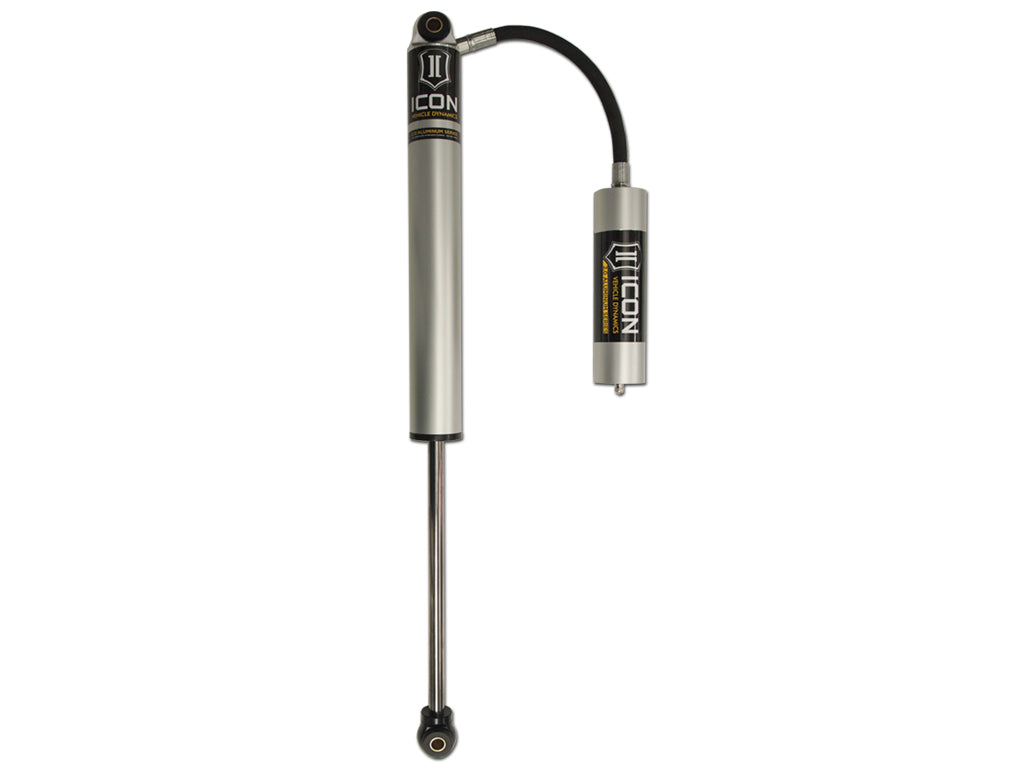

ICON Vehicle Dynamics 36507R - 99-04 FSD 4WD 3-6" FRONT 2.0 VS RR
Couldn't load pickup availability
ICON V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Body Material | Aluminum |
| Boot Included | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | No |
| Color | Gray |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | No |
| External Reservoir | Yes |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Type | Eyelet |
| Maximum Ride Height Raising Distance | 6 IN |
| Minimum Ride Height Raising Distance | 3 IN |
| Mounting Hardware Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Body Diameter | 2 IN |
| Body Color | Gray |
| Adjustable Ride Height | No |
| Adjustable Rebound | No |
| Adjustable Damping | No |
| Adjustable Compression | No |
| Adjustable | No |
| Shaft Diameter | 0.625 IN |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Suspension Type | Spring |
| Title | ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir |
| Upper Mount Type | EYELET |
| Valving Type | Digressive |
| Valving Type | Linear |
| Add-On Part | 39010 - 99-04 FSD DUAL SHOCK MOUNT KIT |
| Material | Aluminum |
| Color | Black |
| Color | Silver |
| Material | Steel |
| Add-On Part | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Cylinder Material | Aluminum |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Material | Chrome |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
