ICON Vehicle Dynamics 44000 - 21-23 BRONCO BILLET REAR LOWER LINK KIT
Couldn't load pickup availability
ICON billet lower links are light, strong, and engineered to improve off-road ride quality. Created with CNC machined 6061 aluminum they feature PTFE-lined rod ends, replaceable nylon rock sliders for protection, and on-vehicle adjustment.

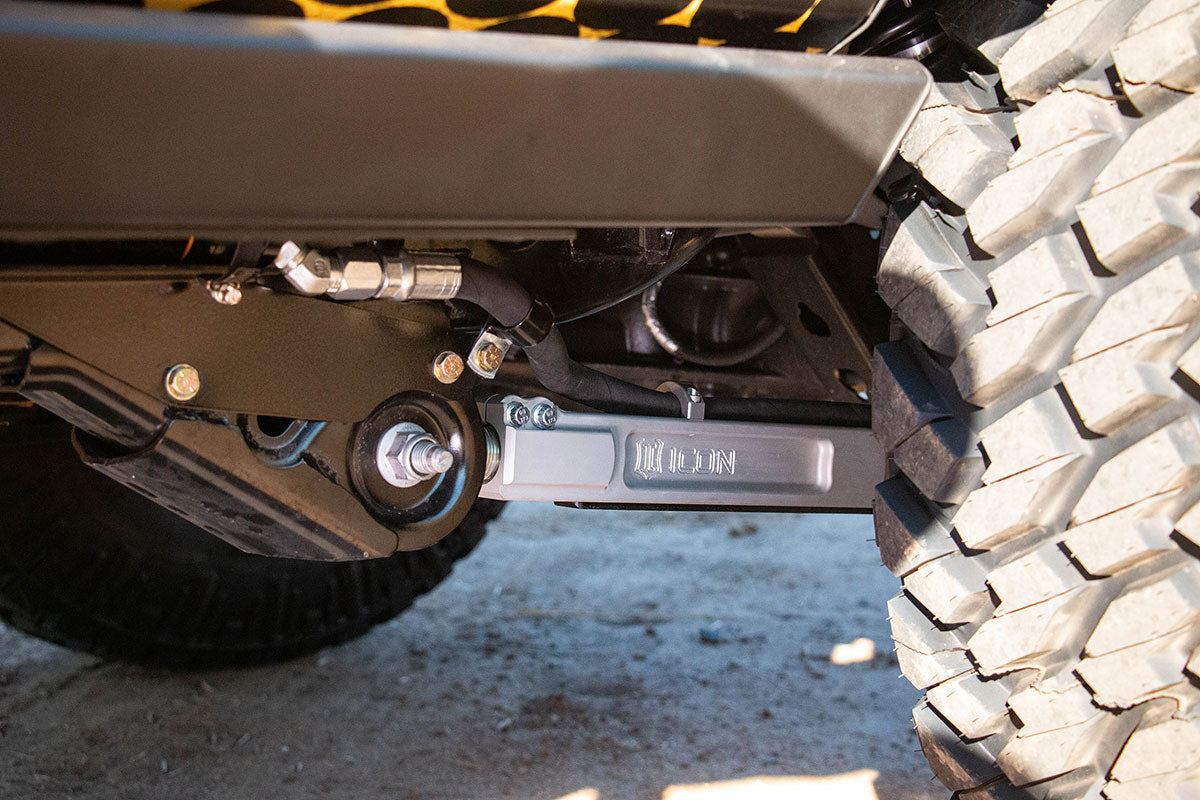

ICON’s billet aluminum rear lower link arms for the 2021-2023 Ford Bronco are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. ICON’s engineering team has also gone a step further in the development of these products by incorporating features such replaceable nylon rock sliders to prevent any hang-ups on the trail. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
Features & Benefits
- On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon Rock Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Maintenance free, dual durometer bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | Yes |
| Material | Aluminium |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| Construction | Billet |
| Control Arm Construction | Billet |
| Bushing Color | Black |
| Title | ICON 2021-2023 Ford Bronco, Rear Billet Lower Link Kit |
| Grease Fitting Included | No |
| Mounting Bracket Included | No |
| Quantity | Pair |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Control Arm Color | Silver |
| Suspension Type | Spring |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Assembled | Yes |
| Reinforced | Yes |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Adjustable Control Arm | Yes |
| Attachments Included | Yes |
| Set | Yes |
| Bushing Material | Rod End Bearing |
| Bushing Material | Polyurethane |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
